Module-Door-Driver C5 (Standard) Connector End View (D3818E)

Harness-Family: Door_Front_Driver

Color: BLUE

Gender: FEMALE

Part Number: 3-2177198-1_1-968562-2

Part Description: INNER HOUSING BLACK

Connector No: D3818E

Option: Standard

Repair Kit Part Number: 68156140AA

Cavity Count: 10

Fig 1: Module-Door-Driver C5 Connector End View (Standard)

Courtesy of CHRYSLER

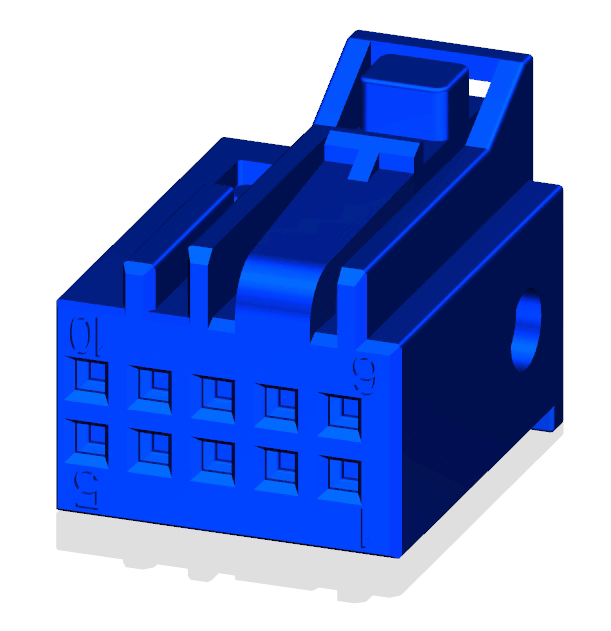

Fig 2: Module-Door-Driver C5 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Door-Driver C5 Wire Insertion View (Standard)

Courtesy of CHRYSLER

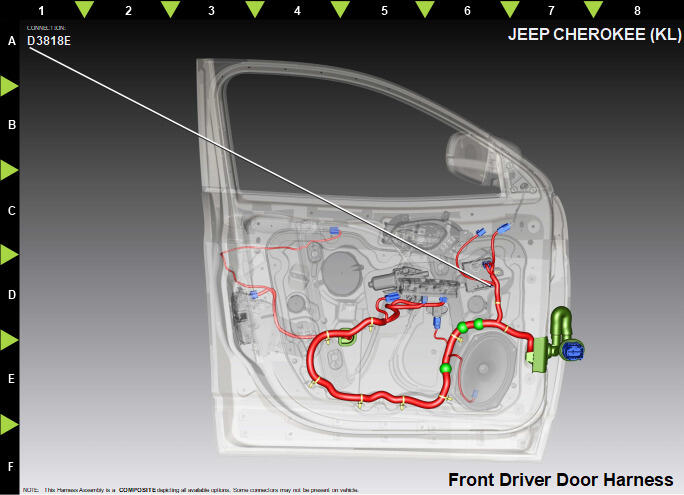

Fig 4: Module-Door-Driver C5 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	D903	GN/BU	0.50	LIN BUS	N/A
2	D512	GY/YE	0.35	LIN BUS DOOR SW MOD RTN	N/A
3	M33	YE/BN	0.35	DOOR AMBIENT LAMP FEED DRIV	N/A
4	N0	NA	0	NO CONNECT	N/A
5	Q291	YE/VT	0.50	DOOR CNTRL MOD (DCM) FEED TO DOOR SW MOD (DSM)	N/A
6	G200	VT/BN	0.35	MEMORY SELECT SWITCH MUX	N/A
7	G920	VT/YE	0.35	MEMORY SELECT SWITCH RETURN	N/A
8	N0	NA	0	NO CONNECT	N/A
9	M34	YE/OG	0.35	DOOR LIGHTING RTN DRIV	N/A
10	N0	NA	0	NO CONNECT	N/A
