Module-Door-Passenger C2 (Standard) Connector End View (D3819B)

Harness-Family: Mirror_Pass

Color: BLACK

Gender: FEMALE

Part Number: 1-2177198-1_1-968562-2

Part Description: Not Available

Connector No: D3819B

Option: Standard

Repair Kit Part Number: 68156140AA

Cavity Count: 10

Fig 1: Module-Door-Passenger C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Door-Passenger C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Door-Passenger C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

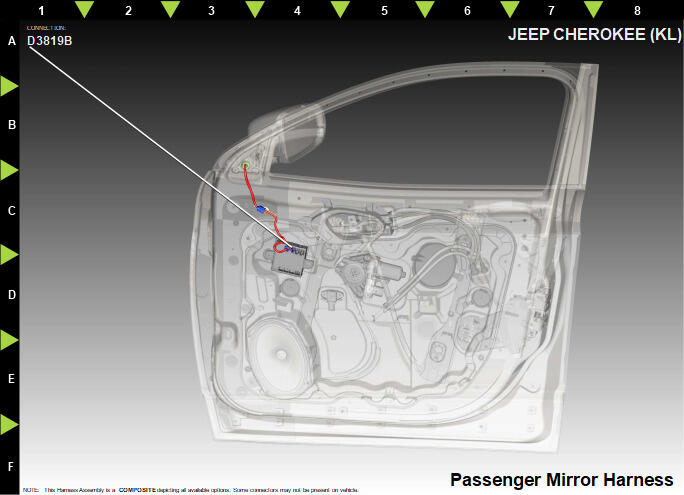

Fig 4: Module-Door-Passenger C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P695	YE	22	PASSENGER MIRROR FOLD DRIVER	N/A
2	P692	BU	22	PASSENGER MIRROR UNFOLD DRIVER	N/A
3	C170	BK	22	PASSENGER MIRROR HEATER RETURN	N/A
4	C17	BK	22	PASSENGER MIRROR HEATER DRIVER	N/A
6	P72	WH	22	PASSENGER MIRROR VERTICAL DRIVER	EXCEPT MEMORY
6	P72	DG	22	PASSENGER MIRROR VERTICAL DRIVER	MEMORY
7	P70	OG	22	PASSENGER MIRROR COMMON DRIVER	EXCEPT MEMORY
7	P70	WH	22	PASSENGER MIRROR COMMON DRIVER	MEMORY
8	P74	RD	22	PASSENGER MIRROR HORIZONTAL DRIVER	EXCEPT MEMORY
8	P74	DB	22	PASSENGER MIRROR HORIZONTAL DRIVER	MEMORY
9	P502	GY/BK	22	PASSENGER MIRROR TURN SIGNAL DRIVER	N/A
10	P595	GY/WH	22	PASSENGER MIRROR TURN SIGNAL LAMP RETURN	N/A
