Module-Drive Train Control C1 (Standard) Connector End View (D3872A)

Harness-Family: UNDERBODY

Color: GREEN

Gender: FEMALE

Part Number: 7283-6453-60

Part Description: KAIZEN YESC 1.5MM SUB ASSEMBLY

Connector No: D3872A

Option: Standard

Repair Kit Part Number: 68057297AA

Cavity Count: 16

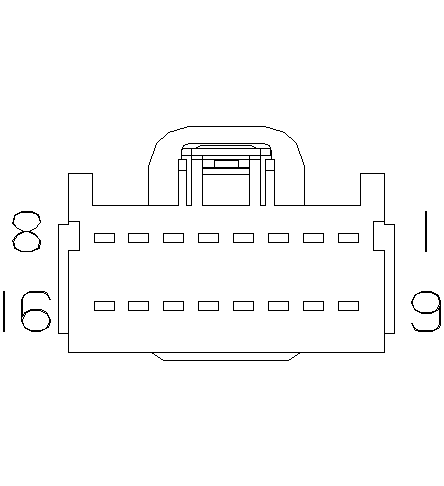

Fig 1: Module-Drive Train Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

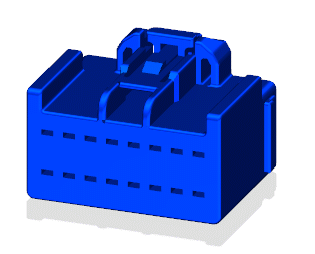

Fig 2: Module-Drive Train Control C1 Isometric View (Standard)

Courtesy of CHRYSLER

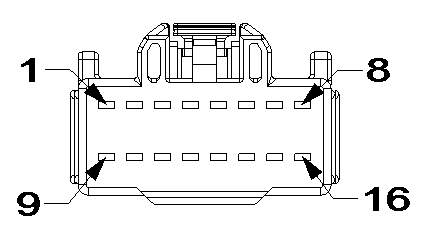

Fig 3: Module-Drive Train Control C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

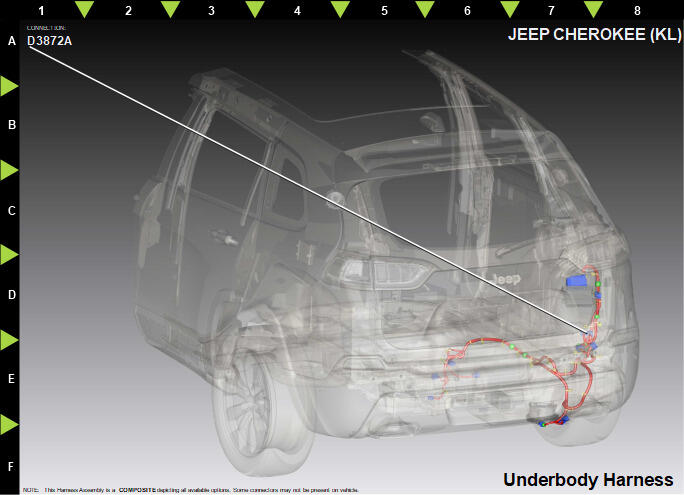

Fig 4: Module-Drive Train Control C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	N0	NA	0	NO CONNECT	ACTIVE DRIVE I
1	D442	WH/DB	0.50	CAN C (+)	ACTIVE DRIVE II
2	N0	NA	0	NO CONNECT	ACTIVE DRIVE I
2	D443	WH/OG	0.50	CAN C (-)	ACTIVE DRIVE II
3	N0	NA	0	NO CONNECT	N/A
4	D302	DG	0.35	CAN C (-)	N/A
5	N0	NA	0	NO CONNECT	N/A
6	K604	BN/BG	0.50	DRIVETRAIN SIGNAL	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	D442	WH/DB	0.50	CAN C (+)	N/A
10	D443	WH/OG	0.50	CAN C (-)	N/A
11	K504	BN	0.50	DRIVETRAIN 5 VOLT SUPPLY	N/A
12	D301	WH	0.35	CAN C (+)	N/A
13	F946	PK/GN	0.35	FUSED IGNITION RUN/START CONTROL OUTPUT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	K594	BN/GN	0.50	DRIVETRAIN SENSOR RETURN	N/A
16	N0	NA	0	NO CONNECT	N/A
