Module-Electronic Overhead (Standard) Connector End View (D6627A)

Harness-Family: Overhead

Color: BLACK

Gender: FEMALE

Part Number: 34791-0080000

Part Description: Not Available

Connector No: D6627A

Option: Standard

Repair Kit Part Number: 68535908AA

Cavity Count: 8

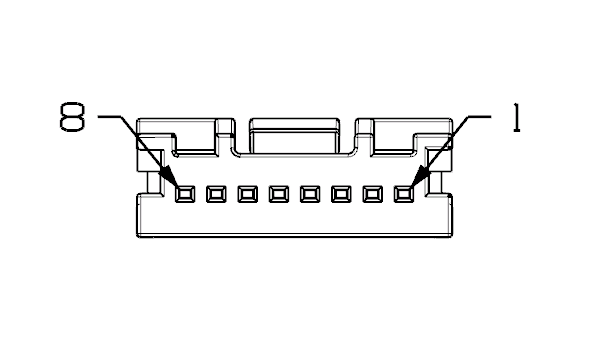

Fig 1: Module-Electronic Overhead Connector End View (Standard)

Courtesy of CHRYSLER

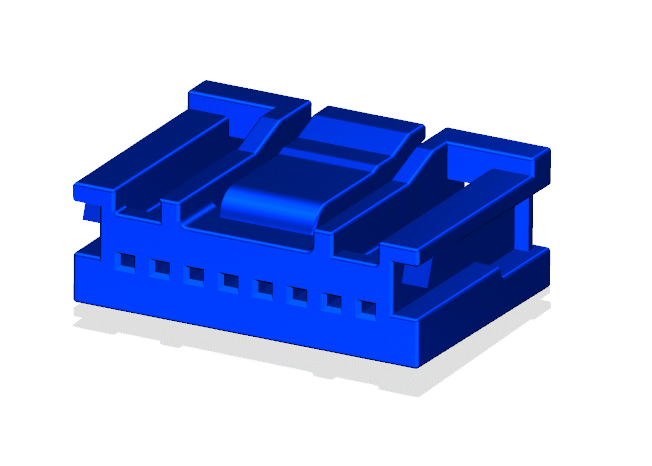

Fig 2: Module-Electronic Overhead Isometric View (Standard)

Courtesy of CHRYSLER

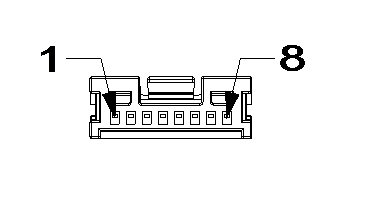

Fig 3: Module-Electronic Overhead Wire Insertion View (Standard)

Courtesy of CHRYSLER

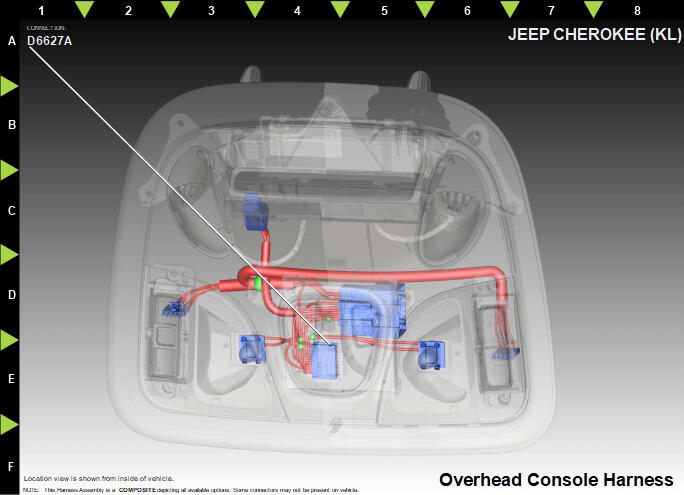

Fig 4: Module-Electronic Overhead Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A	M59	YE/GN	0.75	COURTESY LAMP FEED	N/A
B	M59	RD	0.75	COURTESY LAMP FEED	N/A
C	E12	OG/GY	0.75	PANEL LAMPS DRIVER	N/A
D	M20	YE/BU	0.75	DOME LAMP CONTROL	N/A
E	M108	YE/DB	0.75	AMBIENT LIGHTING CONTROL	N/A
F	Z924	WH	0.75	GROUND	N/A
G	Z924	GY	0.75	GROUND	N/A
H	Z924	BK	0.75	GROUND	N/A
