Module-Fuel Pump C2 (Standard) Connector End View (D6602B)

Harness-Family: Body

Color: BLUE

Gender: FEMALE

Part Number: 15493509

Part Description: 090 CONNECTOR ASSEMBLY

Connector No: D6602B

Option: Standard

Repair Kit Part Number: 68018952AA

Cavity Count: 2

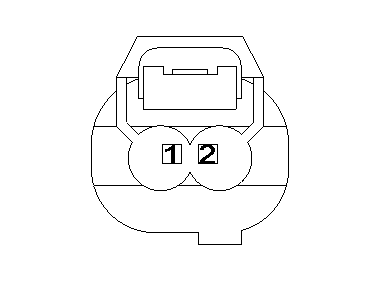

Fig 1: Module-Fuel Pump C2 Connector End View (Standard)

Courtesy of CHRYSLER

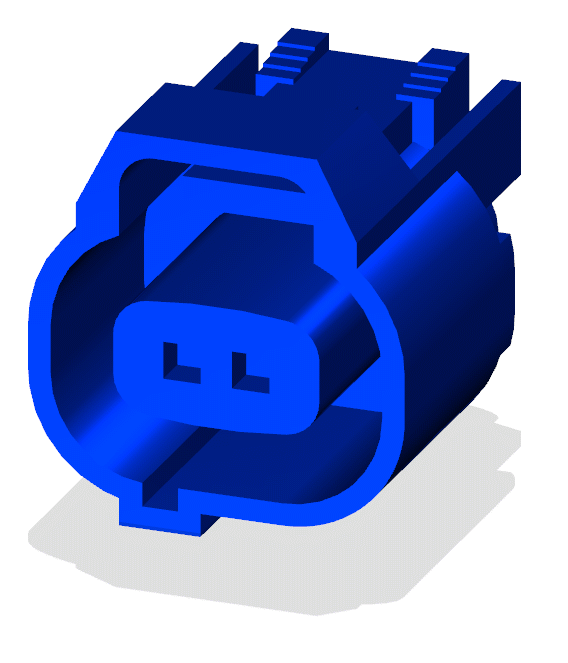

Fig 2: Module-Fuel Pump C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Fuel Pump C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

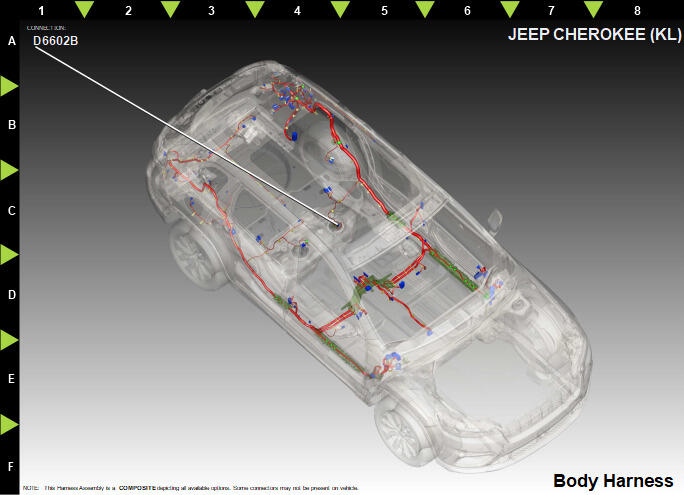

Fig 4: Module-Fuel Pump C2 Component Location View (Standard)

Courtesy of CHRYSLER
