Module-Power Liftgate C1 (Standard) Connector End View (D3839A)

Harness-Family: Body

Color: BLACK

Gender: FEMALE

Part Number: 1924667-1

Part Description: Not Available

Connector No: D3839A

Option: Standard

Repair Kit Part Number: 68307299AA

Cavity Count: 13

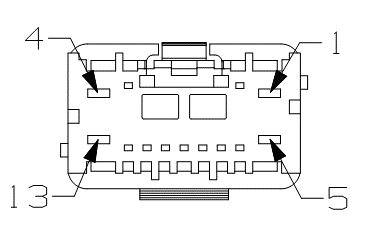

Fig 1: Module-Power Liftgate C1 Connector End View (Standard)

Courtesy of CHRYSLER

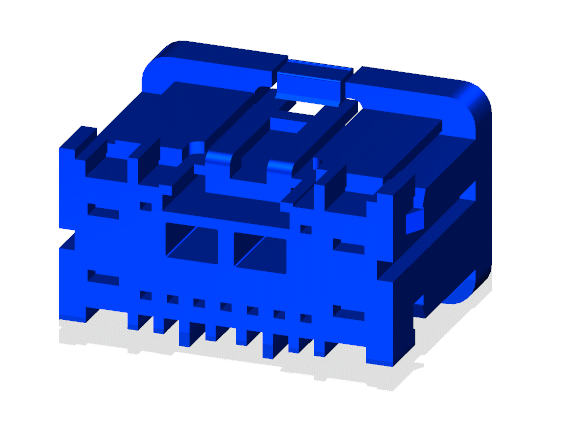

Fig 2: Module-Power Liftgate C1 Isometric View (Standard)

Courtesy of CHRYSLER

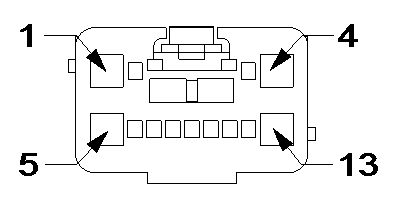

Fig 3: Module-Power Liftgate C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

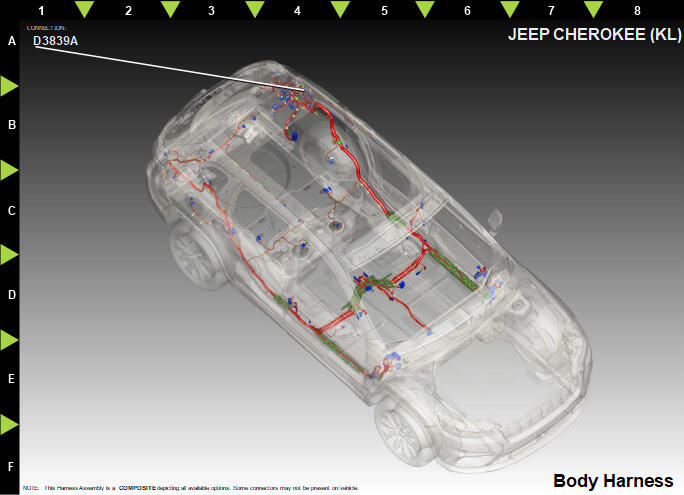

Fig 4: Module-Power Liftgate C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	Q89	BG/OG	2.0	LIFTGATE CLOSE DRIVER	N/A
2	N0	NA	0	NO CONNECT	N/A
3	N0	NA	0	NO CONNECT	N/A
4	Z923	BK	2.0	GROUND	N/A
5	Q88	BG/BN	2.0	LIFTGATE OPEN DRIVER	N/A
6	Q203	BG	0.13	POSITION SENSOR SUPPLY	N/A
7	Q204	DG	0.13	POSITION SENSOR SIGNAL 1	N/A
8	Q205	DB	0.13	POSITION SENSOR SIGNAL 2	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
