Module-Power-Blower Motor-Front C1 (Standard) Connector End View (D3881A)

Harness-Family: HVAC

Color: BLACK

Gender: FEMALE

Part Number: 1-1418507-5

Part Description: Not Available

Connector No: D3881A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

Fig 1: Module-Power-Blower Motor-Front C1 Connector End View (Standard)

Courtesy of CHRYSLER

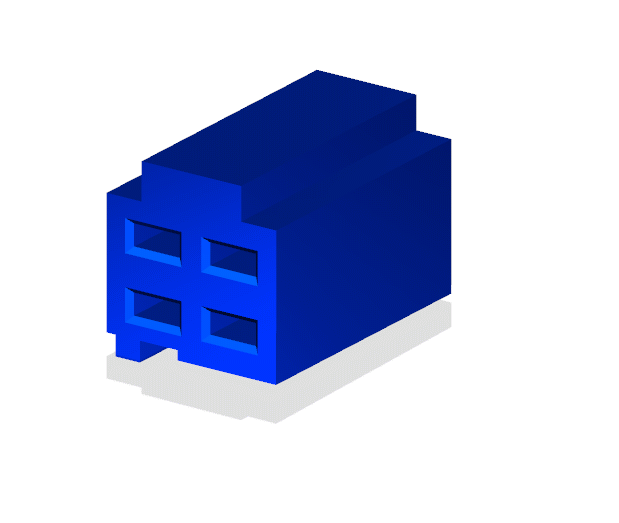

Fig 2: Module-Power-Blower Motor-Front C1 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Power-Blower Motor-Front C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

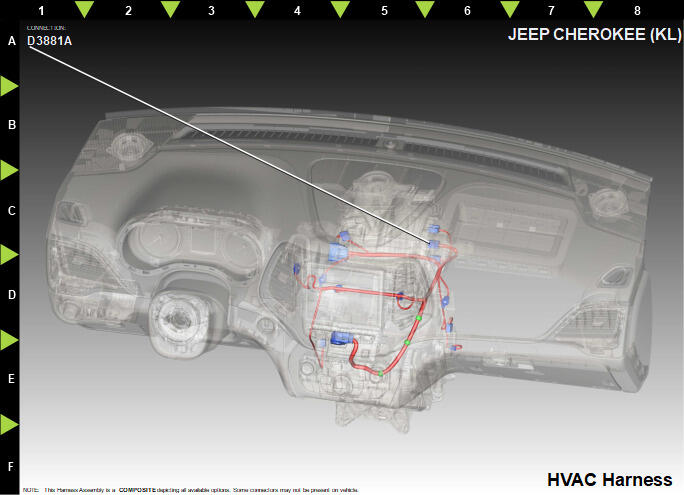

Fig 4: Module-Power-Blower Motor-Front C1 Component Location View (Standard)

Courtesy of CHRYSLER
