Module-Powertrain Control C2 (2.0L) Connector End View (D3821B)

Harness-Family: ENGINE

Color: BLACK

Gender: FEMALE

Part Number: 34993-7004

Part Description: Not Available

Connector No: D3821B

Option: 2.0L

Repair Kit Part Number: Terminal Kit Only

Cavity Count: 103

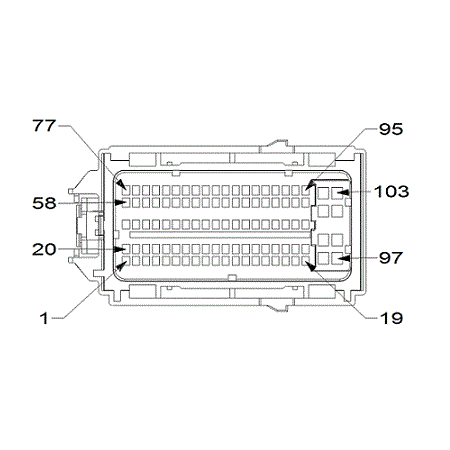

Fig 1: Module-Powertrain Control C2 Connector End View (2.0L)

Courtesy of CHRYSLER

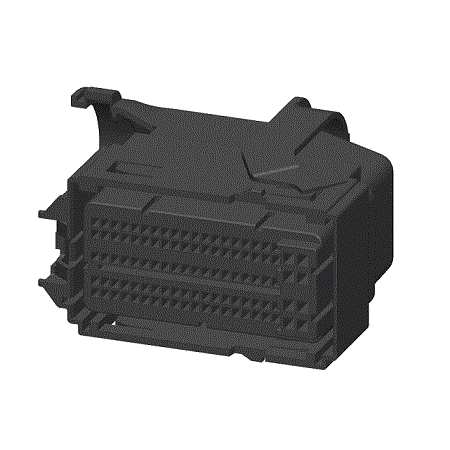

Fig 2: Module-Powertrain Control C2 Isometric View (2.0L)

Courtesy of CHRYSLER

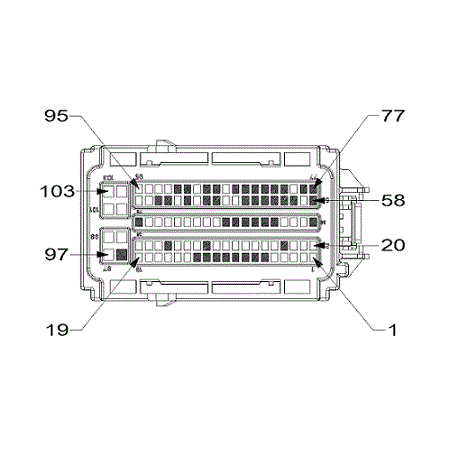

Fig 3: Module-Powertrain Control C2 Wire Insertion View (2.0L)

Courtesy of CHRYSLER

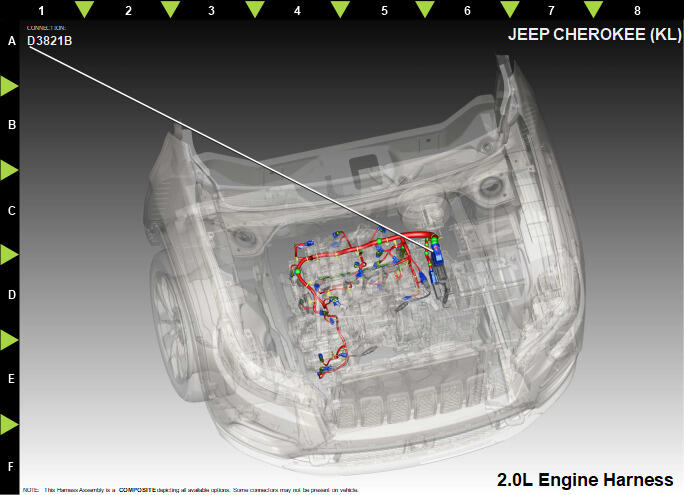

Fig 4: Module-Powertrain Control C2 Component Location View (2.0L)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K18	DB/OG	0.75	COIL CONTROL 3	N/A
2	K17	DB/BG	0.75	COIL CONTROL 2	N/A
3	K19	DB/DG	0.75	COIL CONTROL 1	N/A
4	K932	DB/BU	0.35	TEMP SIGNAL	N/A
5	K683	DB/GY	0.35	EGR SIGNAL	N/A
14	K2	VT/OG	0.35	ECT SIGNAL	N/A
15	K915	BN/WH	0.35	SENSOR GROUND	N/A
16	K22	BN/OG	0.35	TP 1 SIGNAL	N/A
17	K922	BN/DB	0.35	TP SENSOR RETURN	N/A
18	K122	BN/DG	0.35	TP 2 SIGNAL	N/A
19	F855	PK/YE	0.35	5 VOLT SUPPLY	N/A
20	K15	DB/GY	0.75	COIL CONTROL 4	N/A
21	K926	DB/GY	0.35	CRANKCASE SENSOR SIGNAL	N/A
22	K359	YE/BN	0.35	FUEL PRESSURE SIGNAL 1	N/A
24	K1	VT/BN	0.35	MAP SIGNAL	N/A
25	G6	VT/GY	0.35	OIL PRESSURE SIGNAL	N/A
26	G224	VT/YE	0.35	EOT SIGNAL	N/A
27	K137	DB/OG	0.35	WASTEGATE POSITION SIGNAL	N/A
28	K141	DB/YE	0.50	O2 1/2 SIGNAL	N/A
29	K21	DB/GN	0.35	IAT SIGNAL	N/A
30	K441	DB/BN	0.35	CMP SENSOR SIGNAL 1/2	N/A
32	F856	YE/PK	0.35	5 VOLT SUPPLY	N/A
33	K900	DB/DG	0.35	SENSOR GROUND	N/A
34	K44	DB/GY	0.35	CMP SENSOR SIGNAL 1/1	N/A
36	K24	BN/BU	0.75	CKP SIGNAL	N/A
37	K925	DB/GY	0.35	CKP GROUND	N/A
38	K914	BN/WH	0.35	SENSOR GROUND	N/A
40	K904	DB/DG	0.50	O2 RETURN (DOWNSTREAM)	N/A
42	K120	DG	0.35	INLET AIR TEMPERATURE SENSOR SIGNAL	N/A
49	K89	BN/GN	0.50	O2 1/1 POSITIVE CURRENT CONTROL	N/A
50	K103	BN/BU	0.50	O2 1/1 PUMP CELL CURRENT TRIM	N/A
51	K41	DB/BU	0.50	O2 1/1 SIGNAL	N/A
52	K902	BN/DG	0.50	O2 RETURN (UPSTREAM)	N/A
53	K42	DB/YE	0.35	KS 1 SIGNAL	N/A
54	K942	BN/GN	0.35	KS 1 RETURN	N/A
55	K242	BN/WH	0.35	KS 2 SIGNAL	N/A
56	K924	WH/BN	0.35	KS 2 RETURN	N/A
59	K179	BN/GY	0.35	FUEL PRESSURE SIGNAL 2	N/A
66	K918	BN/DG	0.35	SENSOR GROUND	N/A
67	K612	YE/BN	0.50	INJECTOR 2 LOW SIDE CONTROL	N/A
70	G62	VT/YE	0.35	OIL PRESSURE SOL CONTROL	N/A
72	K76	BN/WH	0.35	CONTROL	N/A
75	K276	DB/WH	0.35	CONTROL	N/A
76	K150	BN/GN	0.75	TURBOCHARGER SURGE VALVE CONTROL	N/A
79	K614	WH/BN	0.50	INJECTOR 4 LOW SIDE CONTROL	N/A
86	K613	GY/BN	0.50	INJECTOR 3 LOW SIDE CONTROL	N/A
89	K611	OG/BN	0.50	INJECTOR 1 LOW SIDE CONTROL	N/A
92	K12	BN/DB	0.50	INJECTOR 2 CONTROL	N/A
93	K13	BN/BU	0.50	INJECTOR 3 CONTROL	N/A
94	K11	BN/YE	0.50	INJECTOR 1 CONTROL	N/A
95	K14	BN/BG	0.50	INJECTOR 4 CONTROL	N/A
97	K448	BG/OG	0.75	ETC MOTOR (-)	N/A
98	K299	BN/WH	0.50	O2 1/2 HEATER CONTROL	N/A
99	K447	BG/YE	0.75	ETC MOTOR (+)	N/A
100	K677	VT	0.50	EGR MOTOR (+)	N/A
101	K139	BN/BG	0.50	WASTEGATE SOLENOID RETURN	N/A
102	K678	BG/VT	0.50	EGR MOTOR (-)	N/A
103	K138	DB/VT	0.50	WASTEGATE SOL CONTROL	N/A
