Motor-Seat Adjuster-Driver Horizontal (Memory) Connector End View (D3024A)

Harness-Family: Seat_Cshn_Driver

Color: BLACK

Gender: FEMALE

Part Number: 1379217-3_1379218-2

Part Description: Not Available

Connector No: D3024A

Option: MEMORY

Repair Kit Part Number: Not Available

Cavity Count: 5

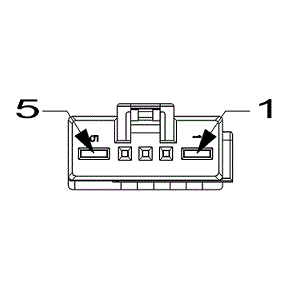

Fig 1: Motor-Seat Adjuster-Driver Horizontal Connector End View (MEMORY)

Courtesy of CHRYSLER

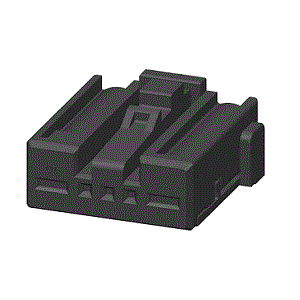

Fig 2: Motor-Seat Adjuster-Driver Horizontal Isometric View (MEMORY)

Courtesy of CHRYSLER

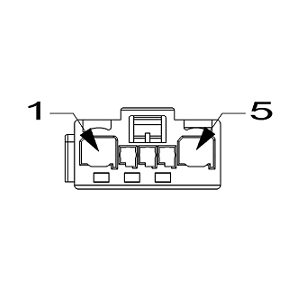

Fig 3: Motor-Seat Adjuster-Driver Horizontal Wire Insertion View (MEMORY)

Courtesy of CHRYSLER

Fig 4: Motor-Seat Adjuster-Driver Horizontal Component Location View (MEMORY)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	P117	GN/BU	0.75	DRIVER SEAT HORIZONTAL REARWARD DRIVER	LHD
1	P115	GN	0.75	DRIVER SEAT HORIZONTAL FORWARD DRIVER	RHD
2	G491	VT/GY	0.35	DRIVER SEAT HORIZONTAL SENSOR GROUND	N/A
3	N0	NA	0	NO CONNECT	N/A
4	G401	VT/GN	0.35	DRIVER SEAT HORIZONTAL POSITION SENSE	N/A
5	P115	GN	0.75	DRIVER SEAT HORIZONTAL FORWARD DRIVER	LHD
5	P117	GN/BU	0.75	DRIVER SEAT HORIZONTAL REARWARD DRIVER	RHD
