Relay-Inrush Current C1 (3.2L) Connector End View (D2807A)

Harness-Family: ENGINE

Color: DARK GRAY

Gender: FEMALE

Part Number: 7283-1015-10

Part Description: Not Available

Connector No: D2807A

Option: 3.2L

Repair Kit Part Number: Terminal Kits Only

Cavity Count: 1

Fig 1: Relay-Inrush Current C1 Connector End View (3.2L)
GCWD1079600Courtesy of CHRYSLER
Fig 2: Relay-Inrush Current C1 Isometric View (3.2L)
GCWD1091602Courtesy of CHRYSLER

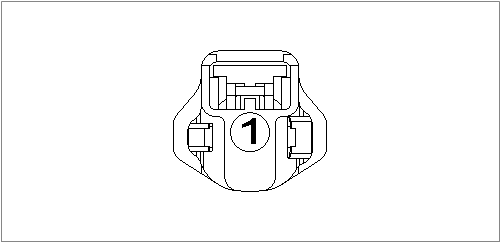

Fig 3: Relay-Inrush Current C1 Wire Insertion View (3.2L)
GCWD1009471Courtesy of CHRYSLER

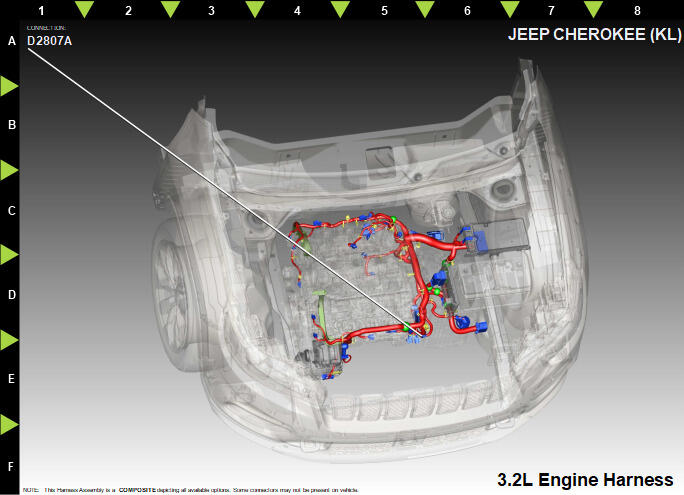

Fig 4: Relay-Inrush Current C1 Component Location View (3.2L)
GCWD1322368Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 T760 DG/BG 0.75 STOP/START RELAY CONTROL N/A
