Relay-Inrush Current C3 (3.2L) Connector End View (D2807C)

Harness-Family: Battery_AUX_Positive

Color: NA

Gender: FEMALE

Part Number: 13801362

Part Description: Not Available

Connector No: D2807C

Option: 3.2L

Repair Kit Part Number: Not Serviced

Cavity Count: 1

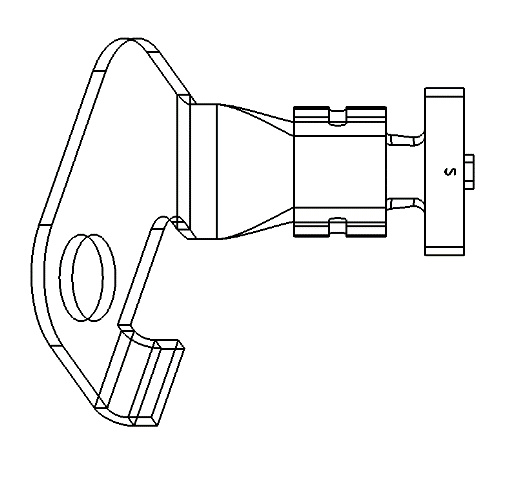

Fig 1: Relay-Inrush Current C3 Connector End View (3.2L)

Courtesy of CHRYSLER

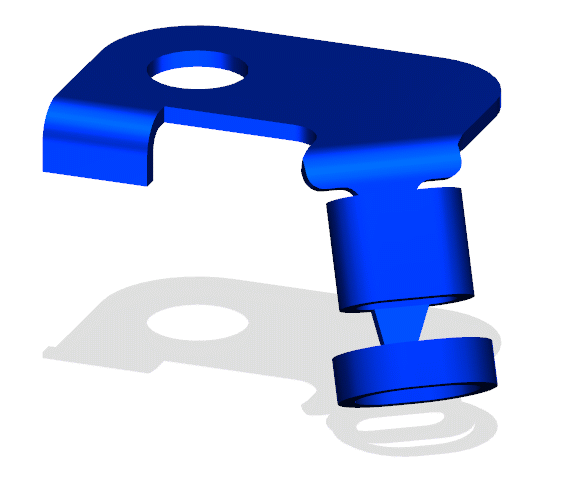

Fig 2: Relay-Inrush Current C3 Isometric View (3.2L)

Courtesy of CHRYSLER

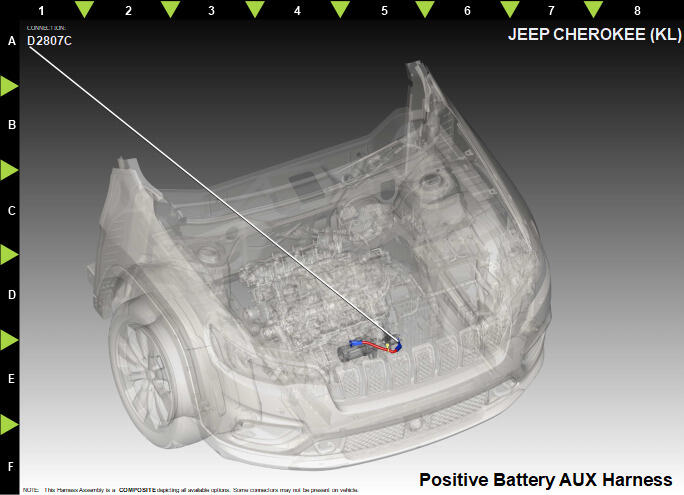

Fig 3: Relay-Inrush Current C3 Component Location View (3.2L)

Courtesy of CHRYSLER
