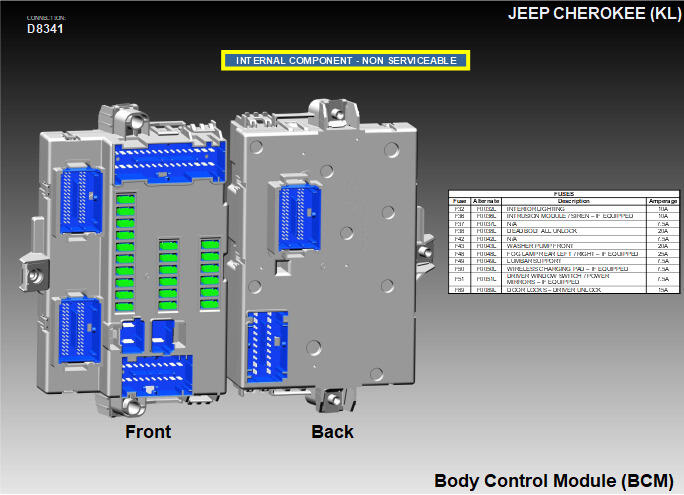

Relay-Rear Washer Pump (Standard) Connector End View (D8341)
Harness-Family: Mod_BCM
Color: NA
Gender: FEMALE
Part Number: NON-SERVICEABLE-PCB
Part Description: Not Available
Connector No: D8341
Option: Standard
Repair Kit Part Number: Not Serviced
Cavity Count: N/A
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 30 | W22 | INTERNAL | NA | RELAY CTRL REAR WASHER PUMP | N/A |
| 85 | W26 | INTERNAL | NA | REAR WIPER SWITCH MUX | N/A |
| 86 | A98 | INTERNAL | NA | FUSED B(+) | N/A |
| 87 | A98 | INTERNAL | NA | FUSED B(+) | N/A |
| 87A | W117 | INTERNAL | NA | WASHER PUMP RELAY N/C OUTPUT | N/A |
