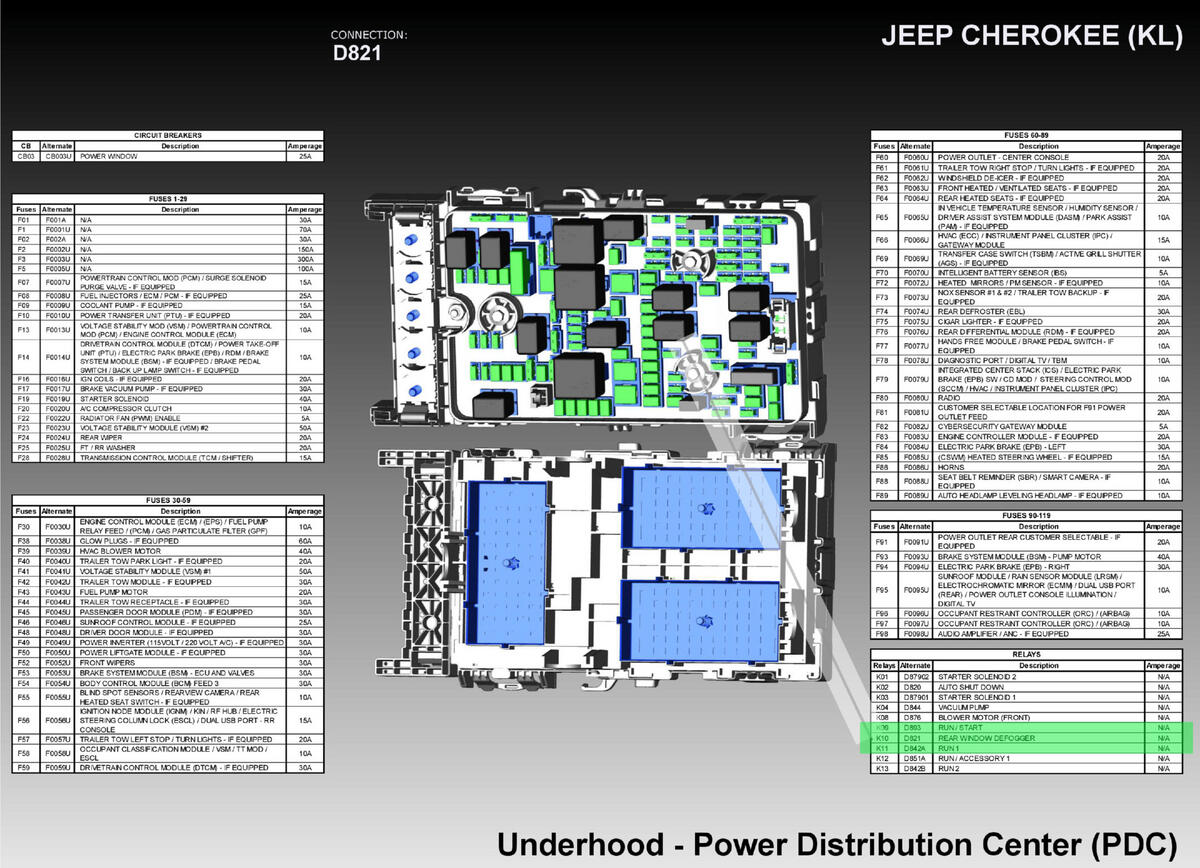

Relay-Rear Window Defogger (Standard) Connector End View (D821)
Harness-Family: PDC_Underhood
Color: NA
Gender: MALE
Part Number: Relay_Micro
Part Description: Not Available
Connector No: D821
Option: Standard
Repair Kit Part Number: See StarParts
Cavity Count: 5
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option |
|---|---|---|---|---|---|
| 30 | A0 | INTERNAL | NA | FUSED B(+) | N/A |
| 85 | F721 | INTERNAL | NA | IGNITION SWITCH OUTPUT (RUN) | N/A |
| 86 | C115 | INTERNAL | NA | DEFOGGER RELAY CONTROL | N/A |
| 87 | C515 | INTERNAL | NA | REAR WINDOW DEFOGGER RELAY OUTPUT | N/A |
