Sensor-Rear Drive Pressure (Standard) Connector End View (D2329A)

Harness-Family: UNDERBODY

Color: BLACK

Gender: FEMALE

Part Number: 13602480

Part Description: Not Available

Connector No: D2329A

Option: Standard

Repair Kit Part Number: 68199259AA

Cavity Count: 3

Fig 1: Sensor-Rear Drive Pressure Connector End View (Standard)
GCWD1079493Courtesy of CHRYSLER

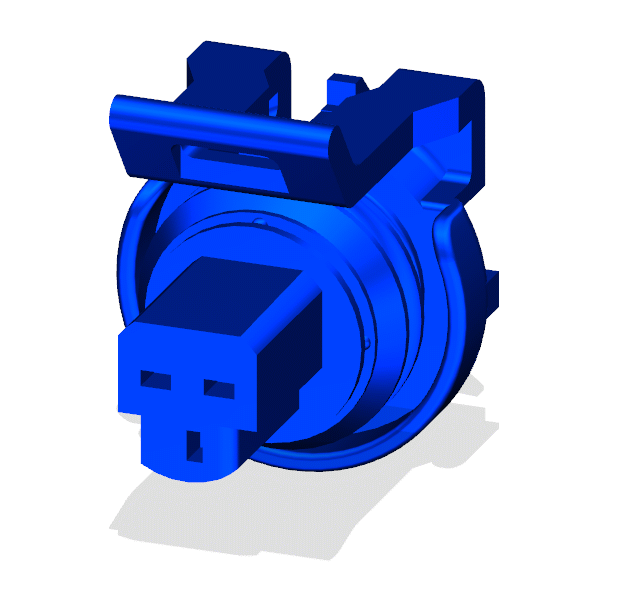

Fig 2: Sensor-Rear Drive Pressure Isometric View (Standard)
GCWD1084703Courtesy of CHRYSLER
Fig 3: Sensor-Rear Drive Pressure Wire Insertion View (Standard)
GCWD1006883Courtesy of CHRYSLER

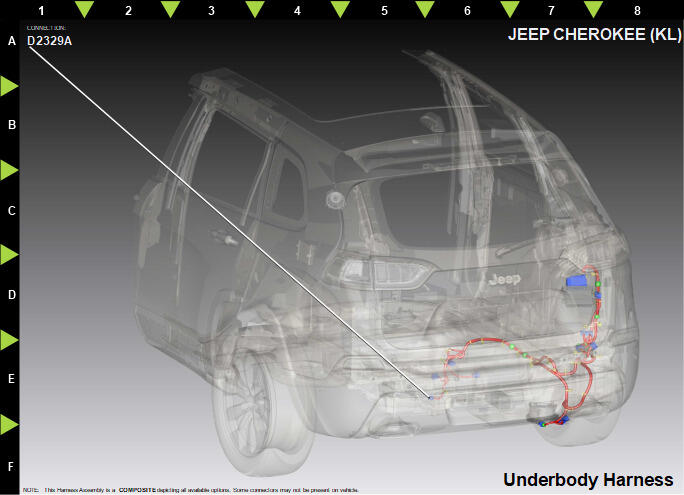

Fig 4: Sensor-Rear Drive Pressure Component Location View (Standard)
GCWD1322570Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K594 BN/GN 0.50 DRIVETRAIN SENSOR RETURN N/A
2 K504 BN 0.50 DRIVETRAIN 5 VOLT SUPPLY N/A
3 K604 BN/BG 0.50 DRIVETRAIN SIGNAL N/A
