Fuse Array F5 100A (Standard) Connector End View (F0005U)

Harness-Family: PDC_Underhood

Color: NA

Gender: FEMALE

Part Number: Fuse-Midi-Mega

Part Description: Not Available

Connector No: F0005U

Option: Standard

Repair Kit Part Number: See StarParts

Cavity Count: 2

Fig 1: Fuse Array F5 100a Connector End View (Standard)
GCWD1079486Courtesy of CHRYSLER

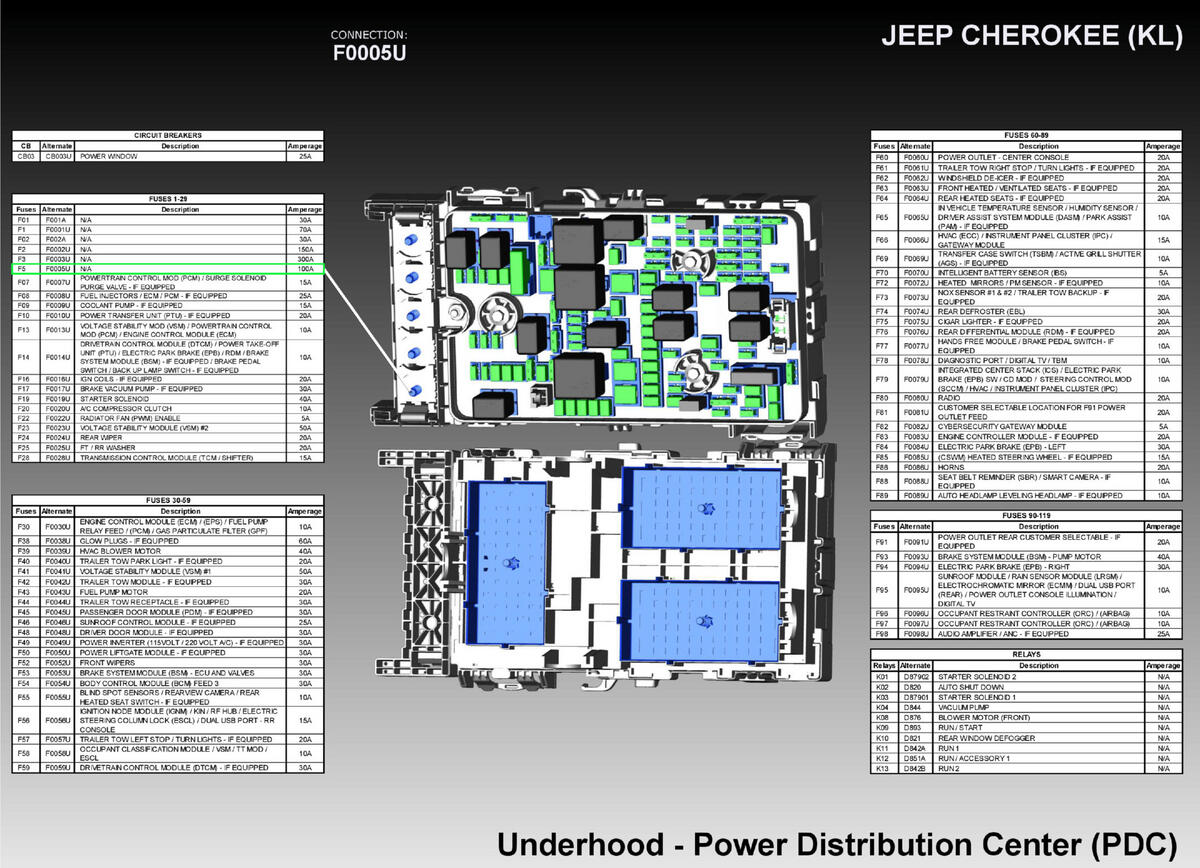

Fig 2: Fuse Array F5 100a Component Location View (Standard)
GCWD1321985Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 A0 INTERNAL NA FUSED B(+) N/A
2 A958 INTERNAL NA FUSED B(+) N/A
