Switch-Memory Set (Standard) Connector End View (D2261A)

Harness-Family: Door_Driver_2

Color: BLACK

Gender: FEMALE

Part Number: 90156-0144

Part Description: Not Available

Connector No: D2261A

Option: Standard

Repair Kit Part Number: Not Available

Cavity Count: 4

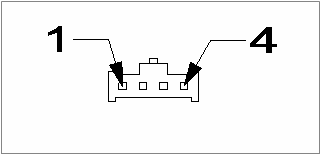

Fig 1: Switch-Memory Set Connector End View (Standard)

Courtesy of CHRYSLER

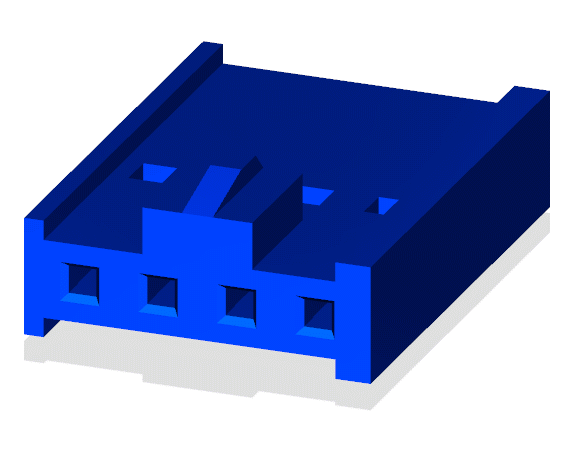

Fig 2: Switch-Memory Set Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Switch-Memory Set Wire Insertion View (Standard)

Courtesy of CHRYSLER

Fig 4: Switch-Memory Set Component Location View (Standard)

Courtesy of CHRYSLER
