Module-Body Control C2 (Standard) Connector End View (D2762B)

Harness-Family: Dash

Color: BLUE

Gender: FEMALE

Part Number: 4540315_4545100

Part Description: Not Available

Connector No: D2762B

Option: Standard

Repair Kit Part Number: 68404942AA

Cavity Count: 2

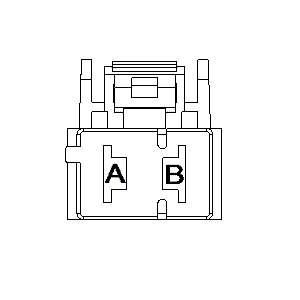

Fig 1: Module-Body Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

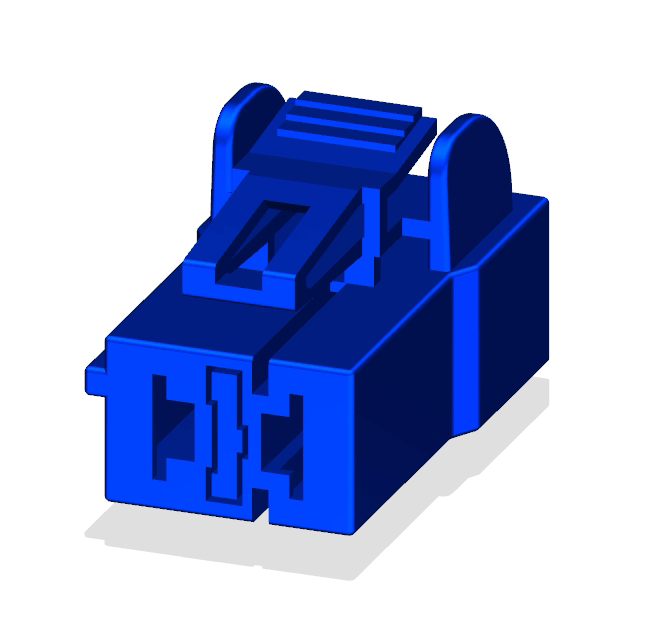

Fig 2: Module-Body Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

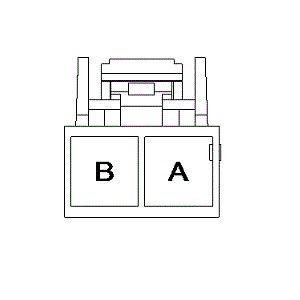

Fig 3: Module-Body Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

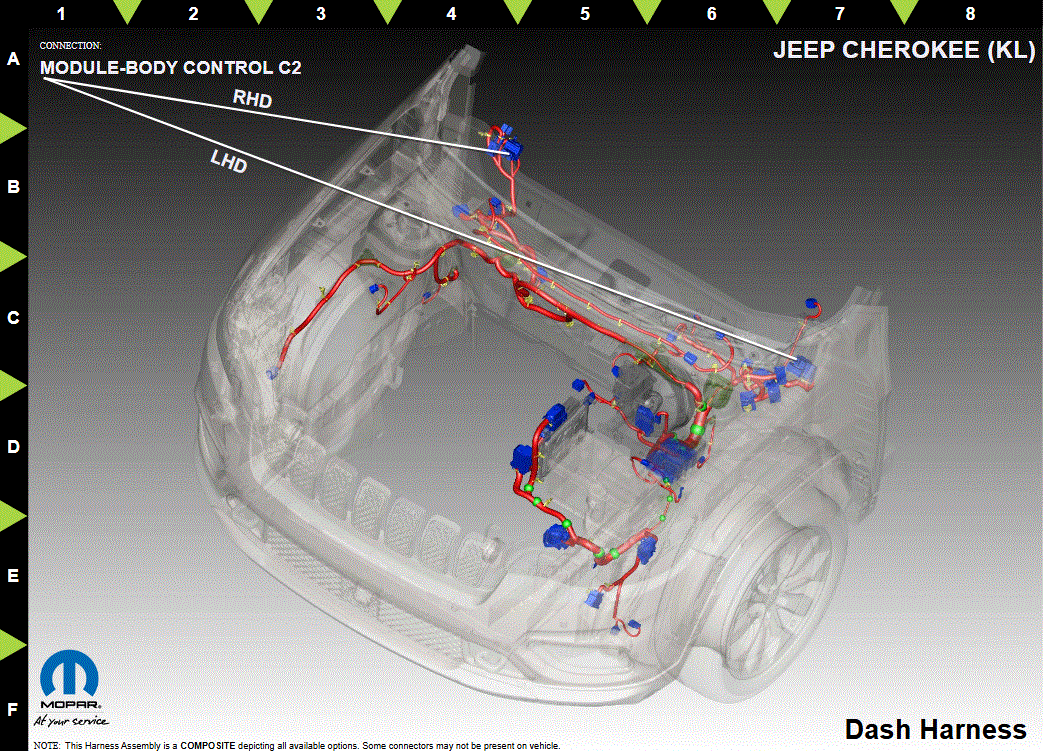

Fig 4: Module-Body Control C2 Component Location View (Standard)

Courtesy of CHRYSLER
