Power Liftgate (Service Information): Chime: Installation

Courtesy of CHRYSLER GROUP, LLC

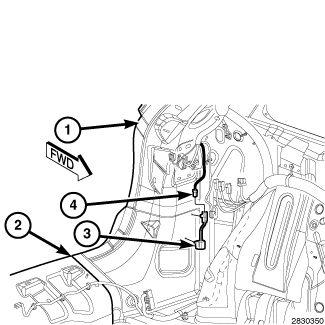

1. Position the power liftgate chime (3) to the left inner D-pillar (1).
2. Install the chime housing integral retainer to the inner D-pillar.
3. Connect the chime pigtail wiring harness connector to the chime wiring harness connector (4).
4. Install the integral chime pigtail wiring harness retainer to the inner D-pillar.
5. Install the quarter trim panel to the lower left inner D-pillar. Refer to PANEL, QUARTER TRIM, INSTALLATION .
6. Install the scuff plate onto the liftgate opening sill (2). Refer to PLATE, SCUFF, LIFTGATE, INSTALLATION .
7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
