Isolator, Rear CROSSMEMBER, Frame: Installation

Courtesy of CHRYSLER GROUP, LLC

Position isolator on the crossmember isolator bore.
NOTE:
Prior to using special tools, lubricate Press, Ball Joint (C) threads to provide ease of use and promote tool longevity.

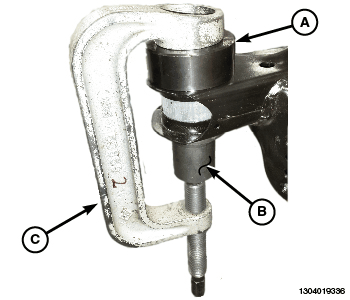

Assemble tools over isolator as shown:
1. (special tool #10106-2, Receiver, Depth Setting)
2. (special tool #9958-3, Installer, Bushing)
3. (special tool #C-4212F, Press, Ball Joint)
Tighten Press, Ball Joint screw-drive (C), pressing the isolator in the crossmember. Install isolator until isolator can flange contacts surface of crossmember.
Remove tools.
Install the rear suspension crossmember. Refer to CROSSMEMBER, REAR SUSPENSION, INSTALLATION .
