Motor, Window Regulator: Installation

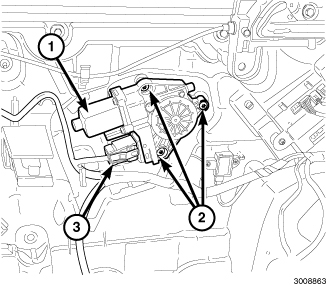

GC0147660Courtesy of CHRYSLER GROUP, LLC
NOTE:

The power window motor may need to actuated momentarily to line up the gear in the drive assembly with the regulator.

  1. Connect the power window motor electrical connector to the motor electrical connector receptacle (3).
  2. Position the power window motor and gear assembly (1) on the carrier plate aligning the drive gear with the regulator.
  3. If necessary, temporarily connect the window switch assembly and battery to actuate the motor.
  4. Install and tighten the fasteners (2) that secure the power window motor and gear assembly to the carrier plate.
  5. Install the door interior trim panel. Refer to PANEL, DOOR TRIM, INSTALLATION , or Refer to PANEL, REAR DOOR TRIM, INSTALLATION for the appropriate procedure.
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
