With Door Module

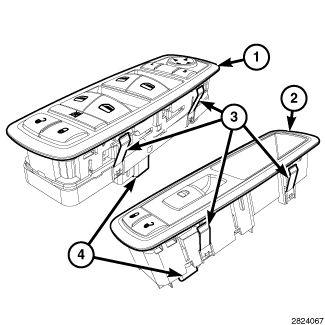

The driver side front door power switch assembly (1) combines the following switches into a single unit:
- power lock
- power window (for each of the four door windows including auto-down and express up for both front door windows)
- power window lockout
- power mirror selector
- power mirror adjustment in a single unit
The passenger side power door switch module combines a power lock switch and a passenger side front door power window switch with the auto-down and express up features.
The driver side front door power switch module provides resistor multiplexed outputs to the driver door module indicating the power lock switch selection. The power window switch selections are hardwired analog outputs indicating the power mirror selector switch, adjustment switch selections, and electronic message outputs over a LIN bus connection.
The passenger side front door power switch module provides resistor multiplexed outputs to the passenger door module indicating both the power lock and power window switch selections.
