Engine Block: FLEXPLATE: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove all sealant residues.

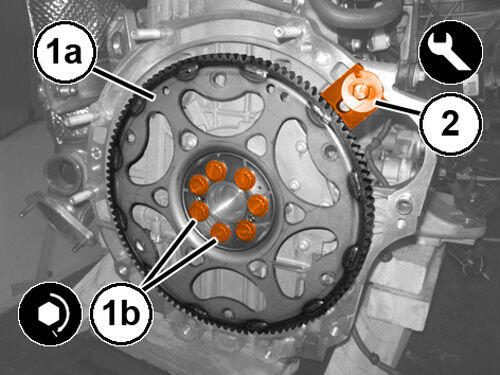

    GC0180975Courtesy of CHRYSLER GROUP, LLC
  2. Install the flexplate (1a) and tighten the new bolts (1b) in crisscross pattern to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  3. Remove the (special tool #10272, Tool, Flywheel Locking).
  4. Install the transmission. Refer to INSTALLATION .
