Removal And Installation: Removal

NOTE:

The Electronic Stability Control (ESC) may also be referred to as Electronic Stability Program (ESP) depending on the vehicle model year and configuration. Certain components may also reference ESP, ESC, or use the traction control symbol.

  1. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

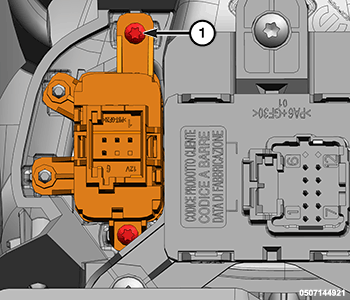

    GC0183819Courtesy of CHRYSLER GROUP, LLC
  2. Disconnect the ESP off switch wire harness connector.
  3. Remove the two ESP off switch screws (1).
  4. Remove the ESP off switch.
