Flash: Central Vision Processing Module (CVPM) Update B2286-00, B223B-00 (08-167-24)

WARNING: This page is about the Compass 80th Anniversary Edition, 4WD, which is a different variant/trim than selected.

Publication date: 2024-07-19
Reference number: 08-167-24

FLASH: CENTRAL VISION PROCESSING MODULE (CVPM) UPDATE B2286-00, B223B-00

TECHNICAL SERVICE BULLETIN

Reference Number(s): 08-167-24, Date of Issue: July 19, 2024

CHRYSLER:	2021 (M6) Jeep Compass, (MP) Jeep Compass, (MV) Jeep Compass
GROUP:	08 - Electrical

VEHICLES AFFECTED

2021 (M6) Jeep Compass

2021 (MP) Jeep Compass

2021 (MV) Jeep Compass

This bulletin applies to vehicles equipped with the Surround View Camera System (Sales Code XAK).

CUSTOMER SYMPTOM

Customers must experience a Malfunction Indicator Lamp (MIL) illumination and the vehicle must exhibit/set one or more of the following Diagnostic Trouble Codes (DTCs):

B2286-00 - Calibration Not Learned - Lost Calibration.
B223B-00 - Vehicle Configuration Mismatch.

Customers may also comment on the following:

Top-down camera view is blank when camera view is selected in the radio menu.
Odometer is flashing.

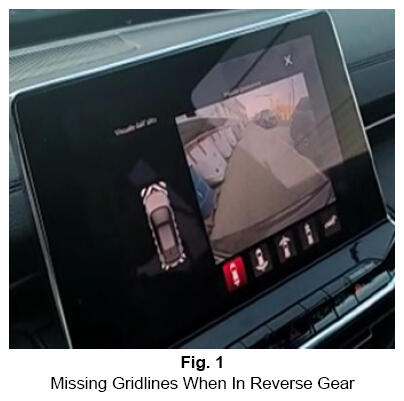

No backup camera gridlines when vehicle transmission is in reverse Fig. 1.

CAUSE

CVPM software update

REPAIR SUMMARY

This bulletin involves updating the CVPM with the latest available software.

CLAIMS DATA

CLAIMS INFORMATION

Labor Operation No:	Labor Description	Skill Category	Labor Time
18-19-90-94	Module, Central Vision Processing Module (CVPM) - Reprogram (1 - Semi-Skilled)	6 - Electrical and Body Systems	1.5 Hrs.
Failure Code	CC	Customer Concern

The dealer must use failure code CC with this Technical Service Bulletin.

If the customer's concern matches the SYMPTOM identified in the Technical Service Bulletin, failure code CC is to be used.
When utilizing this failure code, the 3C's (customer's concern, cause and correction) must be provided for processing Technical Service Bulletin flash/reprogramming conditions.

DIAGNOSIS

Using a Scan Tool (wiTECH) with the appropriate Diagnostic Procedures available in DealerCONNECT/Service Library, verify all related systems are functioning as designed. If DTCs or symptom conditions, other than the ones listed above are present, record the issues on the repair order and repair as necessary before proceeding further with this bulletin.

If the customer describes any of the symptoms listed above in the customer symptom section, perform the Repair Procedure.

SPECIAL TOOLS/EQUIPMENT

SPECIAL TOOLS INFORMATION

Description	Ref. No.	Notes
wiTECH or Equivalent	-	-

REPAIR PROCEDURE

NOTE: Install a battery charger to ensure battery voltage does not drop below 13.2 volts. Do not allow the charging voltage to climb above 13.5 volts during the flash process.

NOTE: If this flash process is interrupted/aborted, the flash should be restarted.

Reprogram the CVPM with the latest software. If issues arise when flashing a module using the wiTECH Diagnostic Application, please submit a ticket to the Helpdesk. The helpdesk can be found within the Help menu.
Perform the PROXI Configuration Alignment routine located in the Guided Diagnostics menu.
Clear all DTCs that may have been set in any module due to reprogramming. The wiTECH application will automatically present all DTCs after the flash and allow them to be cleared.

POLICY

Reimbursable within the provisions of the warranty.

This bulletin is supplied as technical information only and is not an authorization for repair. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise, without written permission of FCA US LLC.
