Differential Case Assembly - M210 Front Axle: Notes

REMOVAL

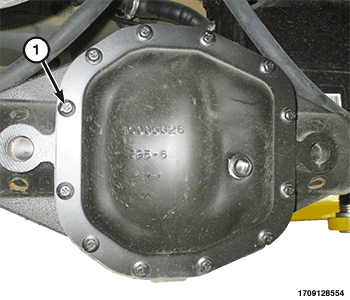

GC0182402Courtesy of CHRYSLER GROUP, LLC
1 - Differential Cover Bolts
  1. Remove the differential cover.
  2. Remove the left tie rod end from the knuckle and secure out of the way. Refer to END, TIE ROD, REMOVAL AND INSTALLATION .
  3. Remove the track bar. Refer to TRACK BAR, FRONT, REMOVAL AND INSTALLATION .
  4. Remove the axle shafts. Refer to REMOVAL AND INSTALLATION .

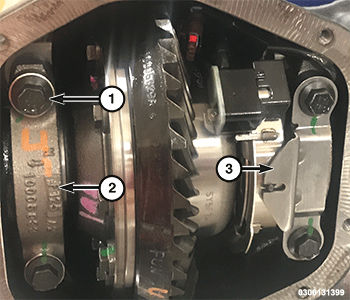

    GC0181211Courtesy of CHRYSLER GROUP, LLC
    1 - Differential Cap Bolts
    2 - Reference Letters
    3 - Axle Locker Coil Anti-rotation Bracket
    NOTE:

    Note the reference letters stamped on the bearing caps and differential housing machined sealing surface.

  5. If reference letters are not clearly visible, mark the bearing caps and differential housing so the caps can be reinstalled in their original positions.
  6. Loosen the differential bearing cap bolts. Notice the orientation of the axle locker actuator bracket when removing the bearing caps.

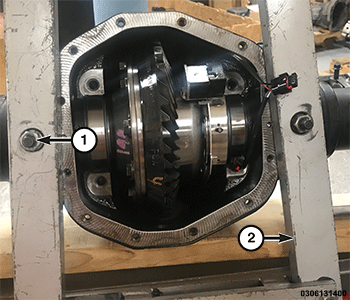

    GC0181661Courtesy of CHRYSLER GROUP, LLC
    1 - Hold Down Clamps
    2 - Spreader
  7. Position the spreader (special tool #W-129-B, Spreader, Differential) with the adapter kit (special tool #6987B, Adapter Kit, Axle Spreader) on the differential locating holes. Install the hold-down clamps and tighten the turnbuckle finger-tight.

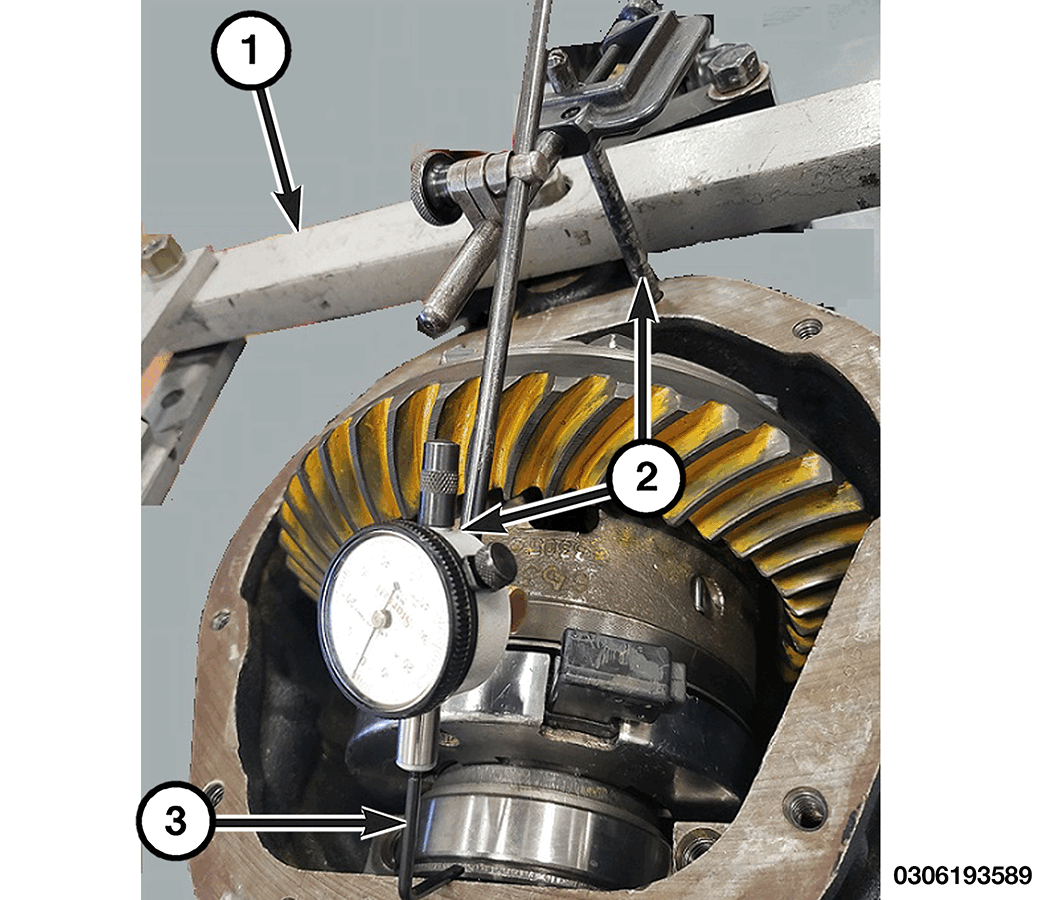

    GC0205883Courtesy of CHRYSLER GROUP, LLC
    1 - Spreader
    2 - Dial Indicator And Mounting
    3 - 90° Dial Indicator Tip
  8. Install a pin (special tool #C-3288-B, Set, Alignment Pins) at the left side of the differential housing. Attach the dial indicator with the SP-1917 or equivalent 90° dial indicator tip (special tool #C-3339A, Set, Dial Indicator) to the pin. Load the SP-1917 or equivalent 90° dial indicator tip against the opposite side of the housing and zero the dial indicator.
  9. Spread the differential housing while measuring the distance with the dial indicator.
    CAUTION:

    Never spread housing over 0.50 mm (0.020 in). Failure to follow these instructions will damage the housing.

  10. Remove the dial indicator.
  11. Holding the differential case in position, remove the differential bearing caps.

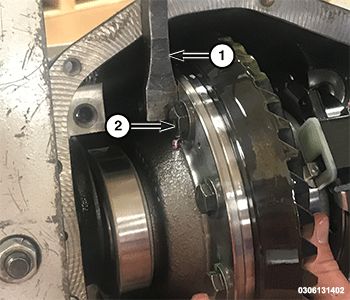

    GC0181357Courtesy of CHRYSLER GROUP, LLC
    1 - Pry Bar
    2 - Differential Case
  12. Remove the differential case from the differential housing using a small pry bar or similar. Tag the differential bearing cups and shim locations.

CLEANING:

INSTALLATION

During installation, torque the fasteners to the specifications in the torque table(s) below.

NOTE:

If new differential bearings or differential case are being installed, the differential side bearing washer requirements may change. to determine the proper shims selection. Refer to ADJUSTMENTS .

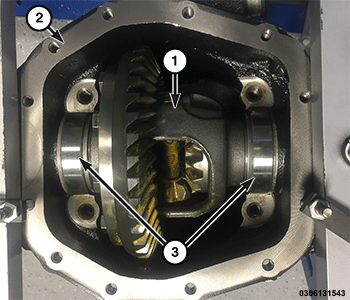

GC0183686Courtesy of CHRYSLER GROUP, LLC
1 - Differential Case
2 - Differential Housing
3 - Bearing Cups
  1. Install the differential case into the differential housing with bearing cups and preload shims. Tap the differential case to ensure the bearings cups are fully seated in the differential housing.
    GC0181211Courtesy of CHRYSLER GROUP, LLC
    1 - Differential Cap Bolts
    2 - Reference Letters
    3 - Axle Locker Coil Anti-rotation Bracket
  2. Install the bearing caps with reference marks in their original locations. Install the axle locker actuator bracket on the locker side of the differential. Center the pin from the axle locker actuator in the slot in the axle locker actuator bracket.
  3. Loosely install the differential bearing cap bolts.
  4. Remove the differential housing spreader.
  5. Tighten the bearing cap bolts to the proper torque specification.
  6. Install the axle shafts. Refer to REMOVAL AND INSTALLATION .
  7. Install the track bar. Refer to TRACK BAR, FRONT, REMOVAL AND INSTALLATION .
  8. Install the left tie rod end. Refer to END, TIE ROD, REMOVAL AND INSTALLATION .
    GC0182402Courtesy of CHRYSLER GROUP, LLC
    1 - Differential Cover
  9. Install the differential cover.
  10. Remove the fill plug and fill the differential with the proper fluid. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .

TORQUE SPECIFICATIONS
