Description And Operation: Notes
DESCRIPTION
The Heating, Ventilation, and Air Conditioning (HVAC) air distribution system consists of the following components:

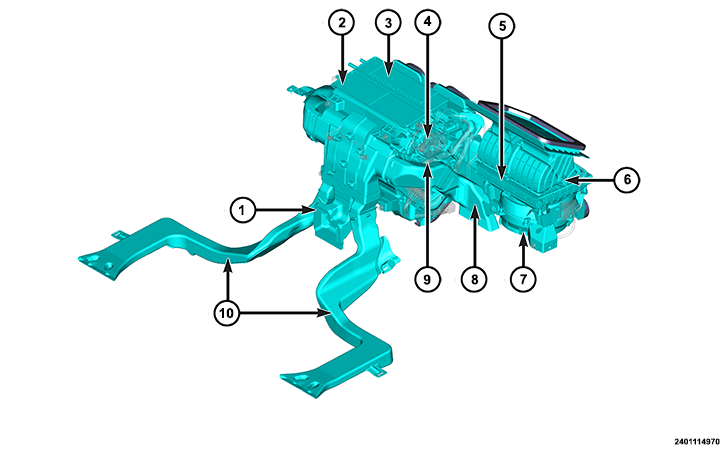

COMPONENT INDEX
| 1. | Refer to CONSOLE DUCT . |
| 2. | Refer to VENT DUCT AND DOORS - Internal to the HVAC housing. |
| 3. | Refer to DEFROSTER DUCT . |
| 4. | Refer to MODE DOOR - Internal to the HVAC housing. |
| 5. | Refer to CABIN FILTER . |
| 6. | Refer to RECIRCULATION HOUSING AND DOOR . |
| 7. | Refer to BLOWER MOTOR . |
| 8. | Refer to FRONT FLOOR DUCT - right side as shown in illustration, left side similar. |
| 9. | Refer to BLEND DOOR - Internal to the HVAC housing. Right side as shown in illustration, left side similar |
| 10. | Refer to REAR FLOOR DUCTS . |
