S17200 (Standard) Connector End View (S17200)

Harness-Family: FRONT BUMPER

Color: NA

Gender: FEMALE

Part Number: AGV36375

Part Description: Not Available

Connector No: S17200

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: N/A

Fig 1: S17200 Connector End View (Standard)
GCWD1006420Courtesy of CHRYSLER

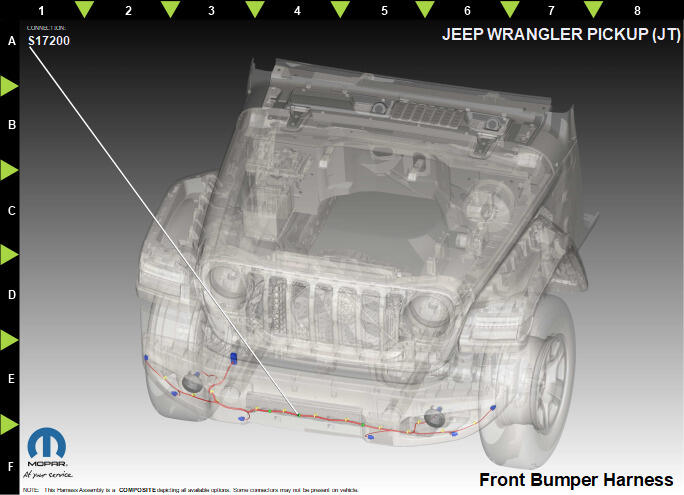

Fig 2: S17200 Component Location View (Standard)
GCWD1318801Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 X702 GY/BU 0.50 FRONT PARK ASSIST SENSOR SUPPLY N/A
