Solenoid-Oil Pump (Standard) Connector End View (D2555A)

Harness-Family: Powertrain

Color: BLACK

Gender: FEMALE

Part Number: 805-120-531

Part Description: Not Available

Connector No: D2555A

Option: Standard

Repair Kit Part Number: 68475547AA

Cavity Count: 2

Fig 1: Solenoid-Oil Pump Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Solenoid-Oil Pump Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Solenoid-Oil Pump Wire Insertion View (Standard)

Courtesy of CHRYSLER

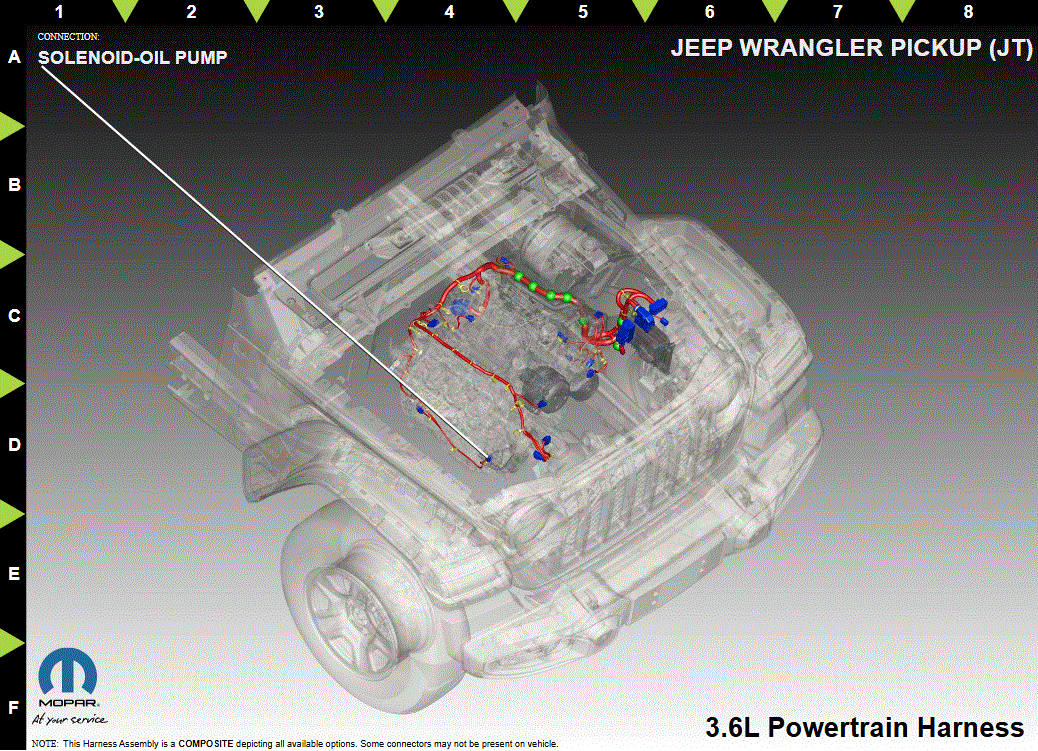

Fig 4: Solenoid-Oil Pump Component Location View (Standard)

Courtesy of CHRYSLER
