G901B (Standard) Connector End View (G901B)

Harness-Family: Battery

Color: NA

Gender: FEMALE

Part Number: R8622

Part Description: Not Available

Connector No: G901B

Option: Standard

Repair Kit Part Number: Not Serviced

Cavity Count: 1

Fig 1: G901b Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: G901b Isometric View (Standard)

Courtesy of CHRYSLER

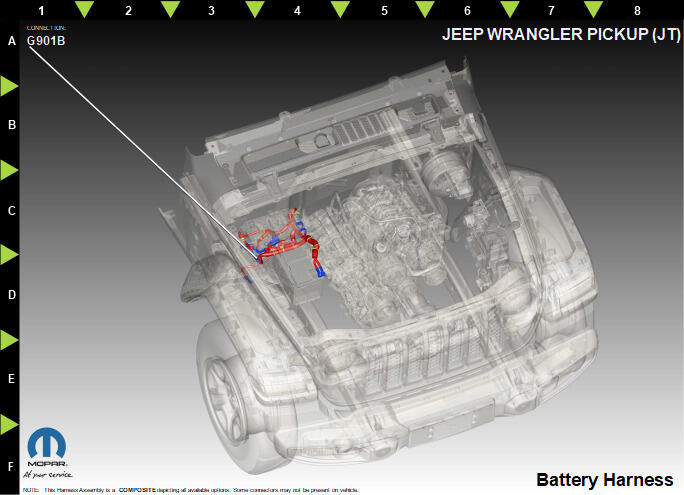

Fig 3: G901b Component Location View (Standard)

Courtesy of CHRYSLER
