XY309A (Standard) Connector End View (Y309A)

Harness-Family: Dash

Color: BLACK

Gender: MALE

Part Number: 7282-8851-30

Part Description: RH TYPE CONNECTOR 2P SUB ASSMEBLY

Connector No: Y309A

Option: Standard

Repair Kit Part Number: 68528165AA

Cavity Count: 2

Fig 1: Xy309a Connector End View (Standard)

Courtesy of CHRYSLER

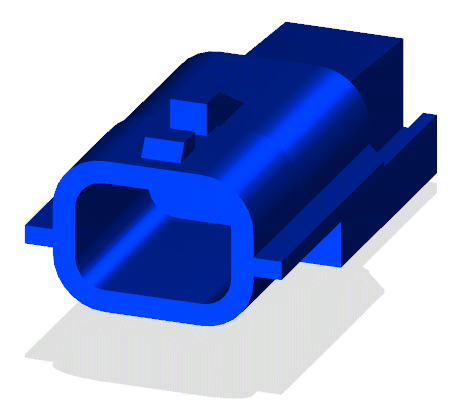

Fig 2: Xy309a Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Xy309a Wire Insertion View (Standard)

Courtesy of CHRYSLER

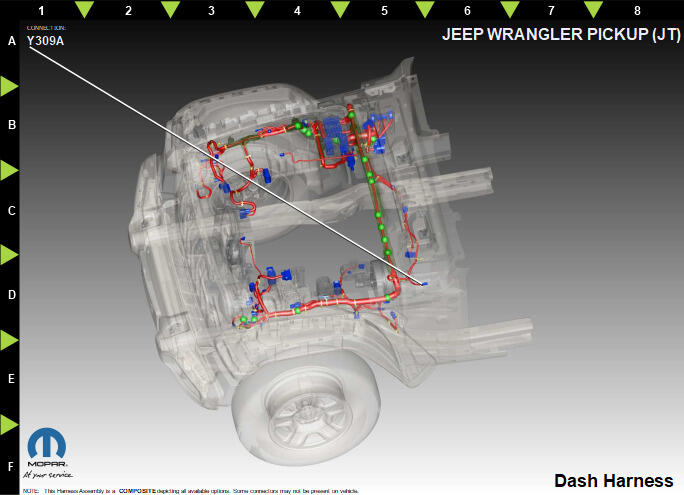

Fig 4: Xy309a Component Location View (Standard)

Courtesy of CHRYSLER
