Module-Powertrain Control C1 (RHD) Connector End View (D3821A)

Harness-Family: Dash

Color: BLACK

Gender: FEMALE

Part Number: 2035037-1_1924940-1

Part Description: Not Available

Connector No: D3821A

Option: RHD

Repair Kit Part Number: 68404956AA

Cavity Count: 96

Fig 1: Module-Powertrain Control C1 Connector End View (RHD)
GCWD1012424Courtesy of CHRYSLER

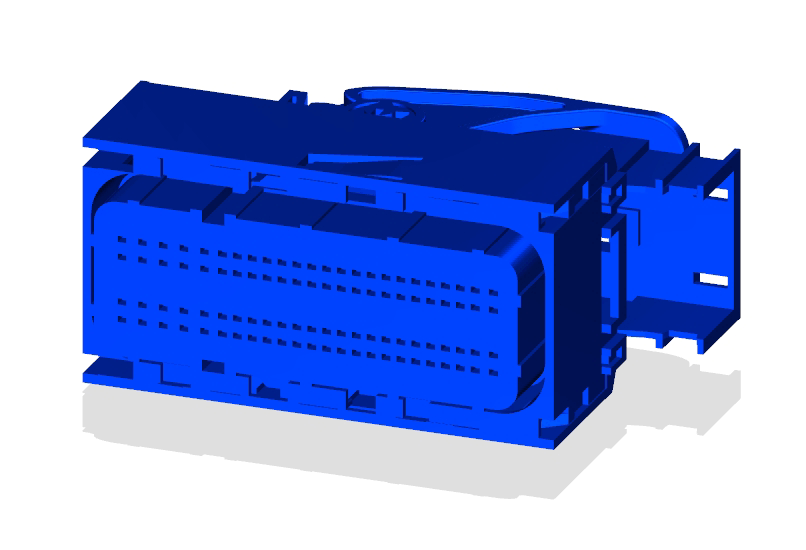

Fig 2: Module-Powertrain Control C1 Isometric View (RHD)
GCWD1014482Courtesy of CHRYSLER

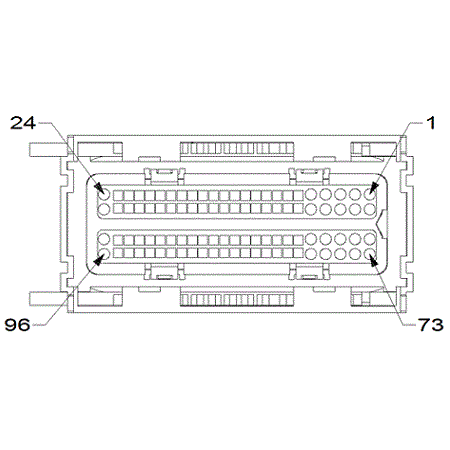

Fig 3: Module-Powertrain Control C1 Wire Insertion View (RHD)
GCWD1007724Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 N0 NA 0 NO CONNECT N/A
2 N0 NA 0 NO CONNECT N/A
3 N0 NA 0 NO CONNECT N/A
4 N0 NA 0 NO CONNECT N/A
5 N0 NA 0 NO CONNECT N/A
6 N0 NA 0 NO CONNECT N/A
7 N0 NA 0 NO CONNECT N/A
8 N0 NA 0 NO CONNECT N/A
9 N0 NA 0 NO CONNECT N/A
10 N0 NA 0 NO CONNECT N/A
11 N0 NA 0 NO CONNECT N/A
12 N0 NA 0 NO CONNECT N/A
13 N0 NA 0 NO CONNECT N/A
14 N0 NA 0 NO CONNECT N/A
15 N0 NA 0 NO CONNECT N/A
16 N0 NA 0 NO CONNECT N/A
17 N0 NA 0 NO CONNECT N/A
18 N0 NA 0 NO CONNECT N/A
19 N0 NA 0 NO CONNECT N/A
20 N0 NA 0 NO CONNECT N/A
21 N0 NA 0 NO CONNECT N/A
22 K181 BN/YE 0.35 FUEL PRESSURE SIGNAL N/A
23 F942 PK/VT 0.50 FUSED IGNITION SWITCH OUTPUT (RUN-START) N/A
24 N0 NA 0 NO CONNECT N/A
25 N0 NA 0 NO CONNECT N/A
26 N0 NA 0 NO CONNECT N/A
27 N0 NA 0 NO CONNECT N/A
28 N0 NA 0 NO CONNECT N/A
29 N0 NA 0 NO CONNECT N/A
30 N0 NA 0 NO CONNECT N/A
31 N0 NA 0 NO CONNECT N/A
32 N0 NA 0 NO CONNECT N/A
33 D28 YE 0.35 CAN C (-) N/A
34 N0 NA 0 NO CONNECT N/A
35 N0 NA 0 NO CONNECT N/A
36 N0 NA 0 NO CONNECT N/A
37 N0 NA 0 NO CONNECT N/A
38 N0 NA 0 NO CONNECT N/A
39 N0 NA 0 NO CONNECT N/A
40 N0 NA 0 NO CONNECT N/A
41 N0 NA 0 NO CONNECT N/A
42 N0 NA 0 NO CONNECT N/A
43 N0 NA 0 NO CONNECT N/A
44 C18 BU/BN 0.50 A/C PRESSURE SIGNAL N/A
45 N0 NA 0 NO CONNECT N/A
46 K806 DB/BN 0.50 HOOD AJAR SWITCH 2 N/A
47 N0 NA 0 NO CONNECT N/A
48 K859 BN/DB 0.50 5 VOLT SUPPLY N/A
49 N0 NA 0 NO CONNECT N/A
50 N0 NA 0 NO CONNECT N/A
51 N0 NA 0 NO CONNECT N/A
52 Z909 BK/GN 1.0 GROUND N/A
53 Z909 BK/GN 1.0 GROUND N/A
54 K917 BN/BG 0.35 SENSOR GROUND N/A
55 N0 NA 0 NO CONNECT N/A
56 N0 NA 0 NO CONNECT N/A
57 D27 BG/WH 0.35 CAN C (+) N/A
58 N0 NA 0 NO CONNECT N/A
59 N0 NA 0 NO CONNECT N/A
60 N0 NA 0 NO CONNECT N/A
61 N12 DB/GN 0.35 FPCM PWM FEEDBACK N/A
62 N0 NA 0 NO CONNECT N/A
63 N0 NA 0 NO CONNECT N/A
64 N0 NA 0 NO CONNECT N/A
65 N0 NA 0 NO CONNECT N/A
66 N0 NA 0 NO CONNECT N/A
67 K400 BN/VT 0.35 APP SENSOR GROUND 2 N/A
68 K167 BN/YE 0.35 APP SENSOR GROUND 1 N/A
69 K854 VT/BN 0.35 5 VOLT SUPPLY N/A
70 K108 VT/GY 0.35 ESIM SIGNAL N/A
71 K8 VT/BG 0.35 STARTER RELAY CONTROL N/A
72 Z909 BK/GN 1.0 GROUND N/A
73 N9 DB 0.50 FUEL PUMP RELAY CONTROL N/A
74 F342 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
75 F342 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
76 F342 BN/WH 1.0 FUSED ASD RELAY OUTPUT N/A
77 T110 DG/YE 0.50 VACUUM PUMP RELAY CONTROL N/A
78 N0 NA 0 NO CONNECT N/A
79 C13 BU/OG 0.35 A/C CLUTCH CONTROL N/A
80 K51 BN/WH 0.75 ASD RELAY CONTROL N/A
81 N0 NA 0 NO CONNECT N/A
82 K173 BN/VT 0.50 RADIATOR FAN CONTROL SIGNAL N/A
83 N11 DB/BG 0.35 FPCM PWM CONTROL N/A
84 N0 NA 0 NO CONNECT N/A
85 N0 NA 0 NO CONNECT N/A
86 N0 NA 0 NO CONNECT N/A
87 N0 NA 0 NO CONNECT N/A
88 N7 DB/OG 0.35 FUEL TANK PRESSURE SIGNAL N/A
89 N0 NA 0 NO CONNECT N/A
90 N0 NA 0 NO CONNECT N/A
91 K29 WH/BN 0.35 APP SIGNAL 2 N/A
92 K23 BN/WH 0.35 APP SIGNAL 1 N/A
93 K852 GY/BU 0.35 5 VOLT SUPPLY N/A
94 K52 DB/WH 0.50 EVAP PURGE CONTROL N/A
95 N0 NA 0 NO CONNECT N/A
96 A106 BU/RD 1.0 FUSED B(+) N/A
