Front Input Seal

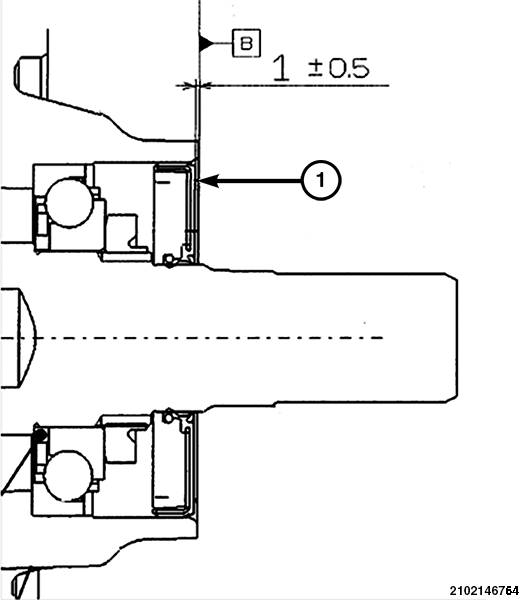

FRONT INPUT SEAL
ITEM
DEPTH
1.
11mm (0.43in)
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
