Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

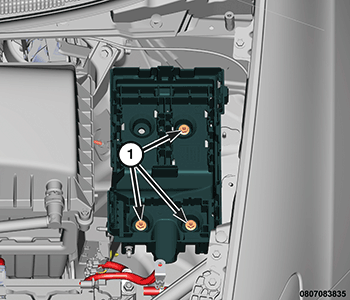

- Position the PDC lower cover in the engine compartment and tighten the fasteners (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

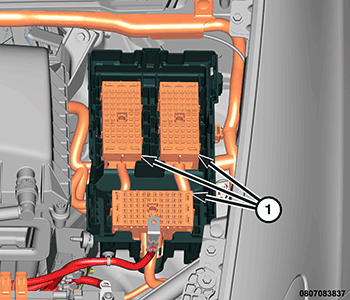

- Connect the three bulkhead wire harness connectors (1) located in the base of the PDC to the upper PDC tray bottom.

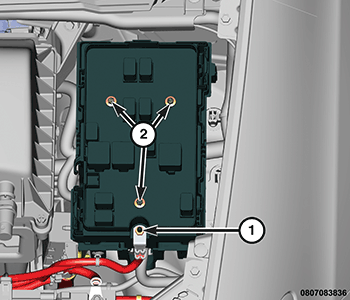

- Tighten the fasteners (2) through the upper PDC tray to the proper torque specification. Refer to TORQUE SPECIFICATIONS . If a screw is over torqued, mating connector can be damaged.
- Connect the B+ to the PDC (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

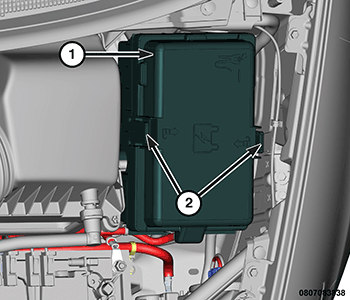

- Install the PDC cover (1) onto the PDC assembly making sure the snap retainers (2) are fully engaged.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
