Steering Column

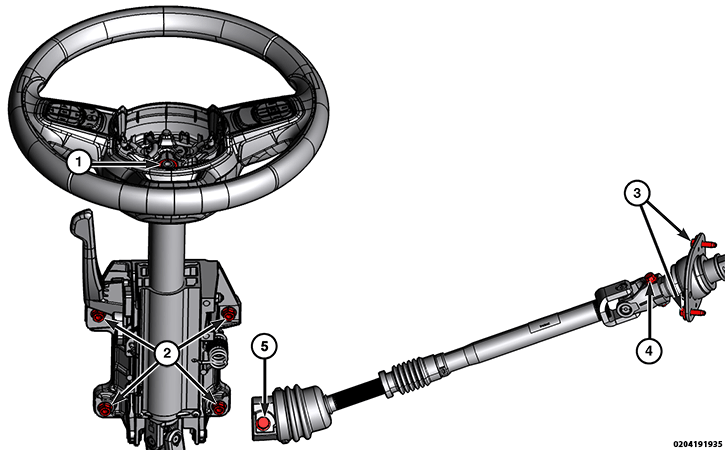

TORQUE SPECIFICATIONS - STEERING COLUMN (1 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Steering Wheel Nut | 50 N. m (37 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 2 | Steering Column Nuts | 27 N. m (20 Ft. Lbs.) | - |
| 3 | Bulkhead Bearing Bolt | 9 N. m (7 Ft. Lbs.) | - |
| 4 | Intermediate Shaft Coupler Upper Pinch Bolts | 34 N. m (25 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |
| 5 | Intermediate Shaft Coupler Lower Pinch Bolts | 55 N. m (41 Ft. Lbs.) | Do not reuse these fasteners. If removed, a new fastener must be installed and tightened to specifications. |

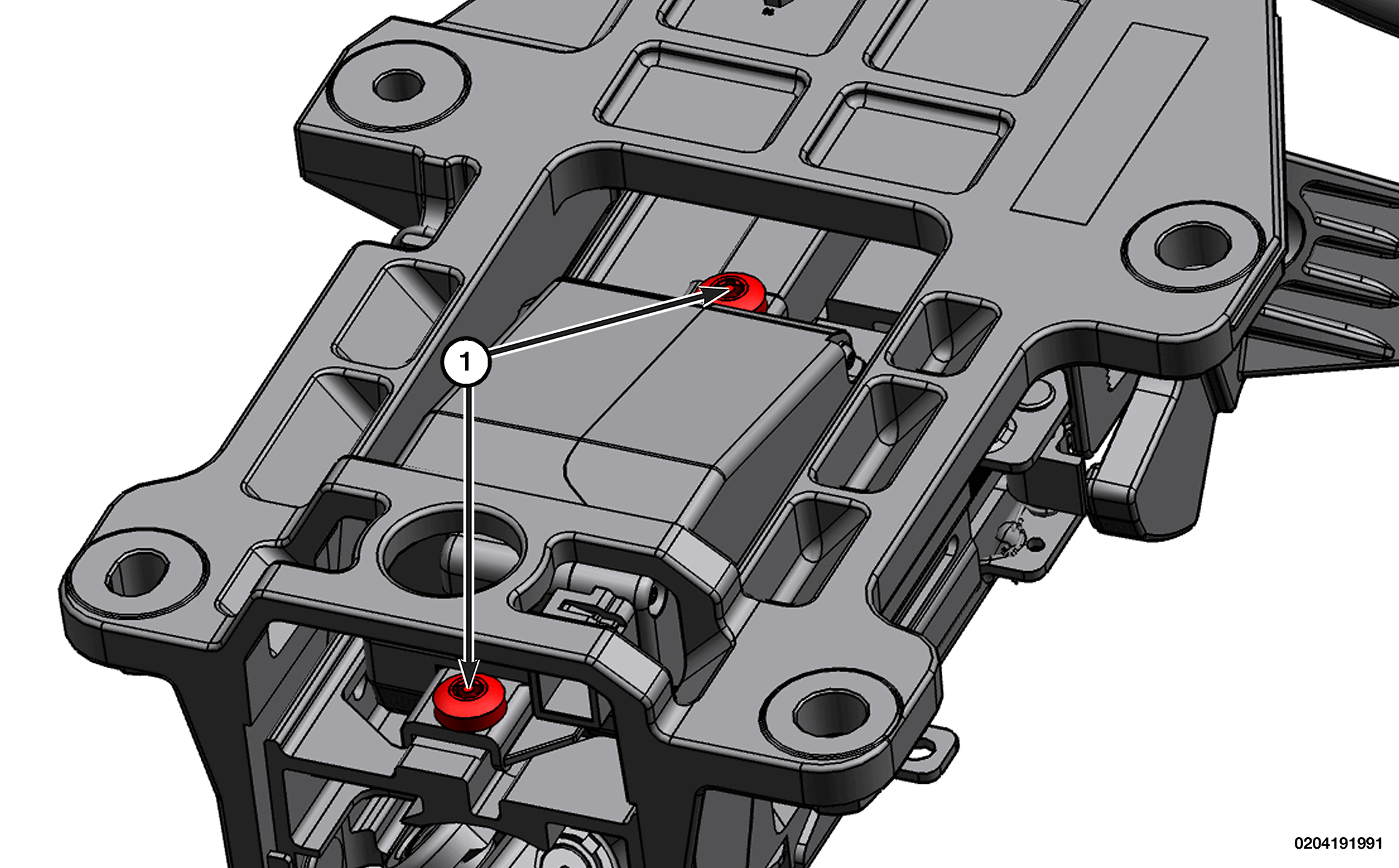

TORQUE SPECIFICATIONS - STEERING COLUMN (2 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Electronic Steering Lock (ESL) Module Bolts | 8 N. m (71 In. Lbs.) | - |

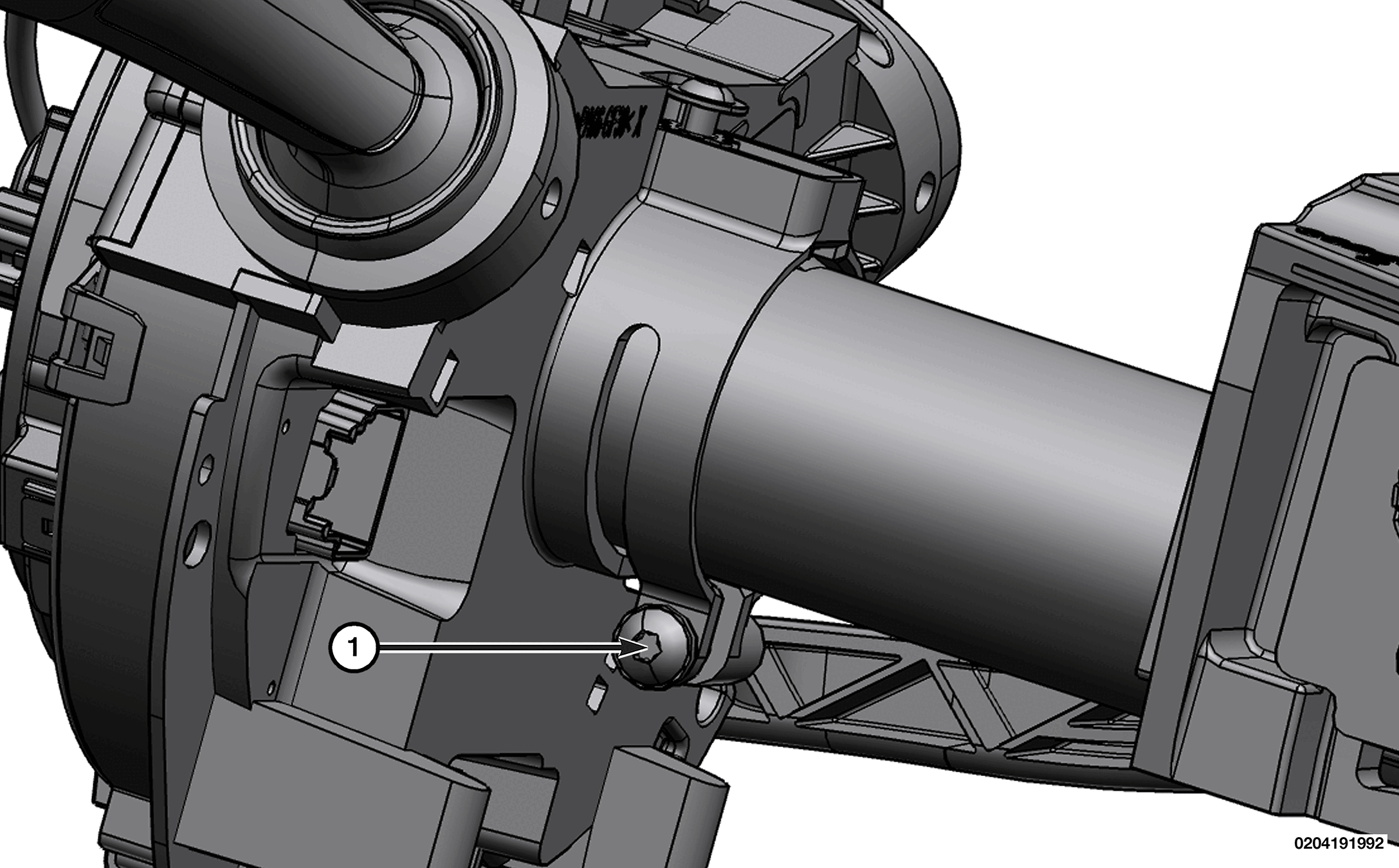

TORQUE SPECIFICATIONS - STEERING COLUMN (3 OF 3)
| CALLOUT | DESCRIPTION | SPECIFICATION | COMMENT |
|---|---|---|---|
| 1 | Steering Column Control Module (SCCM) Band Clamp Fastener | 6 N. m (53 In. Lbs.) | - |
