Second Row Bucket

REMOVAL

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

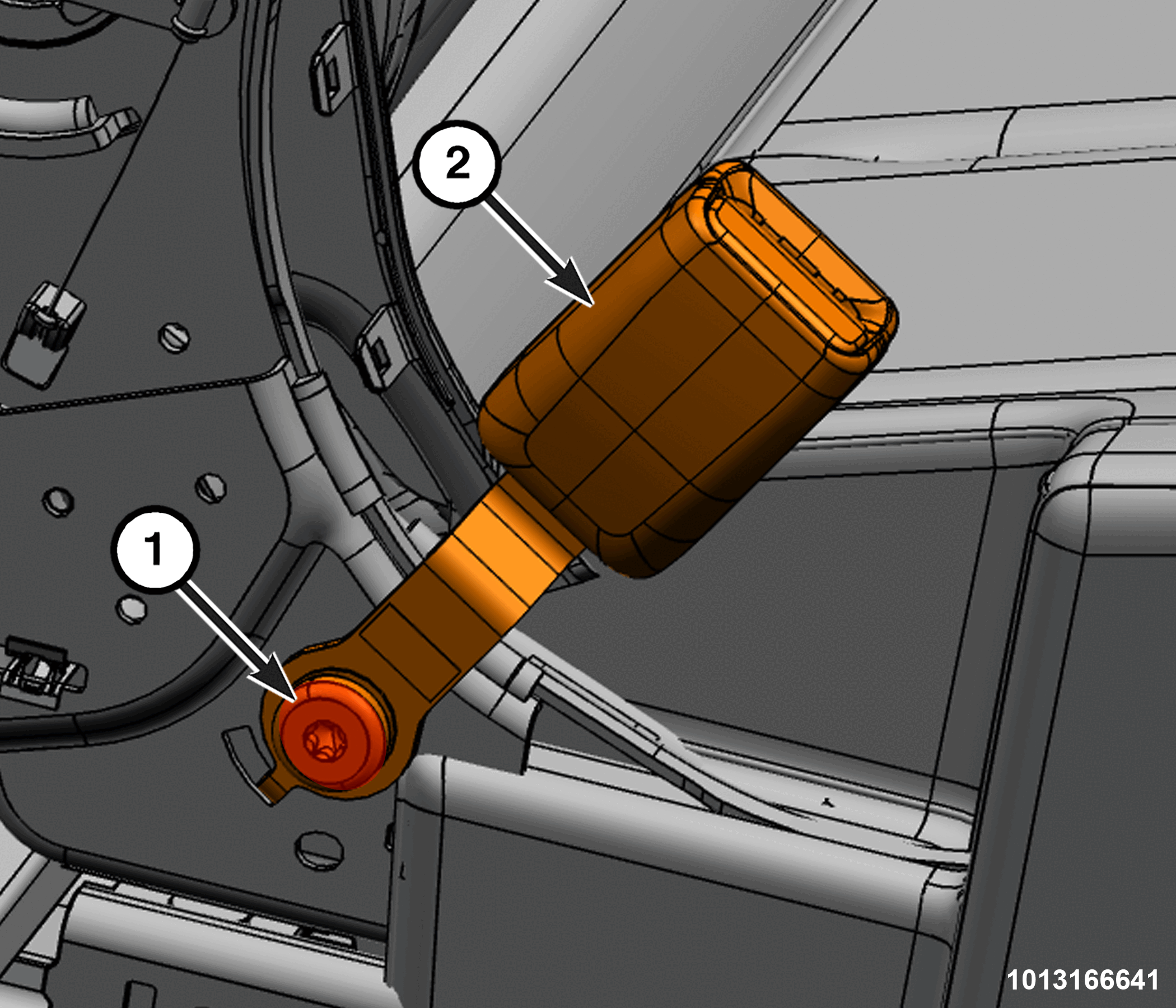

GC0201979Courtesy of CHRYSLER GROUP, LLC
1 - Bolt
2 - Buckle
  1. Remove the push fastener on the backside of the side shield.
  2. Pull at the bottom to release the two clips, then lift to unhook the top feature and remove the side shield.
  3. Remove the bolt from the rear bucket seat belt buckle anchor.
  4. Remove the buckle from the vehicle.

INSTALLATION

  1. Position the buckle for installation.
  2. Install the rear bucket seat belt buckle bolt and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  3. Install the side shield.
