Module, Fuel Pump Control: Installation

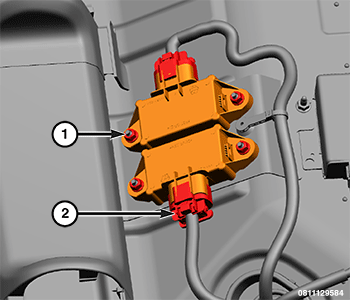

GC0180925Courtesy of CHRYSLER GROUP, LLC
  1. Position the fuel pump control module into the mounting bracket.
  2. Install and securely tighten the fuel pump control module mounting fasteners (1).
  3. Connect the fuel pump control module wire harness connectors (2) to the module.
  4. Install the rear carpet assembly. Refer to CARPET, FLOOR, INSTALLATION .
  5. Install the rear seat. Refer to INSTALLATION .
  6. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
