Module, Keyless Ignition Node (Kin): Installation

Courtesy of CHRYSLER GROUP, LLC

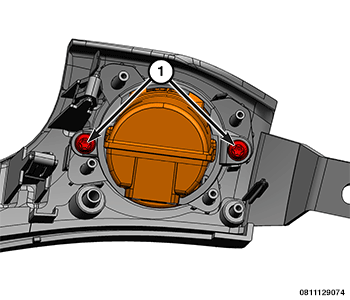

1. Install the fasteners (1) securing the KIN module to the bezel.

   Courtesy of CHRYSLER GROUP, LLC

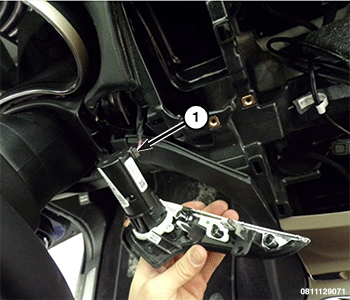

2. Connect the Keyless Ignition Node (KIN) module wiring harness connector (1).

   Courtesy of CHRYSLER GROUP, LLC

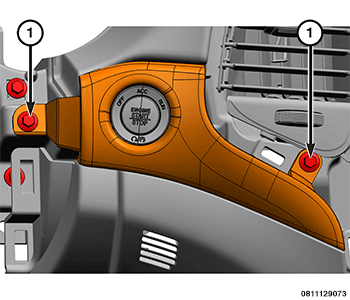

3. Install the bezel onto the instrument panel and install the fasteners (1) securing the bezel.

   Courtesy of CHRYSLER GROUP, LLC

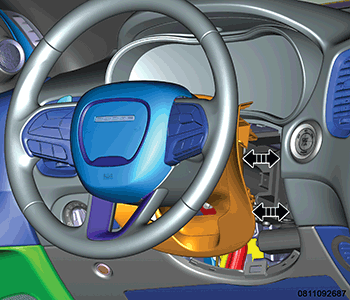

4. Install the steering column gap hider and engage the retainers.
5. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
6. If the KIN was replaced, perform the (Radio Frequency (RF Hub) Module Verification Test. Refer to RADIO FREQUENCY HUB (RF HUB) VERIFICATION TEST .
