Module-Powertrain Control C1 (Standard) Connector End View (D3837A)

Harness-Family: HDLP_Dash

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_247-063-067-074-073

Part Description: Not Available

Connector No: D3837A

Option: Standard

Repair Kit Part Number: 68394494AA

Cavity Count: 94

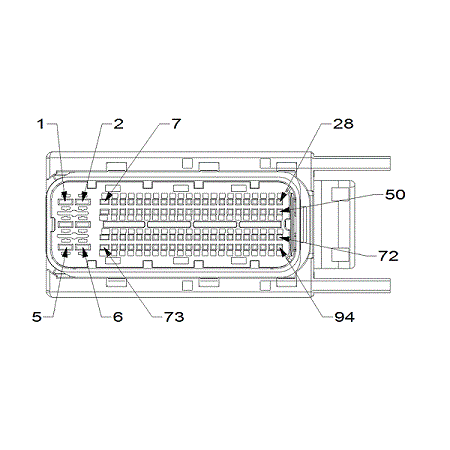

Fig 1: Module-Powertrain Control C1 Connector End View (Standard)

Courtesy of CHRYSLER

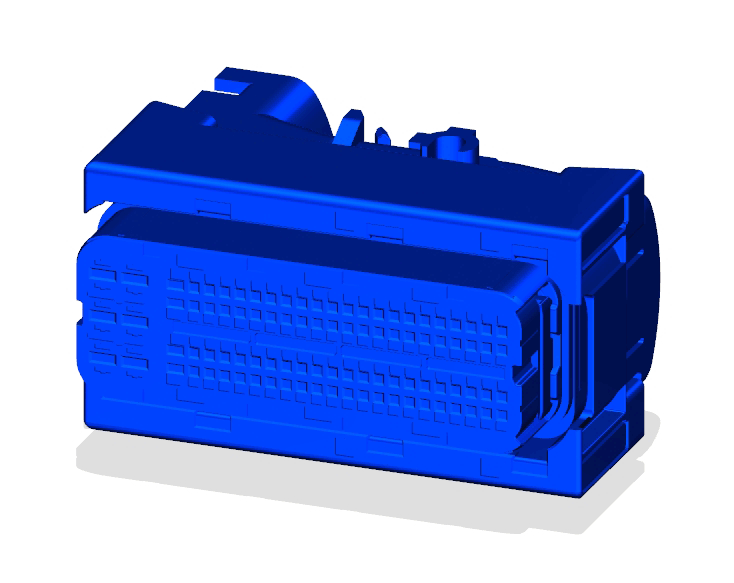

Fig 2: Module-Powertrain Control C1 Isometric View (Standard)

Courtesy of CHRYSLER

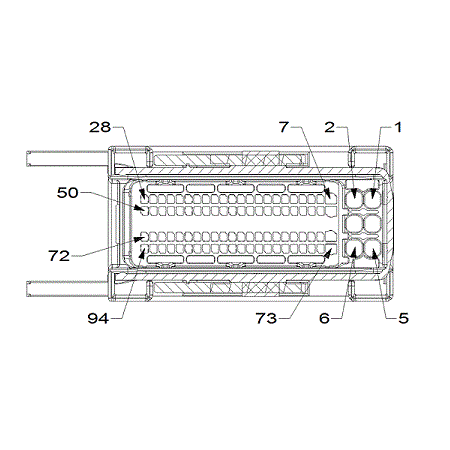

Fig 3: Module-Powertrain Control C1 Wire Insertion View (Standard)

Courtesy of CHRYSLER

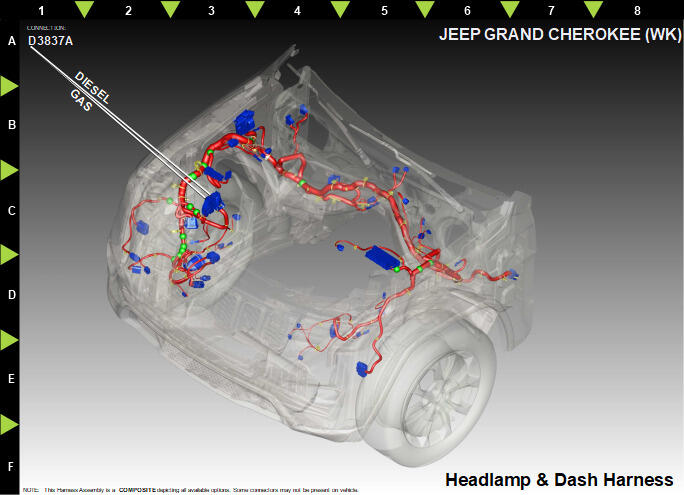

Fig 4: Module-Powertrain Control C1 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	F344	BN/GY	2.0	ASD RELAY OUTPUT	N/A
2	Z909	BK	2.0	GROUND	N/A
3	F342	BN/WH	2.0	ASD RELAY OUTPUT	N/A
4	Z909	BK	2.0	GROUND	N/A
5	F342	BN/WH	2.0	ASD RELAY OUTPUT	N/A
6	Z909	BK	2.0	GROUND	N/A
7	K79	BN/BU	0.75	O2 1/1 HEATER CONTROL	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	K68	BN/GN	0.50	INLET AIR PRESSURE SIGNAL	N/A
11	K648	DG/GN	0.50	INTAKE AIR HUMIDITY SENSOR SIGNAL	N/A
12	C818	BU/OG	0.35	A/C PRESSURE 5 VOLT SUPPLY	N/A
13	K188	BN/OG	0.50	MAF SUPPLY	N/A
14	K354	VT/BU	0.50	EXHAUST DIFFERENTIAL PRESSURE 5 VOLT SUPPLY	N/A
15	N0	NA	0	NO CONNECT	N/A
16	K852	GY/BU	0.50	5 VOLT SUPPLY	N/A
17	K854	VT/BN	0.50	5 VOLT SUPPLY	N/A
18	K110	BN	0.50	OIL PRESSURE SENSOR 5 VOLT SUPPLY	N/A
19	K462	BN/WH	0.50	IAT 2 SIGNAL	N/A
20	K757	BK/YE	0.50	SENSOR GROUND	N/A
21	K142	DB/BU	0.50	MASS AIR FLOW SIGNAL	N/A
22	K414	BN/YE	0.50	UREA SYSTEM / TANK LEVEL SIG 1	N/A
23	D469	GY	0.50	PRIVATE CAN (+)	N/A
24	D27	BG/WH	0.35	CAN C (+)	N/A
25	D28	YE	0.35	CAN C (-)	N/A
26	N0	NA	0	NO CONNECT	N/A
27	T752	DG/OG	0.50	STARTER RELAY CONTROL	N/A
28	K51	BN/WH	0.75	ASD RELAY CONTROL	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	K69	BN/BU	0.35	ENGINE AIR INTAKE TEMPERATURE SIGNAL	N/A
32	K49	VT/BU	0.35	ENGINE CHARGE AIR TEMPERATURE OUT SIGNAL	N/A
33	K50	VT/BG	0.50	ENGINE CHARGE AIR TEMPERATURE OUT RETURN	N/A
34	C918	BK/BU	0.35	A/C PRESSURE RETURN	N/A
35	K923	BN/WH	0.50	WATER IN FUEL SENSOR GROUND	N/A
36	K951	VT/GY	0.50	EXHAUST DIFFERENTIAL PRESSURE SENSOR GROUND	N/A
37	N0	NA	0	NO CONNECT	N/A
38	K167	BN/YE	0.50	APP SENSOR GROUND 1	N/A
39	K400	BN/VT	0.50	APP SENSOR GROUND 2	N/A
40	N0	NA	0	NO CONNECT	N/A
41	K936	BN/YE	0.50	EOP SENSOR GROUND	N/A
42	N0	NA	0	NO CONNECT	N/A
43	N0	NA	0	NO CONNECT	N/A
44	N0	NA	0	NO CONNECT	N/A
45	D468	GY/WH	0.50	PRIVATE CAN (-)	N/A
46	N0	NA	0	NO CONNECT	N/A
47	N0	NA	0	NO CONNECT	N/A
48	N0	NA	0	NO CONNECT	N/A
49	K175	BN/BU	0.50	RAD FAN CONTROL	N/A
50	T762	DG	0.50	PCR RELAY CONTROL	N/A
51	K402	DB/WH	0.75	SCR RELAY 2 CONTROL	N/A
52	N0	NA	0	NO CONNECT	N/A
53	N0	NA	0	NO CONNECT	N/A
54	F942	PK/VT	0.35	FUSED IGNITION SWITCH OUTPUT (RUN-START)	N/A
55	N0	NA	0	NO CONNECT	N/A
56	C18	BU/BN	0.35	A/C PRESSURE SIGNAL	N/A
57	G123	VT/GN	0.50	WIF SENSOR 1 SIGNAL	N/A
58	K355	VT	0.50	EXHAUST DIFFERENTIAL PRESSURE SIGNAL	N/A
59	K806	DB/BN	0.75	STOP START HOOD AJAR SW SIG	N/A
60	K23	BN/WH	0.50	APP SIGNAL 1	N/A
61	K29	WH/BN	0.50	APP SIGNAL 2	N/A
62	K302	BN/WH	0.50	CRANKCASE PRESSURE SENSOR SIGNAL	N/A
63	K41	DB/BU	0.75	O2 1/1 SIGNAL	N/A
64	K89	BN/GN	0.75	O2 1/1 POSITIVE CURRENT CONTROL	N/A
65	K159	DB	0.50	FUEL TEMP SNSR RTN	N/A
66	N0	NA	0	NO CONNECT	N/A
67	N0	NA	0	NO CONNECT	N/A
68	X479	BN/DG	0.50	CRANKSHAFT PULSE SIGNAL (-)	N/A
69	K401	DB/YE	0.75	SCR RELAY 1 CONTROL	N/A
70	N116	DB	0.50	CRANKCASE VENT HEATER CONTROL	N/A
71	N0	NA	0	NO CONNECT	N/A
72	X478	BN/GN	0.50	CRANKSHAFT PULSE SIGNAL (+)	N/A
73	K482	BN	0.75	DEF SUPPLY PUMP CONTROL	N/A
74	N0	NA	0	NO CONNECT	N/A
75	N0	NA	0	NO CONNECT	N/A
76	T753	DG/YE	0.50	IGNITION CRANK SENSE	N/A
77	K420	DB/OG	0.50	SENSOR GROUND	N/A
78	N0	NA	0	NO CONNECT	N/A
79	K914	BN/WH	0.50	SENSOR GROUND	N/A
80	K352	BN/OG	0.50	EGT SIGNAL	N/A
81	K379	DB/GY	0.50	SENSOR GROUND	N/A
82	K384	BN/YE	0.50	EGT SIGNAL	N/A
83	K900	DB/DG	0.50	SENSOR GROUND	N/A
84	K382	GY/BN	0.50	EGT SIGNAL	N/A
85	K902	BN/DG	0.75	O2 RETURN (UPSTREAM)	N/A
86	N0	NA	0	NO CONNECT	N/A
87	K156	GY/VT	0.50	FUEL TEMP SIGNAL	N/A
88	N0	NA	0	NO CONNECT	N/A
89	K64	GY/VT	0.35	ENGINE AIR INTAKE TEMPERATURE RETURN	N/A
90	D509	WH/OG	0.75	LIN BUS	N/A
91	N0	NA	0	NO CONNECT	N/A
92	K31	BN	0.50	FUEL PUMP CONTROL	N/A
93	K137	DB/OG	0.50	WASTEGATE SOL CONTROL	N/A
94	C13	BU/OG	0.35	A/C CLUTCH CONTROL	N/A
