Module-Fuel Pump Control (Standard) Connector End View (D2792A)

Harness-Family: Under_Body

Color: GRAY

Gender: FEMALE

Part Number: 13669205

Part Description: Not Available

Connector No: D2792A

Option: Standard

Repair Kit Part Number: 68499976AA

Cavity Count: 8

Fig 1: Module-Fuel Pump Control Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Fuel Pump Control Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Fuel Pump Control Wire Insertion View (Standard)

Courtesy of CHRYSLER

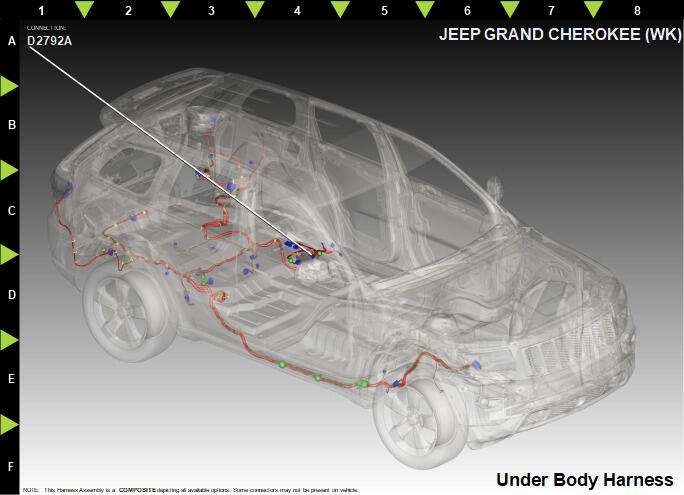

Fig 4: Module-Fuel Pump Control Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
A	N15	VT/RD	3.0	FPCM PWM CONTROL	N/A
B	N11	DB/BG	0.50	FPCM PWM CONTROL	N/A
C	N0	NA	0	NO CONNECT	N/A
D	N13	DB/OG	3.0	FUEL PUMP PWM CONTROL	N/A
E	Z917	BK	3.0	GROUND	N/A
F	N12	DB/GN	0.50	FPCM PWM FEEDBACK	N/A
G	Z31	BK	0.50	GROUND	N/A
H	N14	VT/BU	3.0	FUEL PUMP RETURN	N/A
