Module-Occupant Restraint Controller C3 (Standard) Connector End View (D3834C)

Harness-Family: Body

Color: YELLOW

Gender: FEMALE

Part Number: F477100

Part Description: 52P Female MODULE II FOR ORC MODULE

Connector No: D3834C

Option: Standard

Repair Kit Part Number: 68500065AA

Cavity Count: 52

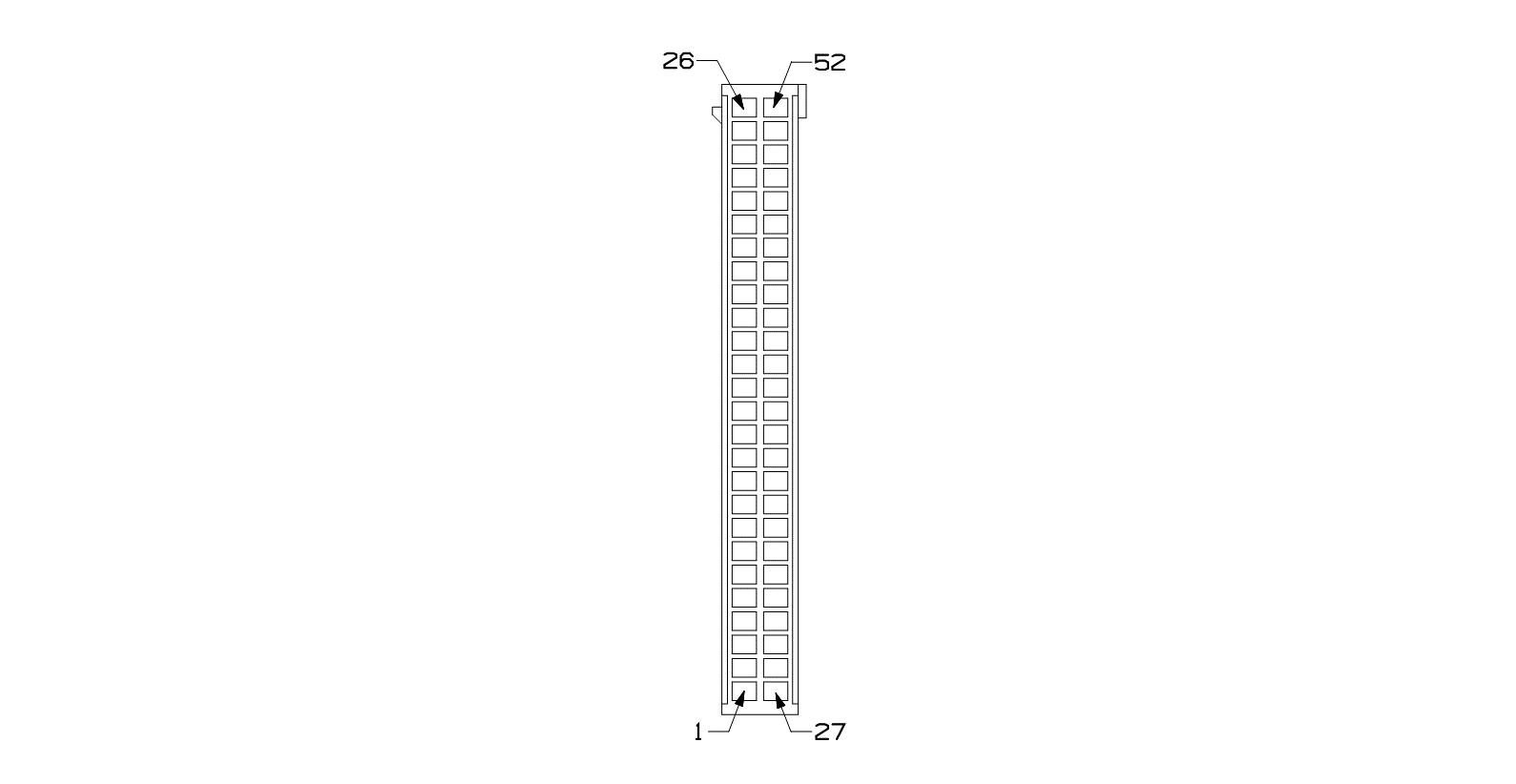

Fig 1: Module-Occupant Restraint Controller C3 Connector End View (Standard)

Courtesy of CHRYSLER

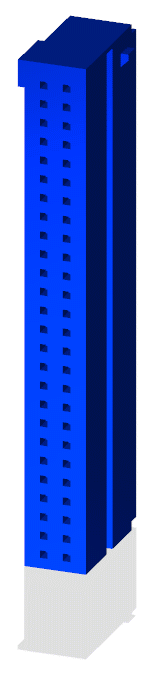

Fig 2: Module-Occupant Restraint Controller C3 Isometric View (Standard)

Courtesy of CHRYSLER

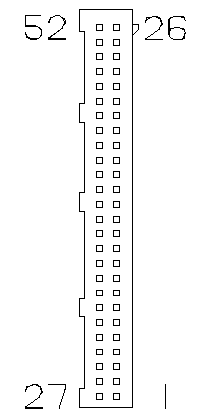

Fig 3: Module-Occupant Restraint Controller C3 Wire Insertion View (Standard)

Courtesy of CHRYSLER

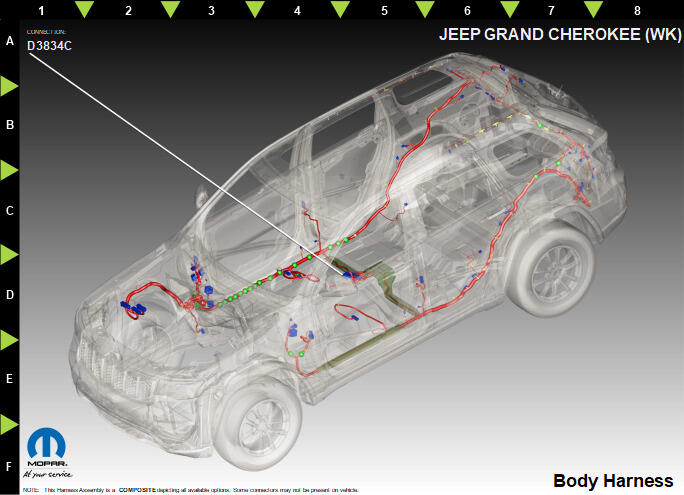

Fig 4: Module-Occupant Restraint Controller C3 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	R20	WH/GN	0.50	RIGHT SIDE IMPACT SENSOR 2 GROUND	N/A
2	R18	BU	0.50	RIGHT SIDE IMPACT SENSOR 2 SIGNAL	N/A
3	R17	GN	0.50	LEFT SIDE IMPACT SENSOR 2 SIGNAL	N/A
4	R19	GN/WH	0.50	LEFT SIDE IMPACT SENSOR 2 GROUND	N/A
5	N0	NA	0	NO CONNECT	N/A
6	N0	NA	0	NO CONNECT	N/A
7	N0	NA	0	NO CONNECT	N/A
8	N0	NA	0	NO CONNECT	N/A
9	N0	NA	0	NO CONNECT	N/A
10	N0	NA	0	NO CONNECT	N/A
11	N0	NA	0	NO CONNECT	N/A
12	N0	NA	0	NO CONNECT	N/A
13	N0	NA	0	NO CONNECT	N/A
14	N0	NA	0	NO CONNECT	N/A
15	N0	NA	0	NO CONNECT	N/A
16	N0	NA	0	NO CONNECT	N/A
17	N0	NA	0	NO CONNECT	N/A
18	N0	NA	0	NO CONNECT	N/A
19	N0	NA	0	NO CONNECT	N/A
20	N0	NA	0	NO CONNECT	N/A
21	N0	NA	0	NO CONNECT	N/A
22	N0	NA	0	NO CONNECT	N/A
23	N0	NA	0	NO CONNECT	N/A
24	N0	NA	0	NO CONNECT	N/A
25	N0	NA	0	NO CONNECT	N/A
26	N0	NA	0	NO CONNECT	N/A
27	N0	NA	0	NO CONNECT	N/A
28	N0	NA	0	NO CONNECT	N/A
29	N0	NA	0	NO CONNECT	N/A
30	N0	NA	0	NO CONNECT	N/A
31	N0	NA	0	NO CONNECT	N/A
32	N0	NA	0	NO CONNECT	N/A
33	N0	NA	0	NO CONNECT	N/A
34	N0	NA	0	NO CONNECT	N/A
35	N0	NA	0	NO CONNECT	N/A
36	N0	NA	0	NO CONNECT	N/A
37	N0	NA	0	NO CONNECT	N/A
38	N0	NA	0	NO CONNECT	N/A
39	N0	NA	0	NO CONNECT	N/A
40	N0	NA	0	NO CONNECT	N/A
41	N0	NA	0	NO CONNECT	N/A
42	N0	NA	0	NO CONNECT	N/A
43	N0	NA	0	NO CONNECT	N/A
44	N0	NA	0	NO CONNECT	N/A
45	N0	NA	0	NO CONNECT	N/A
46	N0	NA	0	NO CONNECT	N/A
47	N0	NA	0	NO CONNECT	N/A
48	N0	NA	0	NO CONNECT	N/A
49	N0	NA	0	NO CONNECT	N/A
50	N0	NA	0	NO CONNECT	N/A
51	N0	NA	0	NO CONNECT	N/A
52	N0	NA	0	NO CONNECT	N/A
