Module-Powertrain Control C2 (Standard) Connector End View (D3837B)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 1_928_405_070-064-068-075

Part Description: Not Available

Connector No: D3837B

Option: Standard

Repair Kit Part Number: 68394493AA

Cavity Count: 60

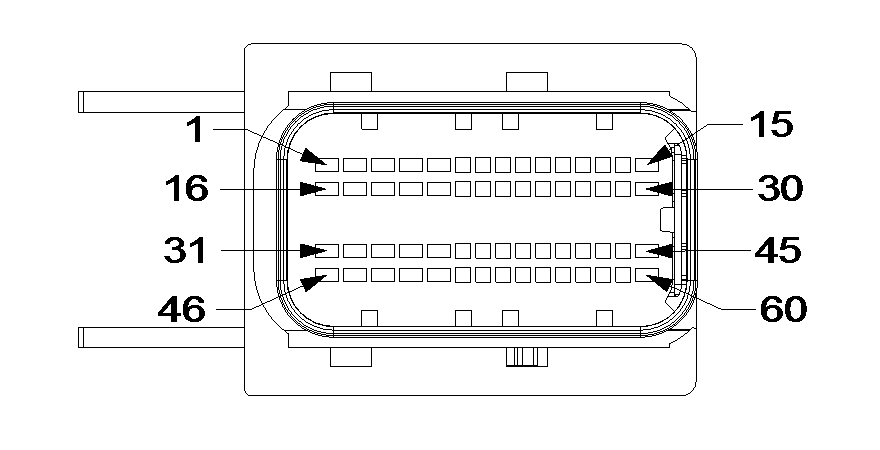

Fig 1: Module-Powertrain Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

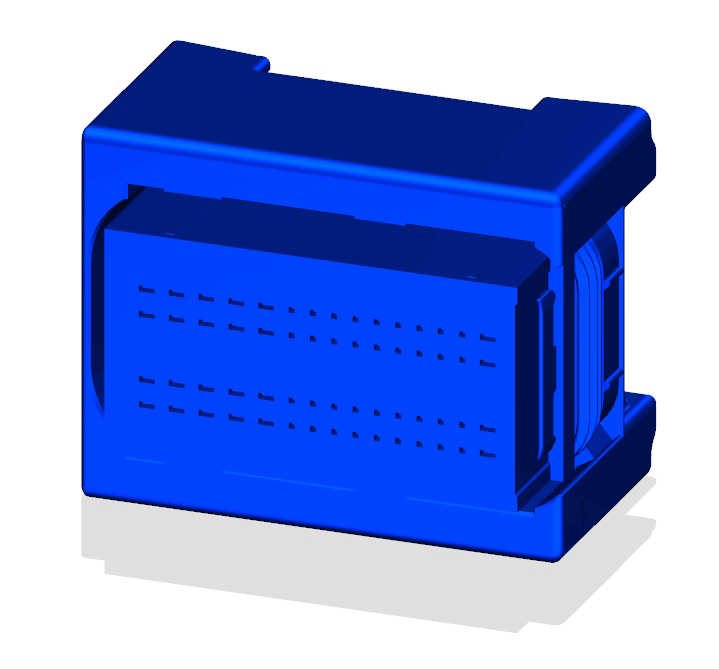

Fig 2: Module-Powertrain Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

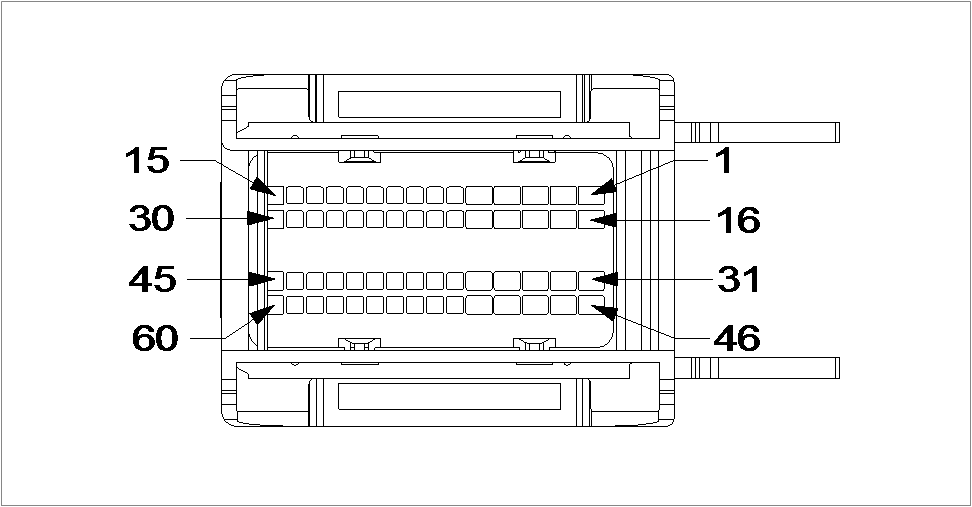

Fig 3: Module-Powertrain Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

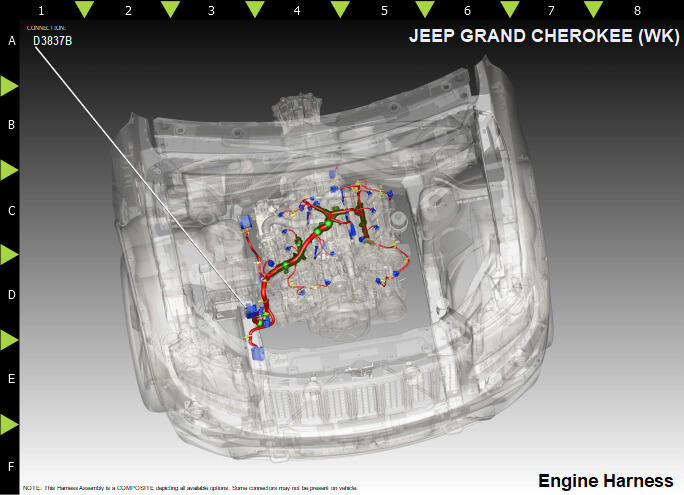

Fig 4: Module-Powertrain Control C2 Component Location View (Standard)

Courtesy of CHRYSLER

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K229	BN/BU	1.5	INJECTOR HIGH SIDE DRIVER BANK 2	N/A
2	K38	BN/OG	1.0	INJECTOR CONTROL 5	N/A
4	N117	DB/WH	0.75	INTAKE SWIRL SERVO MOTOR CONTROL	N/A
5	K945	BN/RD	0.75	ACTUATOR SWIRL END POSITION RTN	N/A
6	K351	BN/RD	0.75	5V ACTUATOR SWIRL END POSITION	N/A
8	K313	BN/YE	0.75	EGR AIR FLOW CONTROL POSITION SUPPLY	N/A
9	K834	DB/GN	0.75	EGR 5 VOLT SUPPLY	N/A
10	K668	BN	0.75	5 VOLT SUPPLY	N/A
11	K350	BN/YE	0.75	FUEL PRESSURE 5 VOLT SUPPLY	N/A
13	K844	DB/YE	0.75	CMP 5 VOLT SUPPLY	N/A
14	K44	DB/GY	0.50	CMP SENSOR SIGNAL 1/1	N/A
15	K365	DB/BN	0.75	LOW SIDE DRIVER	N/A
16	K227	BN/GN	1.5	INJECTOR HIGH SIDE DRIVER BANK 1	N/A
17	K12	BN/DB	1.0	INJECTOR CONTROL 2	N/A
19	K670	BN/BU	0.75	EGR BYPASS VALVE SIGNAL	N/A
23	K922	BN/DB	0.50	TP SENSOR RETURN	N/A
24	K934	DB/WH	0.75	EGR SENSOR GROUND	N/A
25	K690	BN/YE	0.75	COMBO PRESS AND TEMP SNSR RTN	N/A
26	K359	YE/BN	0.75	FUEL PRESSURE SENSOR GROUND	N/A
28	K944	BK/GY	0.75	CMP GROUND	N/A
29	K853	DB/BN	0.75	CRANK POS 5 VOLT SUPPLY	N/A
30	K369	BN/OG	0.75	FUEL PRESSURE 12 VOLT SUPPLY	N/A
31	K614	WH/BN	1.5	INJECTOR 4 CONTROL	N/A
32	K611	OG/BN	1.5	INJECTOR 1 CONTROL	N/A
33	K613	GY/BN	1.5	INJECTOR 3 CONTROL	N/A
34	K315	BN/GY	0.75	TTVA MOTOR (-)	N/A
35	K684	DB/YE	1.0	EGR CONTROL 2	N/A
36	G6	VT/GY	0.75	OIL PRESSURE SIGNAL	N/A
38	K22	BN/OG	0.50	TP 1 SIGNAL	N/A
39	K683	DB/GY	0.75	EGR SIGNAL	N/A
40	K37	BN/OG	0.75	BOOST PRESSURE SIGNAL	N/A
41	K181	BN/YE	0.75	FUEL PRESSURE SIGNAL	N/A
44	K925	DB/GY	0.50	CKP GROUND	N/A
45	K646	BN/YE	0.75	FUEL PRESSURE REGULATOR CONTROL	N/A
46	K638	BU/BN	1.5	INJECTOR 5 CONTROL	N/A
47	K658	GN/BN	1.5	INJECTOR 6 CONTROL	N/A
48	K612	YE/BN	1.5	INJECTOR 2 CONTROL	N/A
49	K314	BN/WH	0.75	TTVA MOTOR (+)	N/A
50	K682	DB/WH	1.0	EGR CONTROL 1	N/A
51	N0	NA	0	NO CONNECT	N/A
52	G924	VT/BN	0.75	EOT SENSOR GROUND	N/A
55	G224	VT/YE	0.75	EOT SIGNAL	N/A
56	K373	BN	0.75	EXHAUST GAS PRESSURE SENSOR SIGNAL	N/A
57	K2	VT/OG	0.50	ECT SIGNAL	N/A
58	K200	BN/YE	0.75	COOLANT TEMPERATURE SENSOR RETURN	N/A
59	K24	BN/BU	0.50	CKP SIGNAL	N/A
60	K366	BN/GN	0.75	HIGH SIDE DRIVER	N/A
