Module-Steering Column Control C2 (Standard) Connector End View (D3816B)

Harness-Family: Steering_Wheel

Color: WHITE

Gender: FEMALE

Part Number: 174463-1

Part Description:070 SRS MLC 2POS PLUG HOUSING

Connector No: D3816B

Option: Standard

Repair Kit Part Number: 68040489AA

Cavity Count: 2

Fig 1: Module-Steering Column Control C2 Connector End View (Standard)

Courtesy of CHRYSLER

Fig 2: Module-Steering Column Control C2 Isometric View (Standard)

Courtesy of CHRYSLER

Fig 3: Module-Steering Column Control C2 Wire Insertion View (Standard)

Courtesy of CHRYSLER

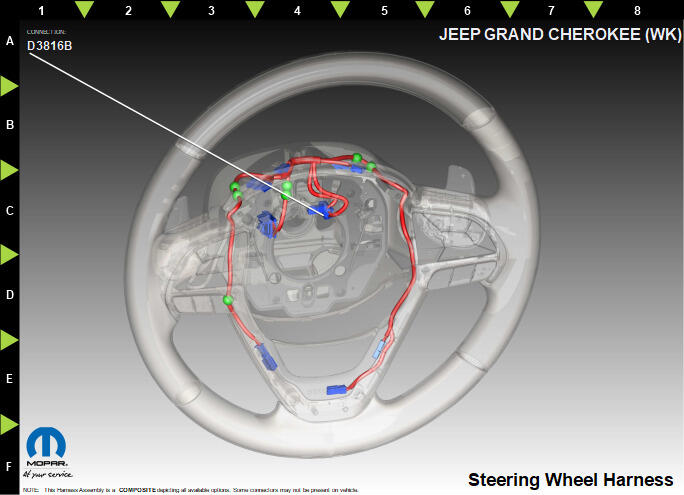

Fig 4: Module-Steering Column Control C2 Component Location View (Standard)

Courtesy of CHRYSLER
