Charging System (Service Information): Generator: Installation: 3.6L

Install the generator into the vehicle.
Install the three mounting retainers.
Tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

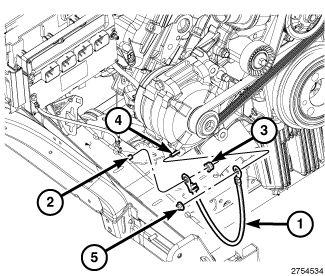

Install ground wire on mounting stud (4).
Install the lower front ground wire mounting nut (5).
Tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
Install the serpentine belt. Refer to BELT, SERPENTINE, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

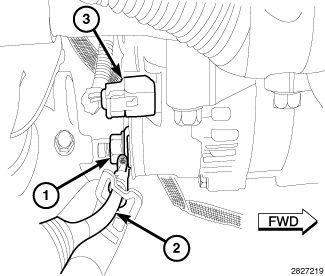

Plug in the field circuit (3) to the generator.
Connect the B+ terminal nut (1) and wire (2).
Connect the negative battery cable and tighten the nut to the proper specifications. Refer to TORQUE SPECIFICATIONS .
