Description And Operation: Description

Courtesy of CHRYSLER GROUP, LLC

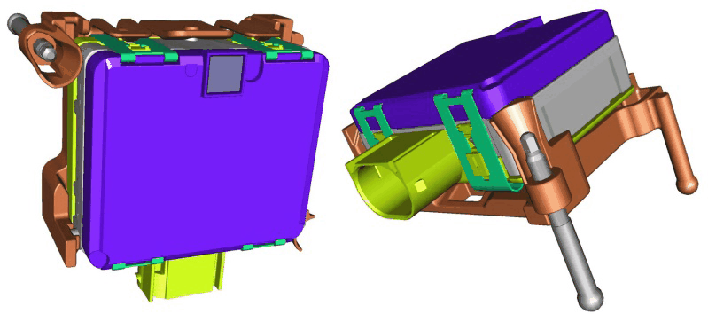

The Adaptive Cruise Control (ACC) sensor contains the software required to operate normal Cruise Control, ACC+, and Forward Collision Warning Plus (FCW+). The ACC sensor determines the distance to a target vehicle and the speed at which the target vehicle is approached. If the ACC sensor determines that intervention is required, the ACC sensor sends a message to other modules over Controller Area Network (CAN)-C to activate audible, visual and haptic warnings. The ACC sensor also sends torque requests to the Powertrain Control Module (PCM) and brake requests to the Antilock Brake System (ABS) module.

Courtesy of CHRYSLER GROUP, LLC

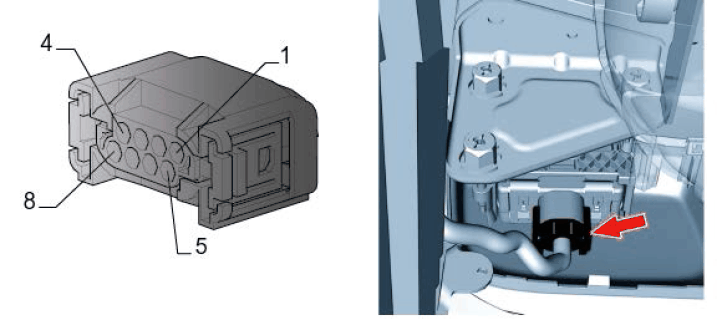

ACC pinout

1. Ground
2. CAN 1 H
3. CAN 1 L
4. N.C.
5. Private CAN
6. Private CAN
7. N.C.
8. 12 V power supply
