Removal And Installation: Installation

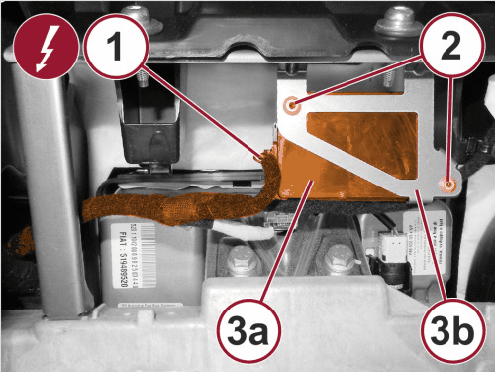

GC0173938Courtesy of CHRYSLER GROUP, LLC
  1. Position the compass module (3a) into the bracket (3b) and install the appropriate fasteners (2).
  2. Connect the compass module wire harness connector (1).
  3. Install the instrument panel glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
