Removal And Installation: Installation

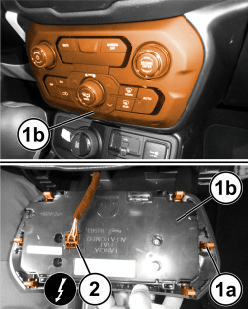

GC0183846Courtesy of CHRYSLER GROUP, LLC
  1. Position the ICS (1b) to the instrument panel and connect the wire harness connector to the ICS (2).
  2. Install the ICS (1b) into the instrument panel. Be certain the ICS retaining tabs (1a) fully engage the instrument panel.
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
