Removal And Installation: Removal

NOTE:

LHD shown in illustration, RHD similar.

multimedia:A supplement to the article is available.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0189277Courtesy of CHRYSLER GROUP, LLC

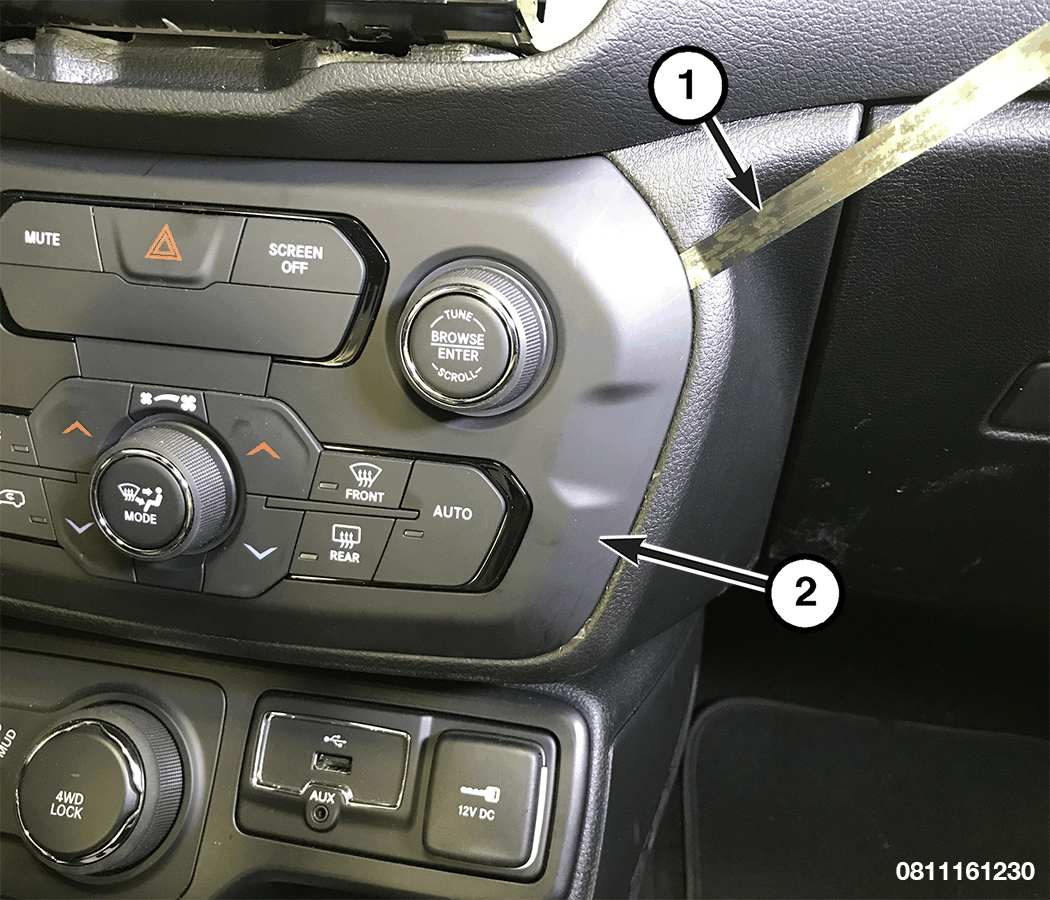

  2. The tolerance between the Integrated Center Stack (ICS) and the instrument panel is very tight, so to avoid damage to the I/P the use of a feeler gauge (1) or equivalent is needed to release the ICS (2) enough to get a trim stick behind the ICS.
    GC0189871Courtesy of CHRYSLER GROUP, LLC

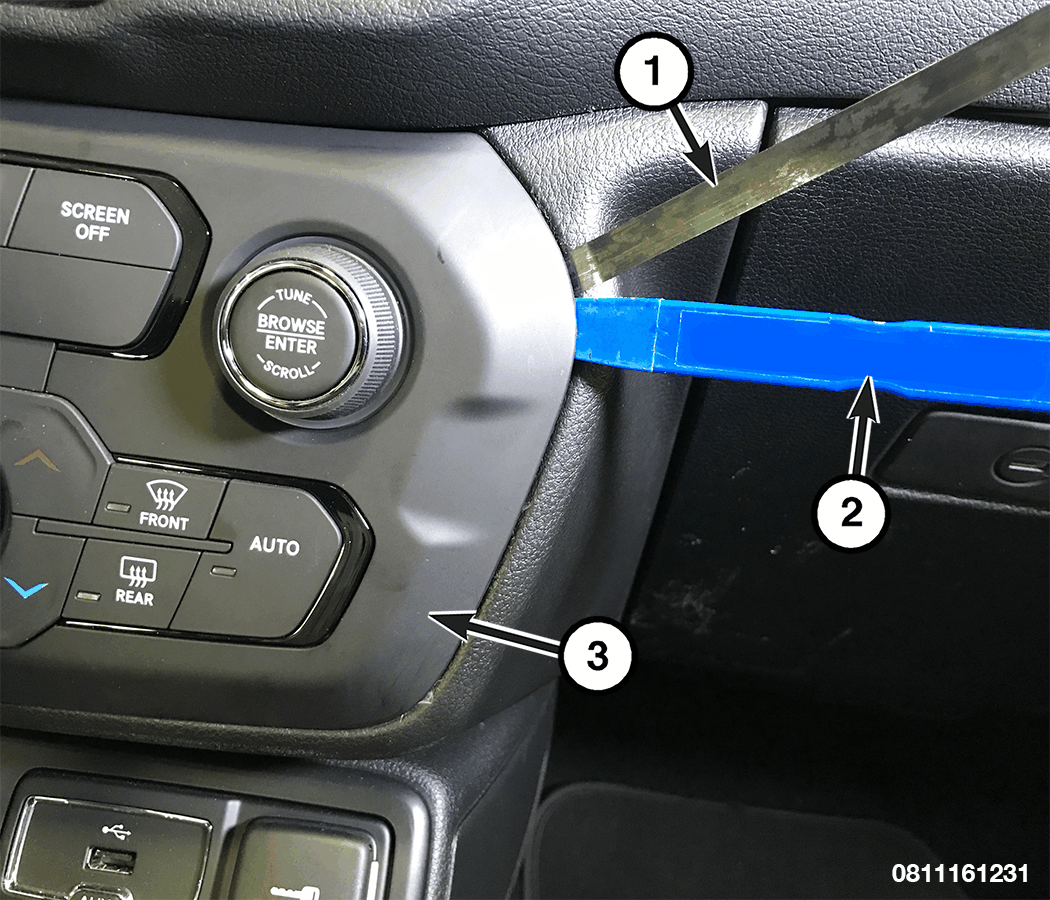

  3. After the trim stick (2) is inserted behind the ICS (3), release the retaining clips and partially remove the ICS.
    GC0190126Courtesy of CHRYSLER GROUP, LLC

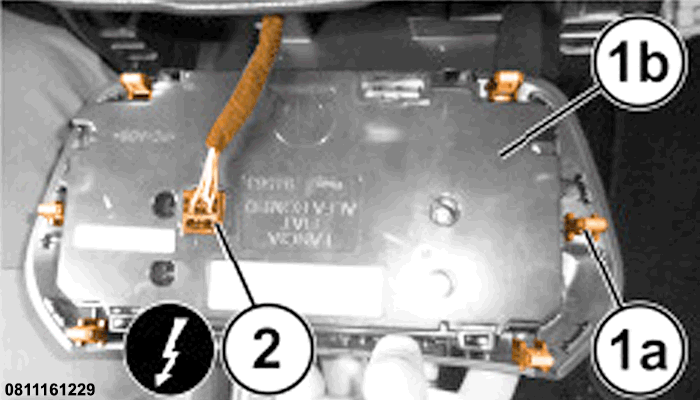

  4. Disconnect the ICS wire harness connector (2) from the ICS (1b).
  5. Remove the ICS (1b) from the vehicle.
