Fan, Cooling: Removal: 3.2L

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the pressurized coolant bottle. Refer to BOTTLE, PRESSURIZED COOLANT, REMOVAL .
  3. Remove the hood latch and cables. Refer to LATCH, HOOD, REMOVAL .
    GC0186745Courtesy of CHRYSLER GROUP, LLC

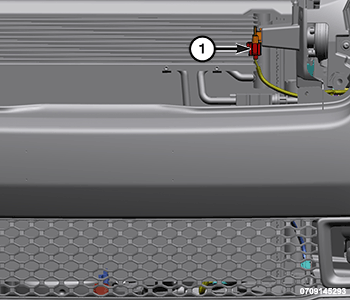

  4. Disconnect the ambient temperature sensor wire harness connector (1).
    GC0186806Courtesy of CHRYSLER GROUP, LLC

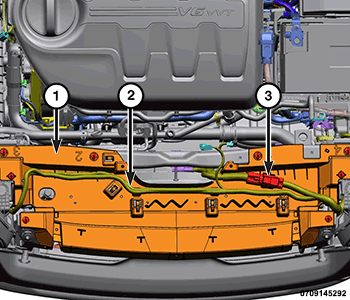

  5. Disconnect the cooling fan wiring harness connectors (3) and remove the wire harness (2) from upper radiator panel (1).
    GC0187065Courtesy of CHRYSLER GROUP, LLC

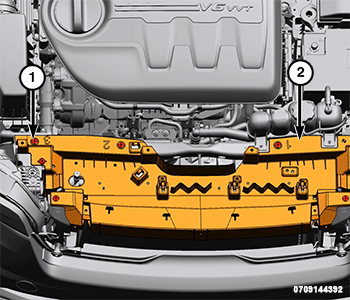

  6. Remove the screws (1) and the upper radiator panel (2).
    GC0186591Courtesy of CHRYSLER GROUP, LLC

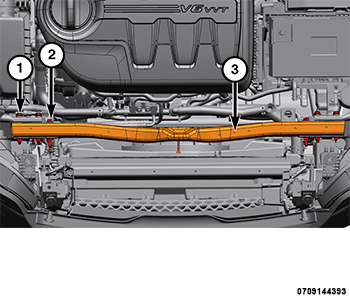

  7. Remove the six bolts (1, 2) and the upper core support (3).
    GC0186869Courtesy of CHRYSLER GROUP, LLC
  8. Remove the upper radiator hose (1).
    GC0186868Courtesy of CHRYSLER GROUP, LLC

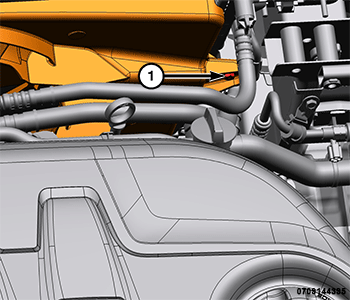

  9. Remove the right bolt (1) that secure the cooling fan to the radiator.
    GC0186541Courtesy of CHRYSLER GROUP, LLC

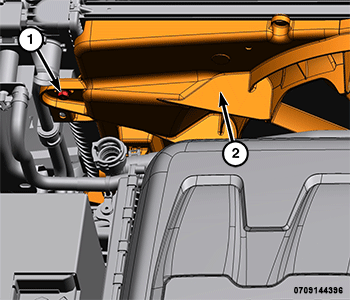

  10. Remove the left bolt (1) and the cooling fan (2) from the vehicle.
