Radiator, Engine Cooling: Installation: 3.2L

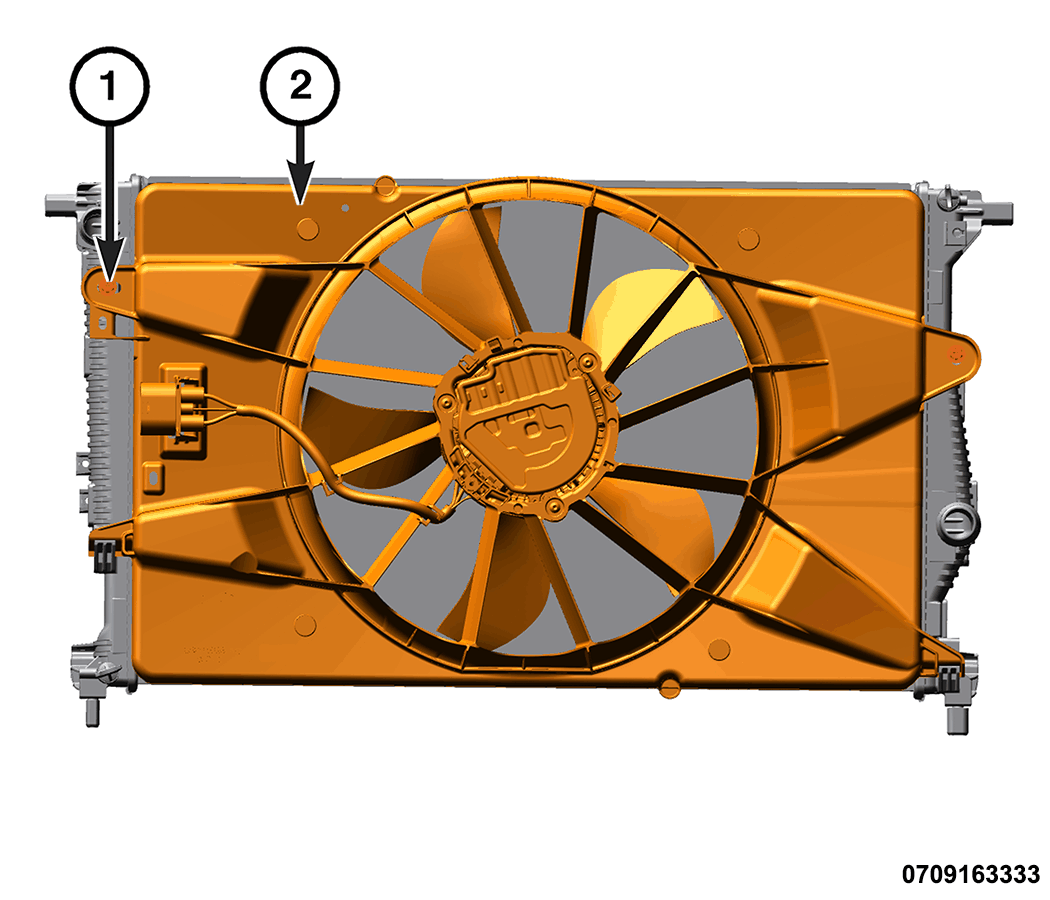

GC0192237Courtesy of CHRYSLER GROUP, LLC
  1. If removed, position the cooling fan (2) to the radiator and tighten securely the fasteners (1).

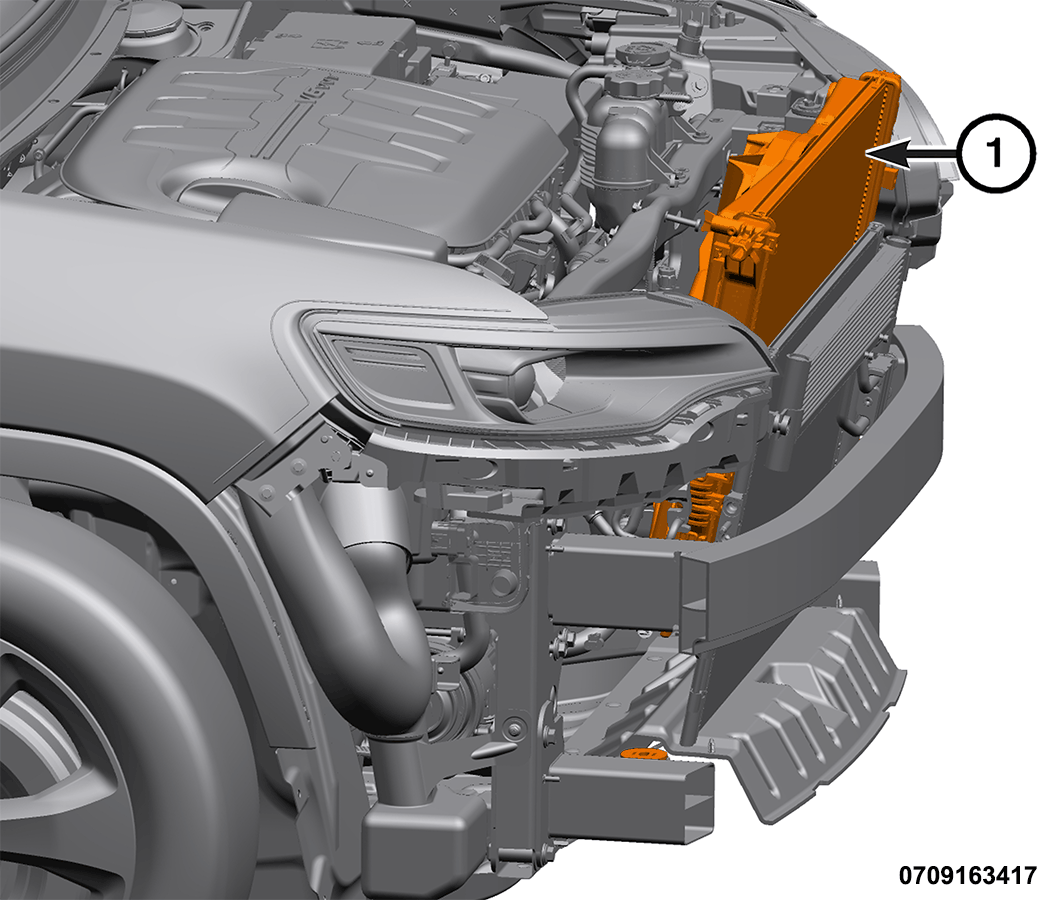

    GC0192253Courtesy of CHRYSLER GROUP, LLC
  2. Lower the radiator (1) into position.

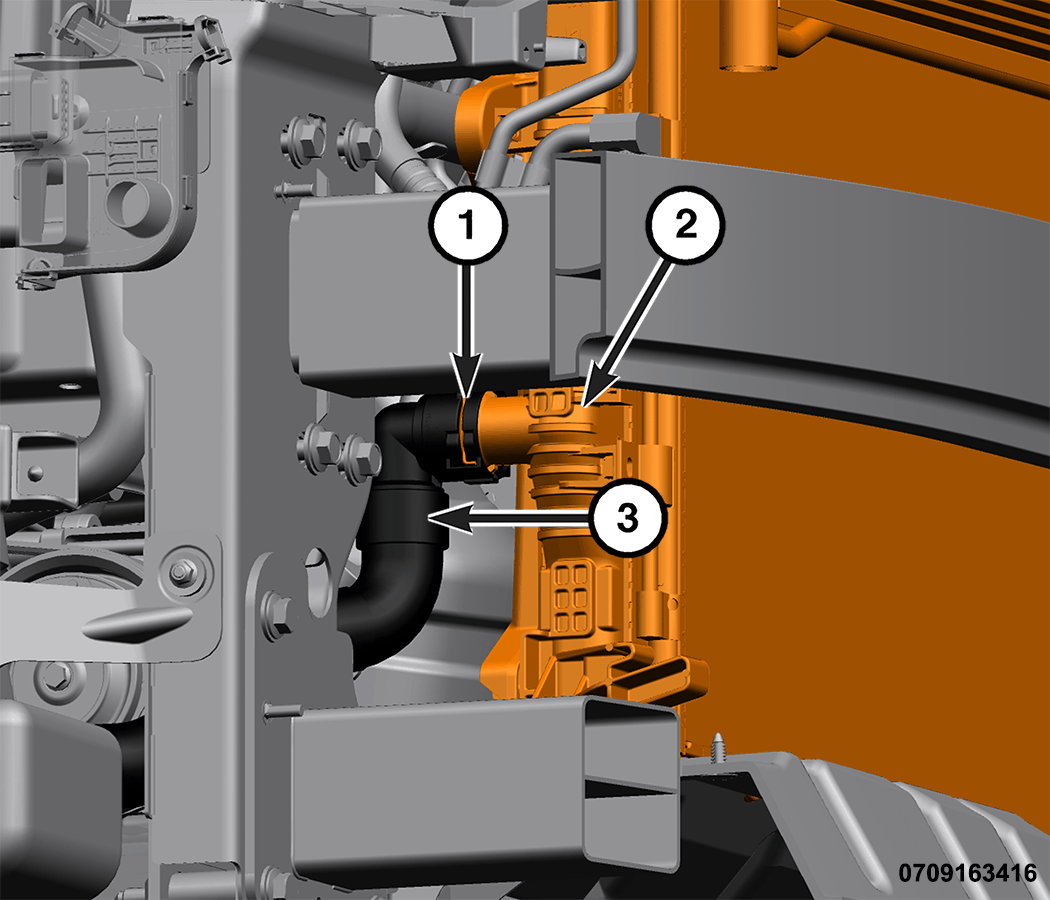

    GC0192252Courtesy of CHRYSLER GROUP, LLC
  3. Connect the lower radiator hose (3) to the radiator (2) and verify the quick connect (1) is properly secured.

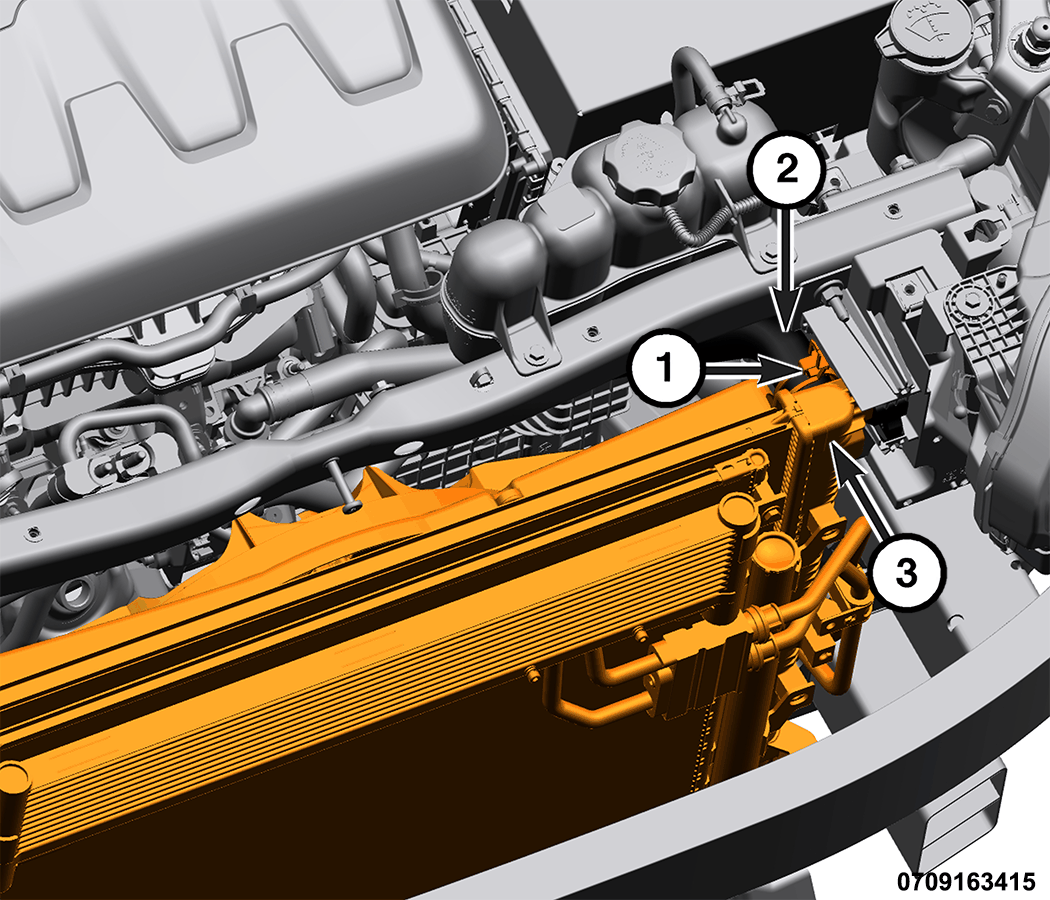

    GC0192240Courtesy of CHRYSLER GROUP, LLC
  4. Connect the upper radiator hose (2) to the radiator (3) and correctly position the clamp (1).

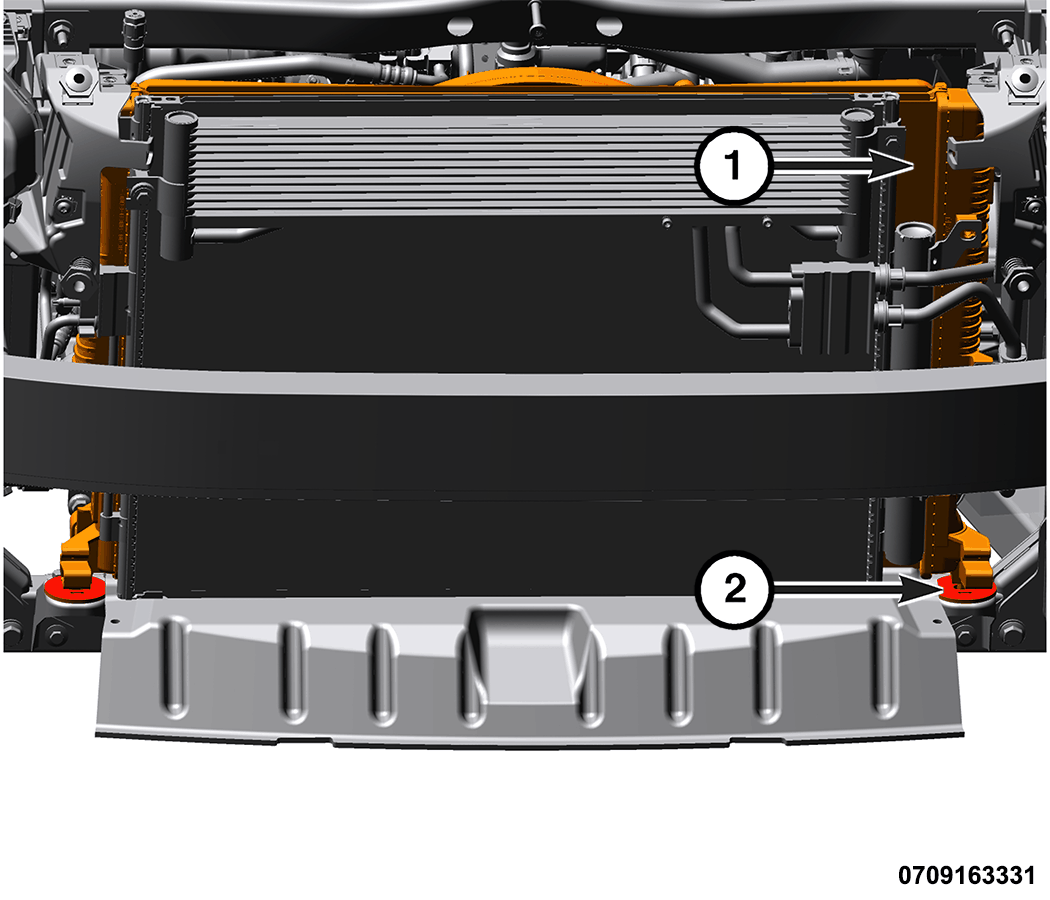

    GC0192220Courtesy of CHRYSLER GROUP, LLC
  5. Verify that the radiator (1) is seated into the lower mounts (2).

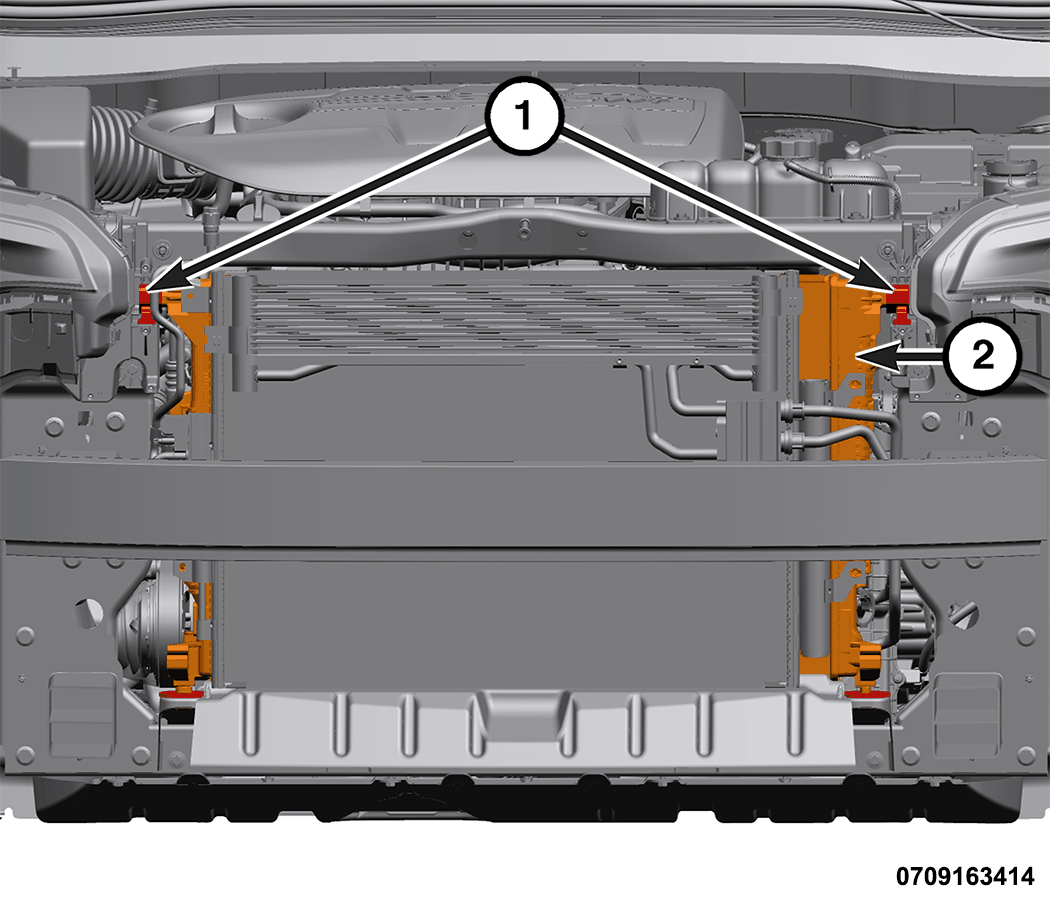

    GC0192241Courtesy of CHRYSLER GROUP, LLC
  6. Install the upper radiator isolators (1) to the radiator (2) and position the radiator into the mount.

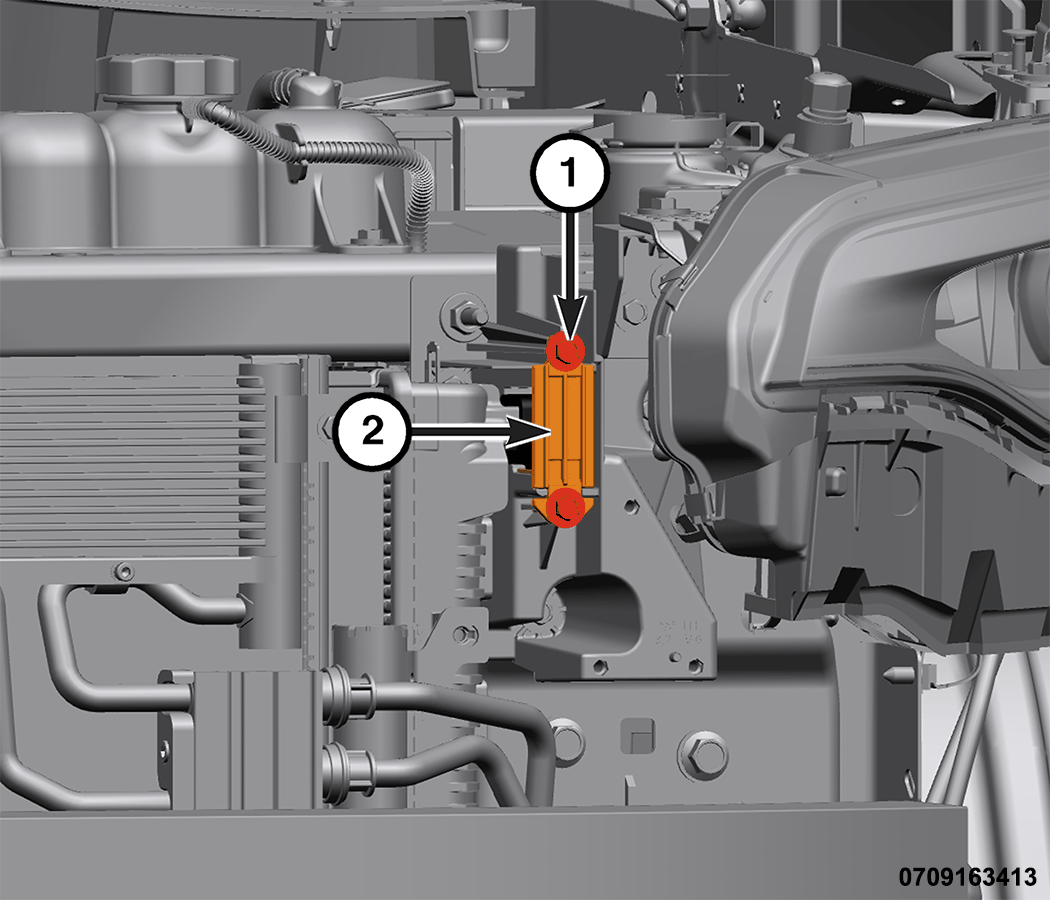

    GC0192275Courtesy of CHRYSLER GROUP, LLC
  7. Install the upper left side radiator mount cover (2) and tighten the fasteners (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

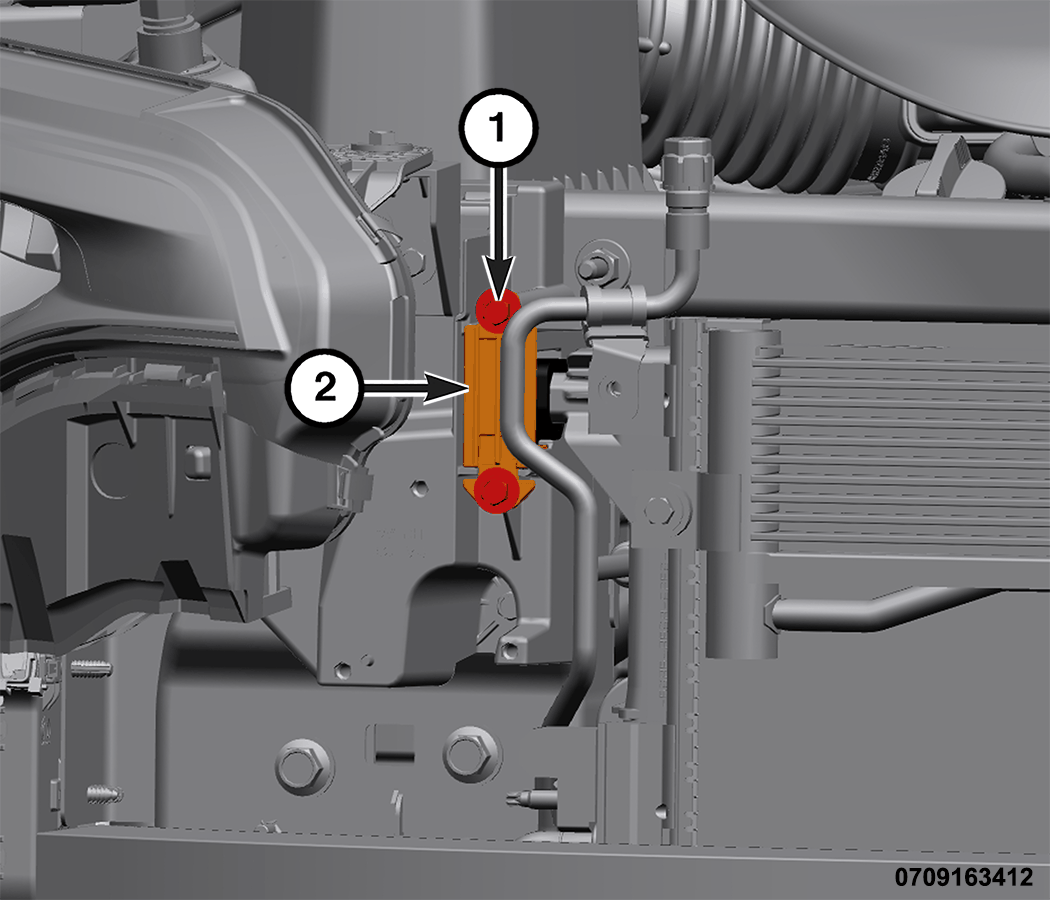

    GC0192216Courtesy of CHRYSLER GROUP, LLC
  8. Install the upper right side radiator mount cover (2) and tighten the fasteners (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

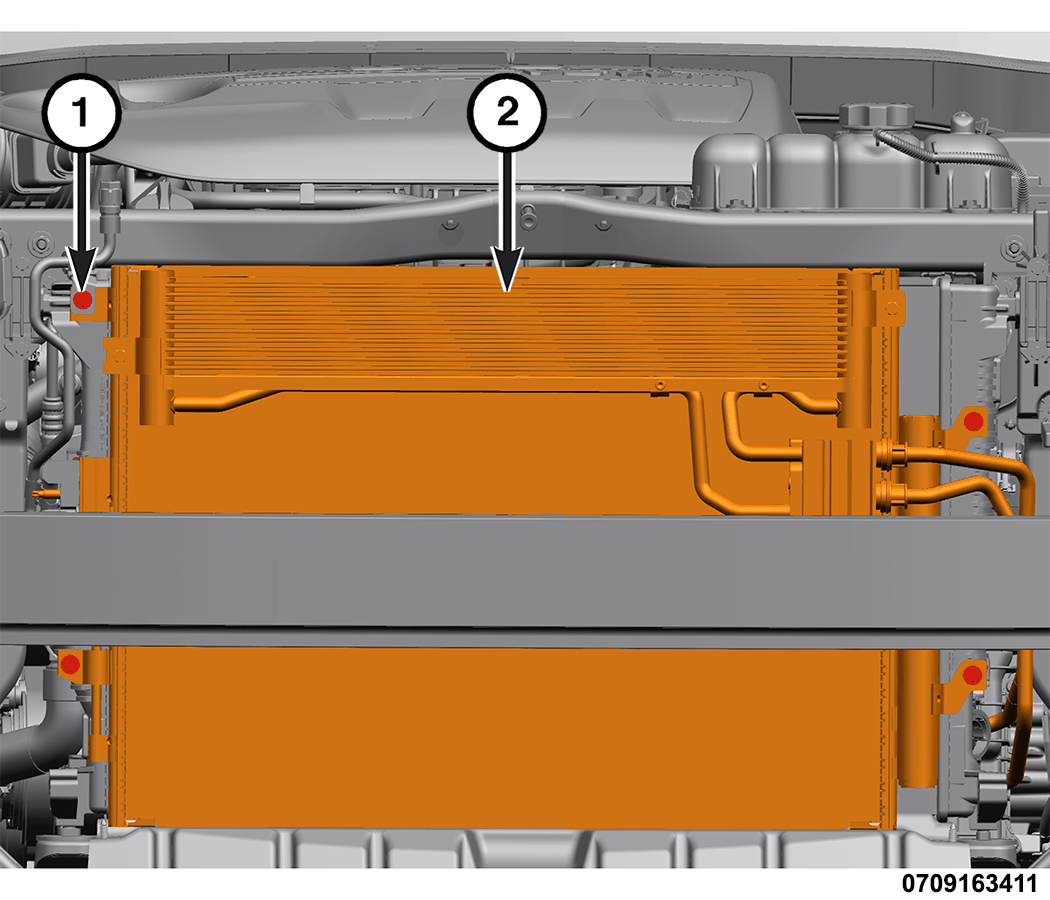

    GC0192229Courtesy of CHRYSLER GROUP, LLC
  9. Install the condenser and transmission oil cooler (2) to the radiator and tighten the fasteners (1) to the proper specifications. Refer to TORQUE SPECIFICATIONS - 3.2L  .

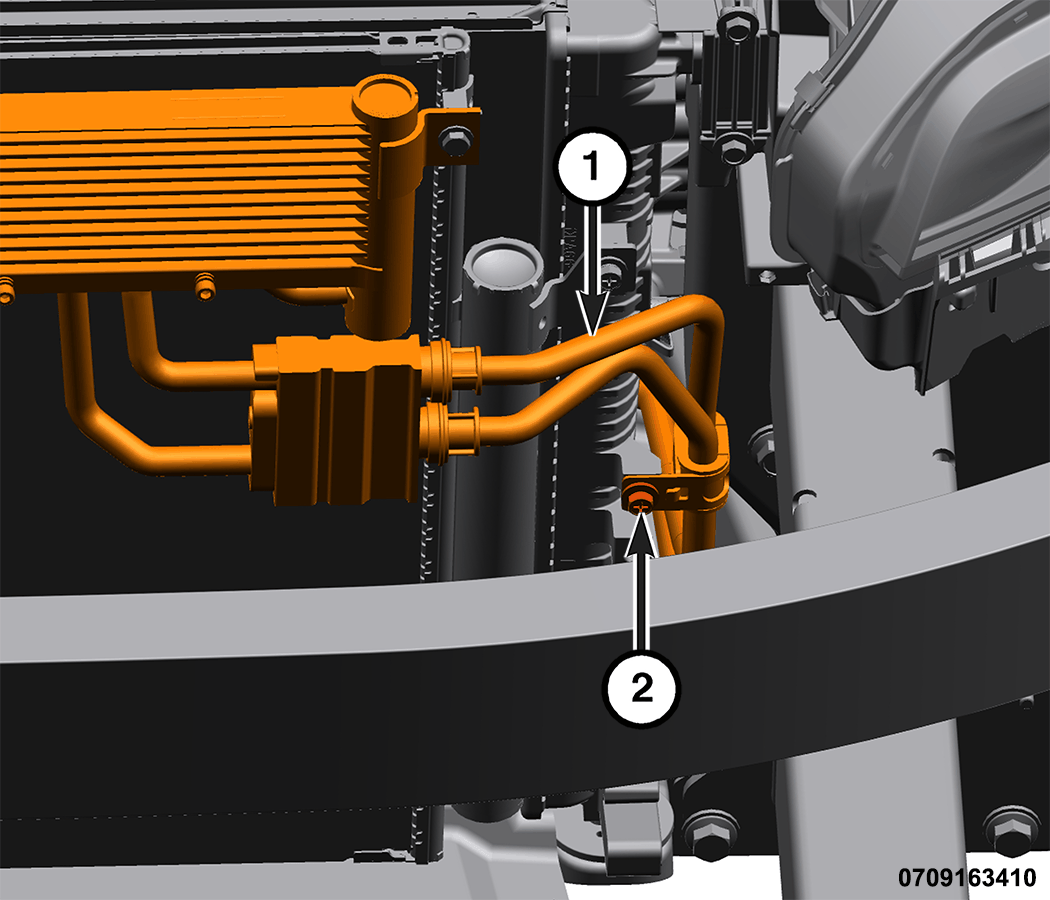

    GC0192215Courtesy of CHRYSLER GROUP, LLC
  10. Position the transmission cooler lines (1) and securely tighten the fastener (2).

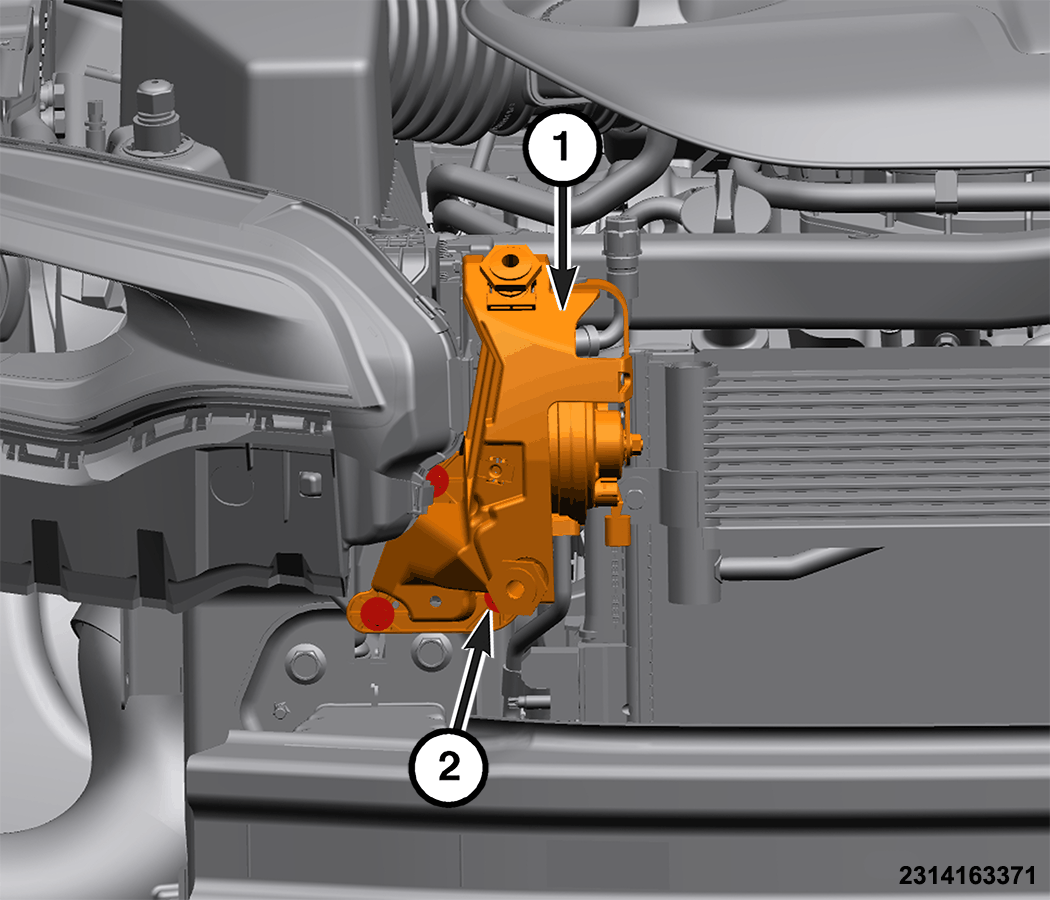

    GC0192228Courtesy of CHRYSLER GROUP, LLC
  11. Install the right hood support bracket (1) and tighten the fasteners (2) securely.

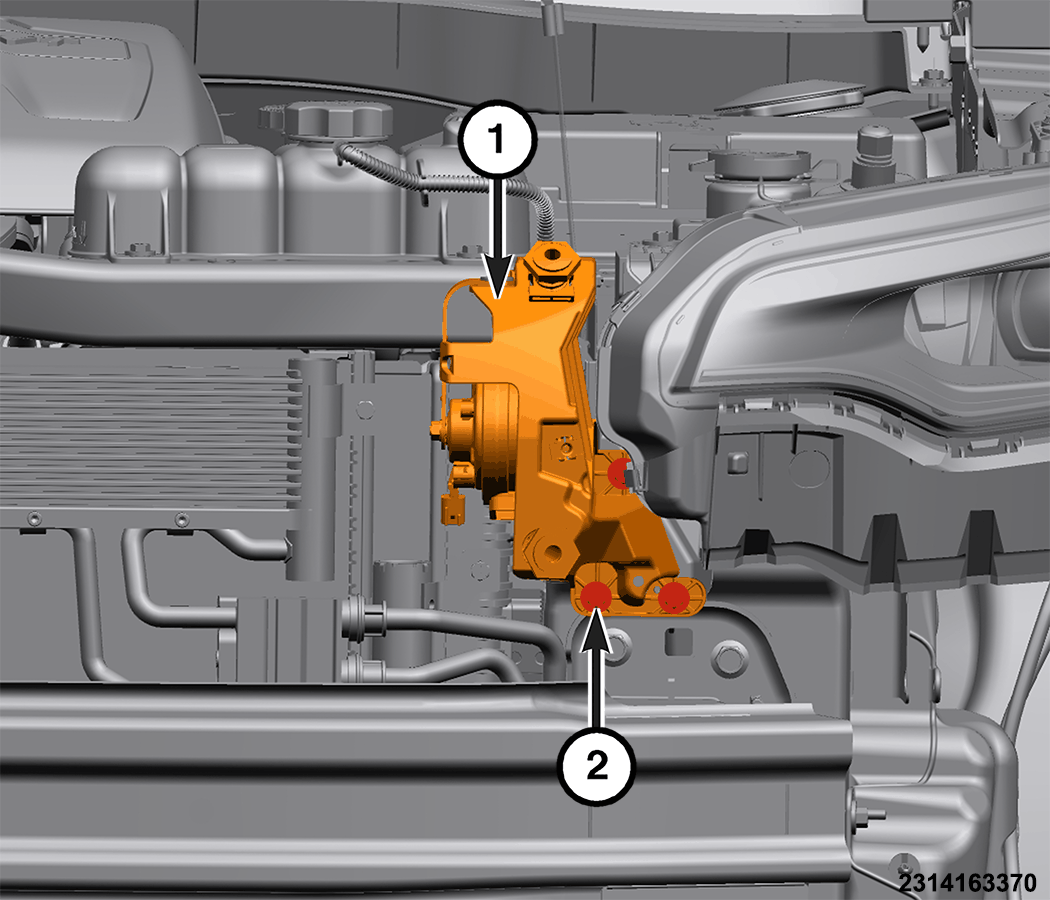

    GC0192235Courtesy of CHRYSLER GROUP, LLC
  12. Install the left hood support bracket (1) and tighten the fasteners (2) securely.

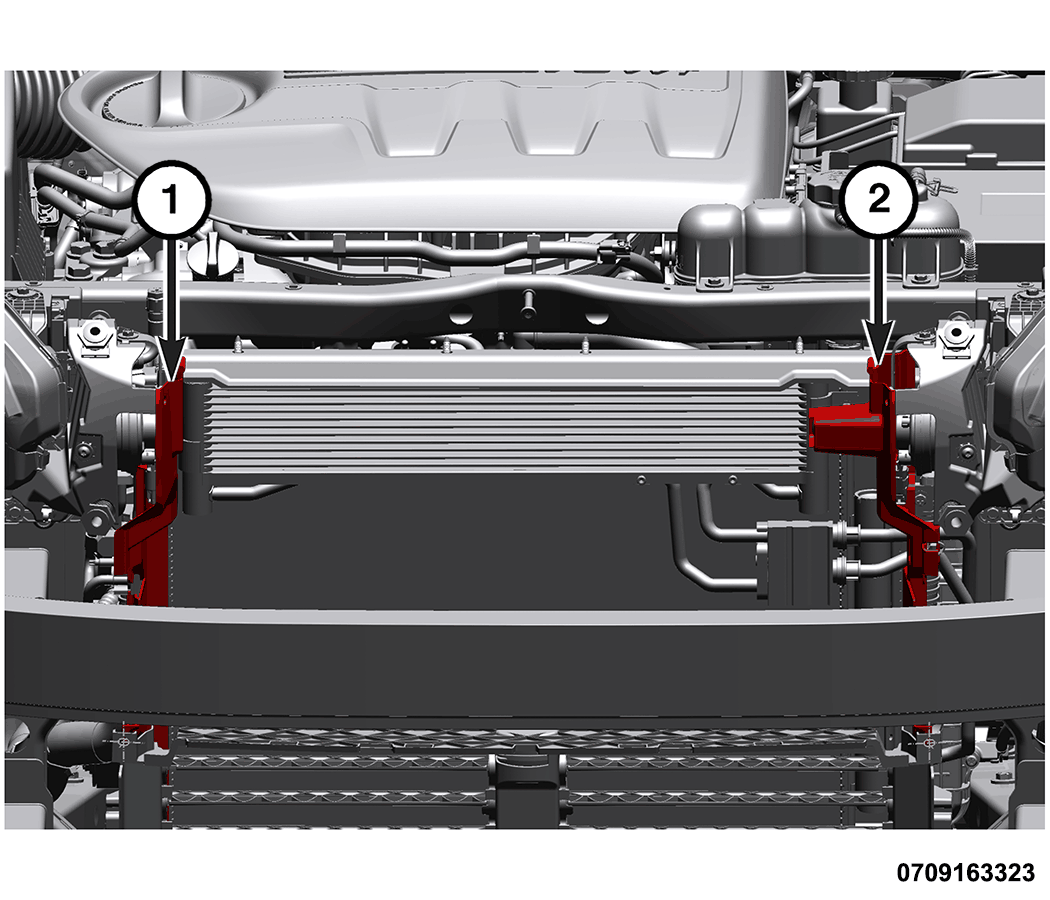

    GC0192255Courtesy of CHRYSLER GROUP, LLC
  13. Install the left (2) and right (1) radiator closure panels.

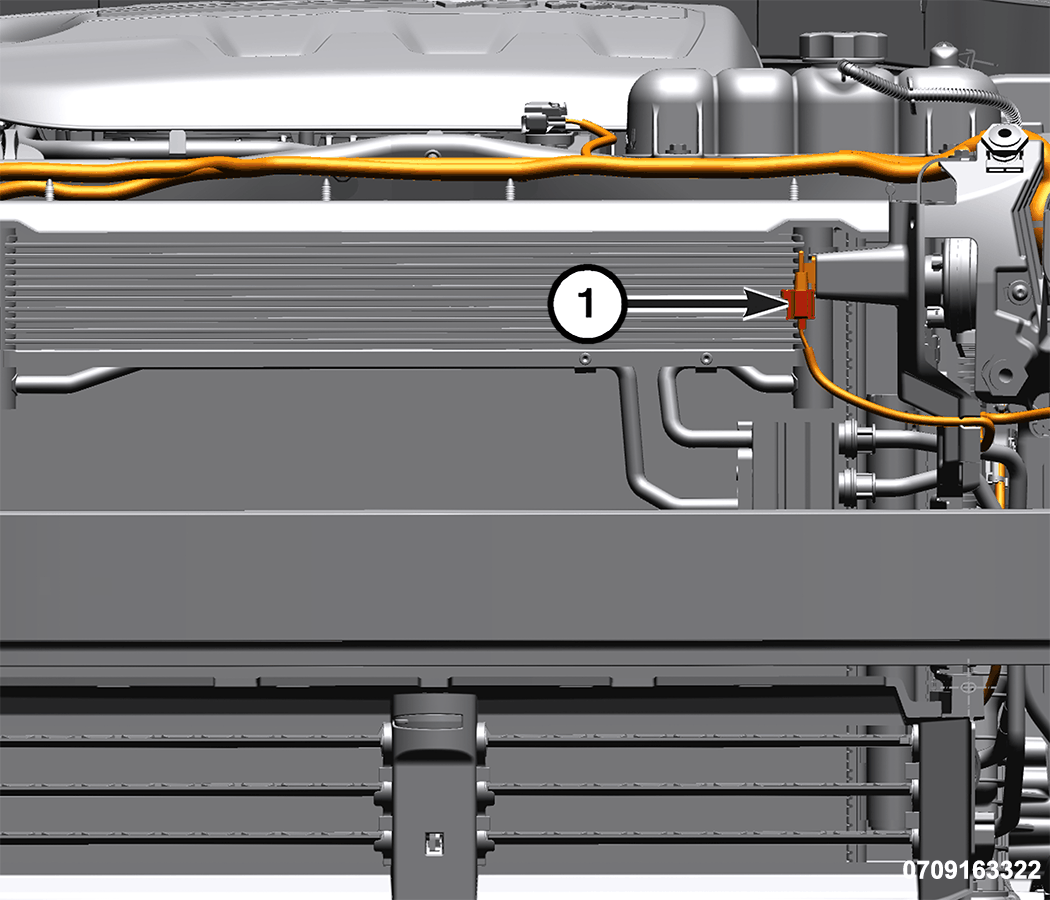

    GC0192250Courtesy of CHRYSLER GROUP, LLC
  14. Connect the ambient temp sensor (1) attached to the left radiator closure panel.

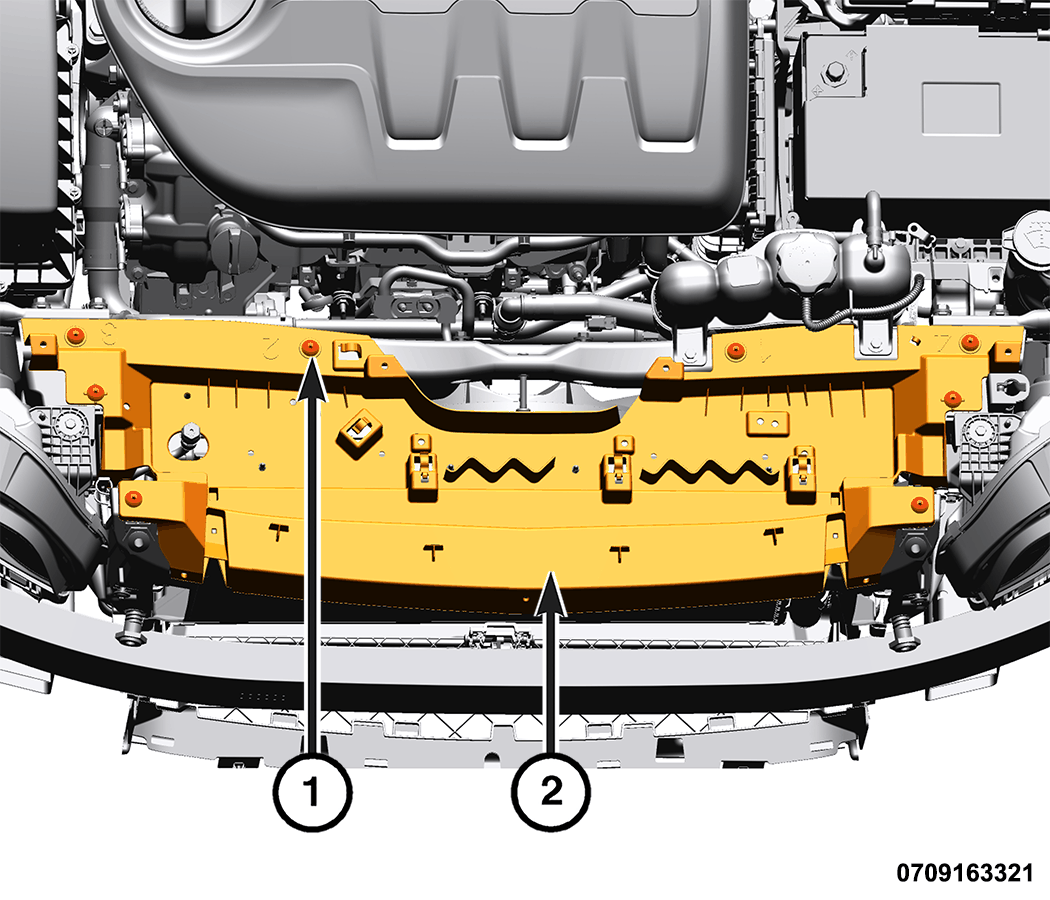

    GC0192219Courtesy of CHRYSLER GROUP, LLC
  15. Install the upper radiator cover (2) and securely tighten the fasteners (1).

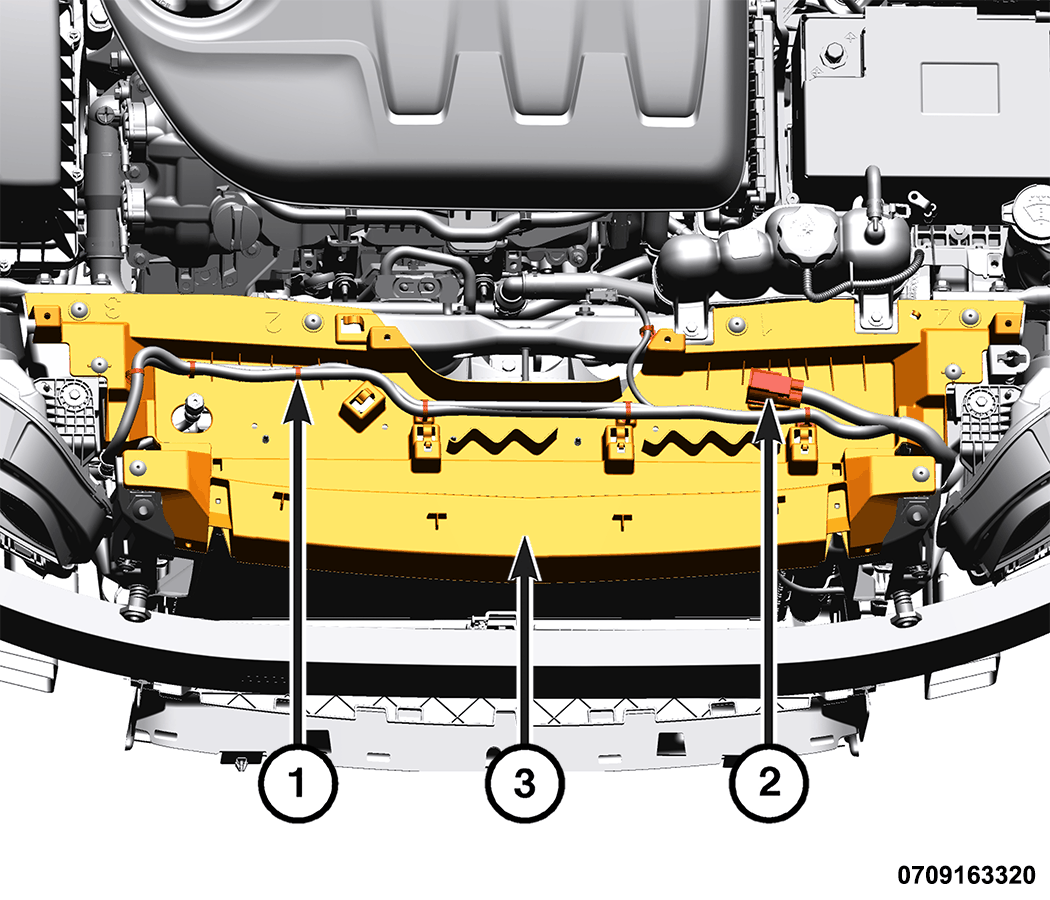

    GC0192256Courtesy of CHRYSLER GROUP, LLC
  16. Position the wire harness to the upper radiator cover (3).
  17. Connect the wire connector (2) and secure the wire harness retainers (1).
  18. Install the front facia. Refer to FASCIA, FRONT, INSTALLATION .
  19. Remove the support and lower the vehicle.
  20. Evacuate and fill the cooling system. Refer to STANDARD PROCEDURE  .
  21. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
