Capacitor, Ignition: Installation: 2.4L

GC0186694Courtesy of CHRYSLER GROUP, LLC

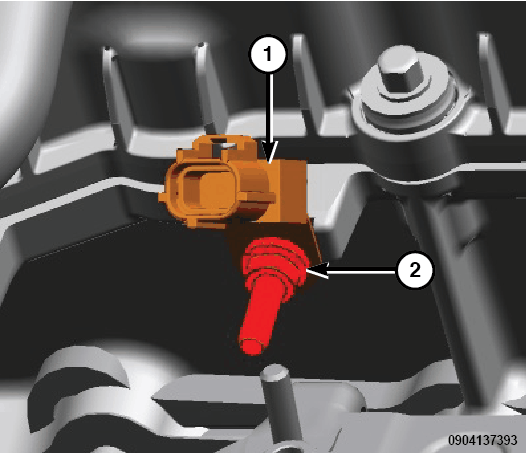

  1. Install the ignition capacitor (1) to the front of the cylinder head and tighten the stud bolt (2) to the proper specifications. .
    GC0186854Courtesy of CHRYSLER GROUP, LLC

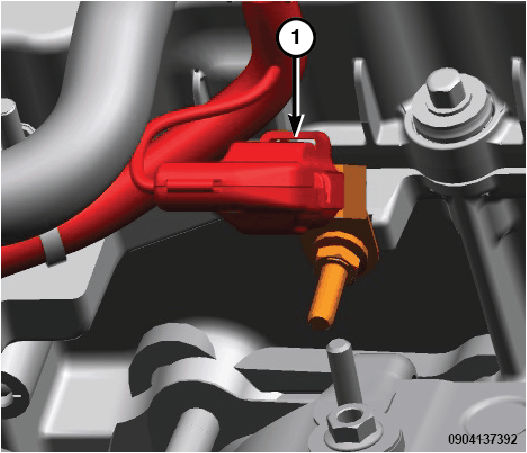

  2. Connect the wire harness connector (1).
    GC0186398Courtesy of CHRYSLER GROUP, LLC

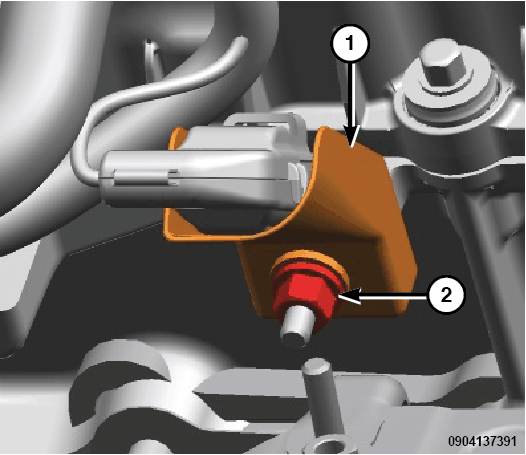

  3. Install the capacitor heat shield (1) and tighten the nut (2) to the proper specifications. .
  4. Install the engine cover. .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
